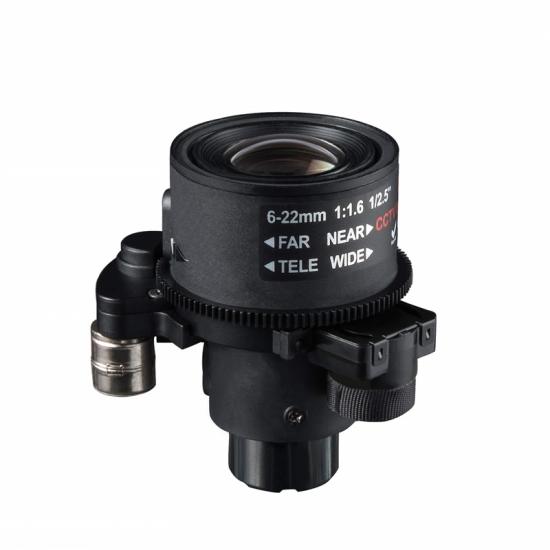

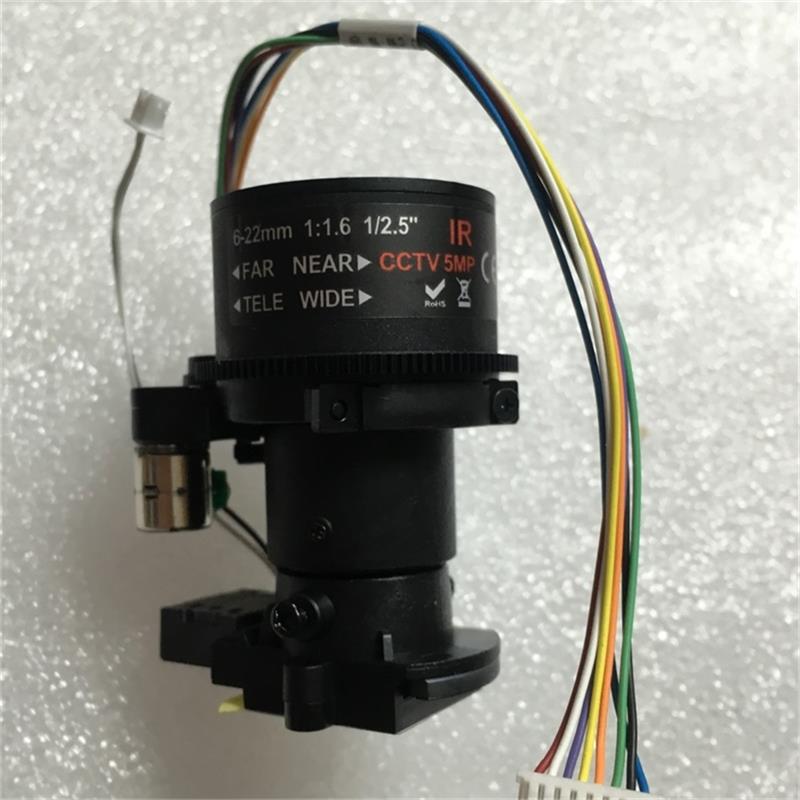

Product name: 6-22mm CCTV D14 mount stepper motor (Zoom Lens Motor ) Varifocal Motorized Lens
Product Advantage:
1, Classical 3.6X Zoom 6-22mm motorized varifocal Lens for CCTV Camera
2, Full 9 Glass Lenses design insure top quality optical performance
3, Starlight F1.6 and Fast Focus good for Varifocal IP Network Camera
4, Remove and correct unexpected spherical aberration by using asperical Lenses
5, Low Cost varifocal Lens and all materials are Made in China
Product Specification

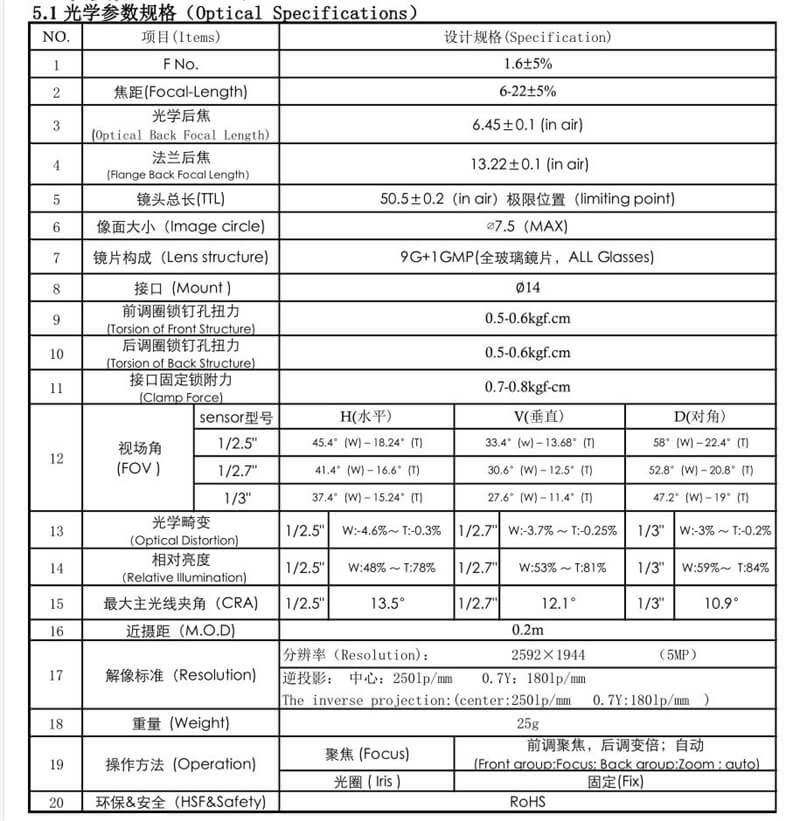

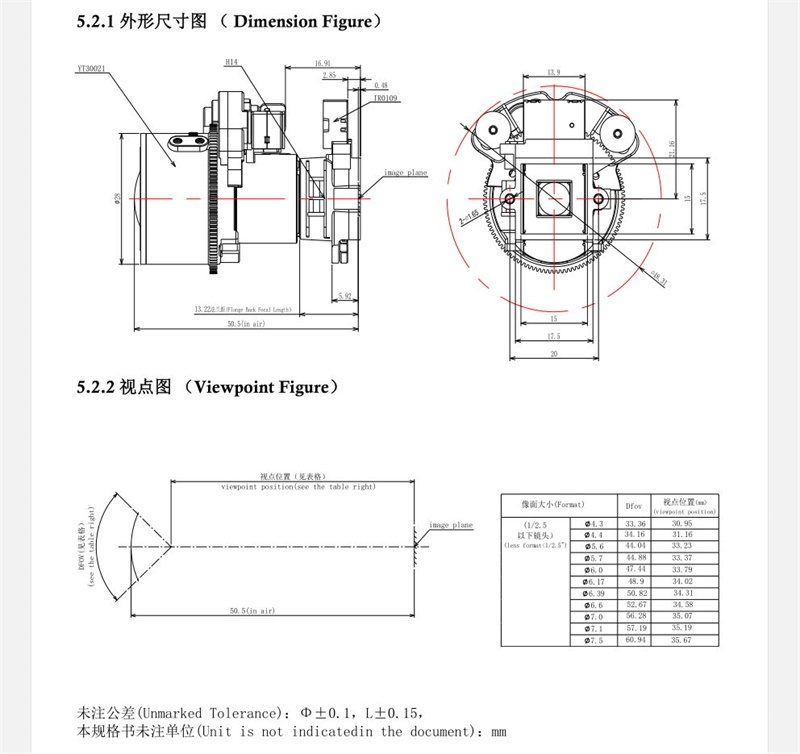

optical specification of 6-22mm CCTV Varifocal Motorized lens
1, Focal length: 6-22±5%
2, Aperture F/No: 1.6±5% Zoom Lens Aperture
3, Optical back focal length (OBFL): 6.45±0.1 (in air)
4. Flange back focal length (MBFL): 13.22±0.1 (in air)
5. TTL: 50.5±0.2（in air）（limiting point)
6, Max image circle: ∅7.5（MAX)
7, Lens structure: 9G+1GMP(ALL Glasses)
8, Mount type: ∅14
9, Clamp Force 0.7-0.8kgf-cm
0.5-0.6kgf.cmTorsion of Front Structure/Torsion of Back Structure
10, FOV (D/H/V)1/2.5"
HFOV 45.4°(W)﹣18.24°(T)
VFOV 33.4°(w)﹣13.68°(T)
DFOV 58°(W)﹣22.4°(T)
11, Optical Distortion 1/2.5"W:-4.6%～ T:-0.3%,
1/3"W:-3% ～ T:-0.2%
12, Relative illumination 1/2.5"W:48% ～ T:78%,
1/3"W:59%～ T:84%
13, CRA: 1/2.5" 13.5°, 1/3"10.9°
14, M.O,D.: 0.2 meter
15, MTF resolution: 2592×1944 （5MP）

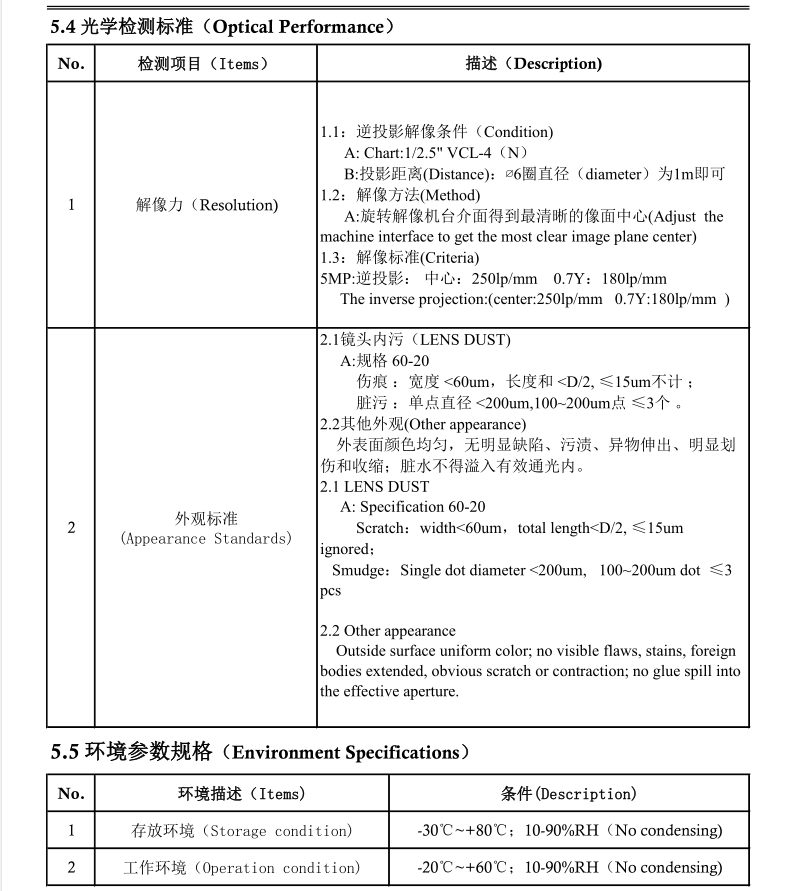

The inverse projection:(center:250lp/mm 0.7Y:180lp/mm )
16, Focus operation: Front group:Focus;
Back group:Zoom ; auto
Iris operation: Fixed
17, HSF&safety: RoHS
18, Net weight: 38 gram

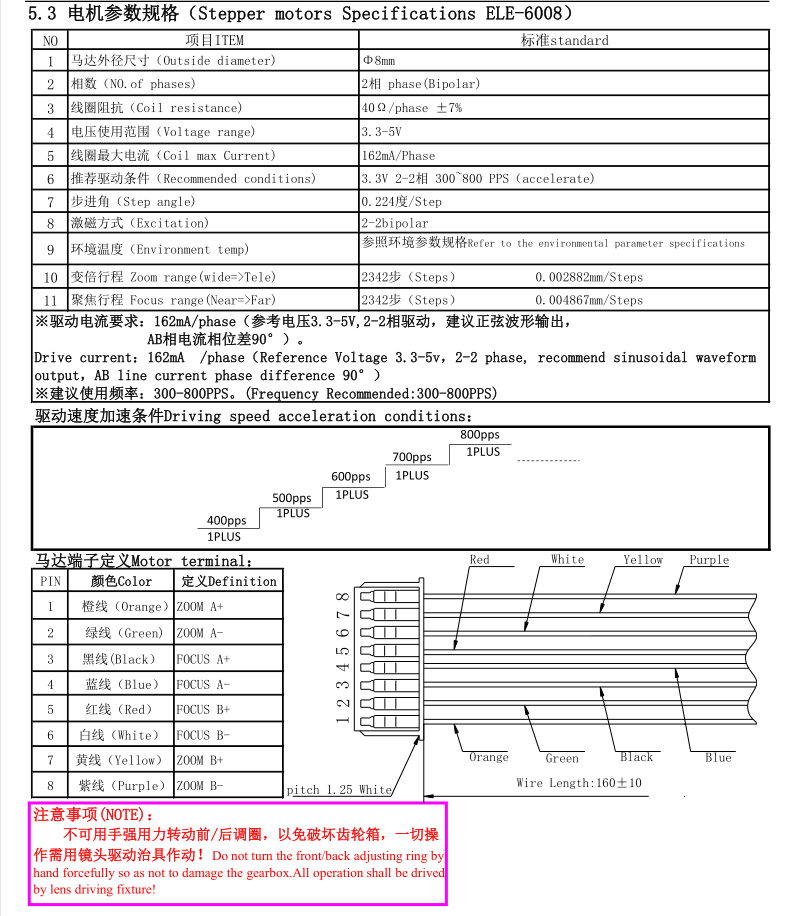

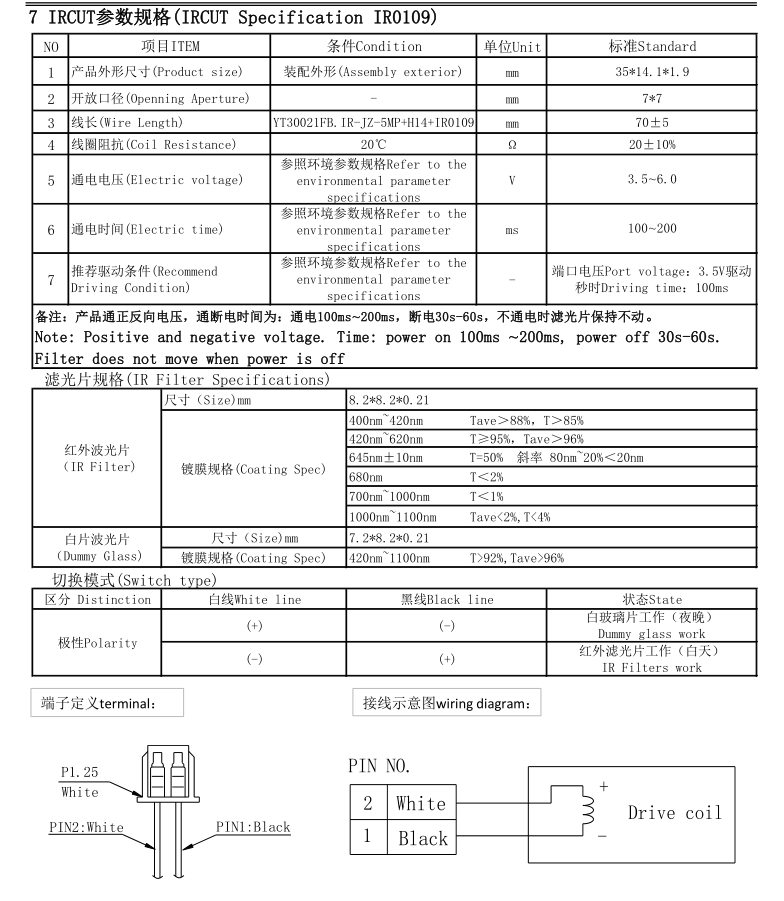

Technical datasheet of 6-22mm Zoom Lens
Product Application
1, Varifocal CCTV Camera Lens
2, Mini High Speed Camera Lens
3, Outdoor PTZ Camera Lens
4, Varifocal IP Network Camera Lens
5, CCTV Dome Zoom Camera Lens
6，Vari-Focal Surveillance camera Lens
7, Night Vision Camera Lens, CCTV Night Cameras Lens
8, Motorized AHD Camera Lens
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
About US
we are China professional CCTV Camera Lens, Motorized Varifocal Lens and Zoom Camera Module Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. currently we have various Varifocal Motorized Lens for sale 2.7-12mm, 2.7-13.5mm, 2.8-12mm, 6-22mm, 2.8-8mm, 5-50mm, 2.7-10mm 4K Varifocal Motorized Lens，3.6-11mm 1/1.8 large format Varifocal zoom lens,2.8-13.5mm 4K CCTV Zoom Lens.etc, you source " Motorized Varifocal Lens" online goobuylens or inquire us right now to get most suitable lens for your projects, thank you
