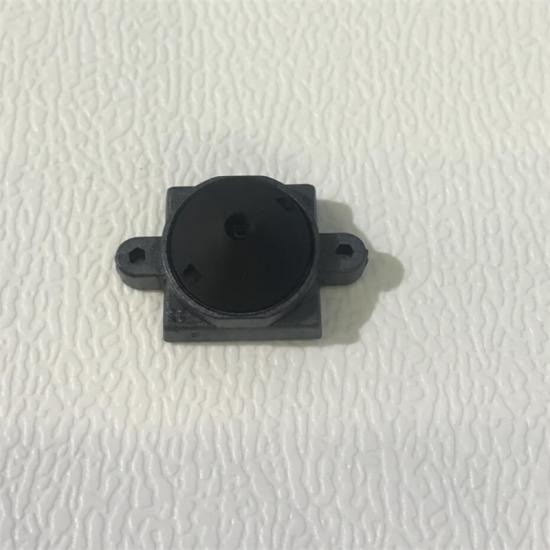

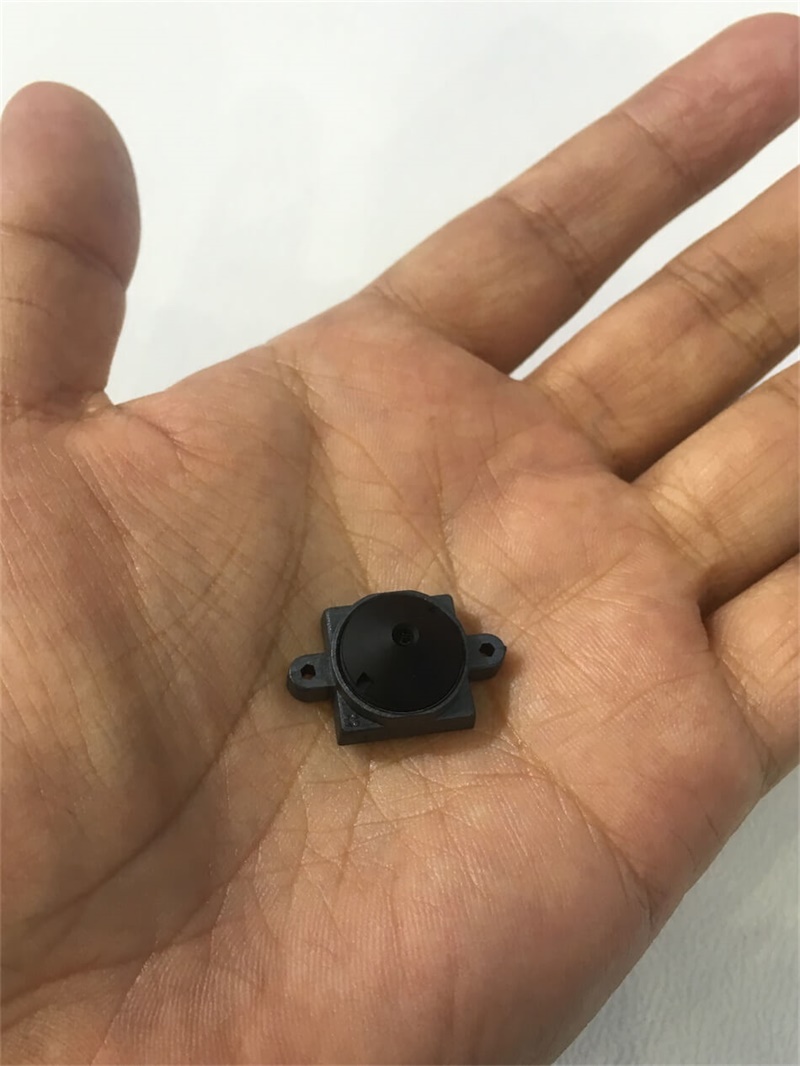

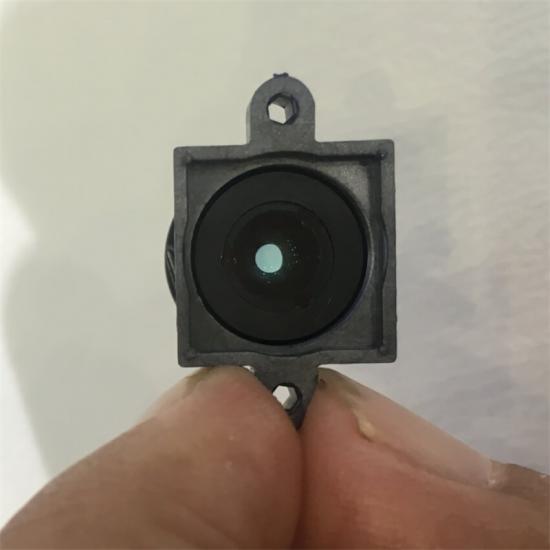

Product Name: 1/2.7'' EFL 4.65mm m9 3G glass cctv camera pinhole lens
Product Advantage
1, m9 Compact structure, excellent optical performance
2, 720p M9 Pinhole Mini Lens
3, Widely used in multiple field ( see as following)
Product Specification
keying technical feature of 4.65mm m9 lens
1，TTL: 8.45mm
2, EFFECT Focal length: 4.65mm
3, Aperture F/No: F2.8
4, Max image circle: 6.9
5, FOV (D/H/V): DFOV 72 degree
6, mount type: M9*P0.5
7, Lens construction: 3G+1MG
8, IR Coating: T=50%@650+/-8nm
9, working temperature: -40 to +80 degree
10, storage temperature: -40 to +90 degree
11, diameter of lens cap: C14
12, matching cmos sensor: 1/2.7"
Product Application
1，Lens for Mini Video Camera
2, Lens for consume electronics product
3, Lens for Car camera Cabin
4, Lens for Mini recorder
5, Lens for car black box dual lens
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera, their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too.
welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
