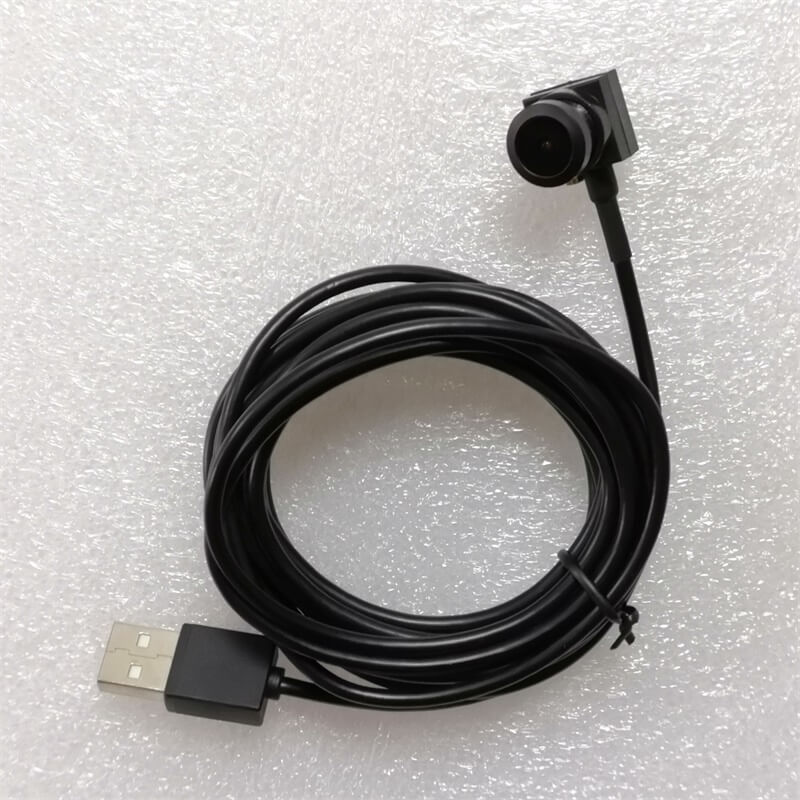

Product Name: Multi-functional Home Security / Commercial and Industrial Miniature USB Camera With Low-light HD good Night Vision
and Wide Angle Viewing
Product Advantage:
1, 1080P Super Night Vision USB Camera monitor Machine and Equipments day and Night, plug and play
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Fisheye/low distortion/Night Vision Lenses freely, Smallest Interchangeable lens camera
3, Support Linux USB Camera System and all Windows and Apple and Andriod O/S well
4, Something change Can be customized or ODM based on your requirements
Product Specifications Of Miniature USB Camera
|
Product Name |
150 degree USB Camera For Machine |
|
Cmos Sensor |
GalaxyCore GC2053 ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 150degree, HFOV 135degree |
|
Photo Pixel |
5Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
2.96mm |
|
Lens Construction |
5MP 2G5P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.001LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Built in Microphone, Support |
|
System Sync |
internal |
|
Power consumption |
150mA |
|
Product Size |
15*15*21mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
3Meter ( 1M or other size custom available ) |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change our other focal length M12 board lens include but not only 5MP Lens,
190 degree Fisheye Lens, Button Lens, Pinhole Lens, Low Distortion Lens, Black light F1.0 Lens,
4mm/6mm/8mm security lens, Telephoto Lens etc to meet your special requirement of projects
2, We can change standard USB cable into foldable adjustable Snake Pipe (shorter length)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You are kindly advised to equip 2-3pcs various focal length Lens to meet various application together in your order, then you can interchange various lens freely locally, no need buy more cameras more at higher cost again

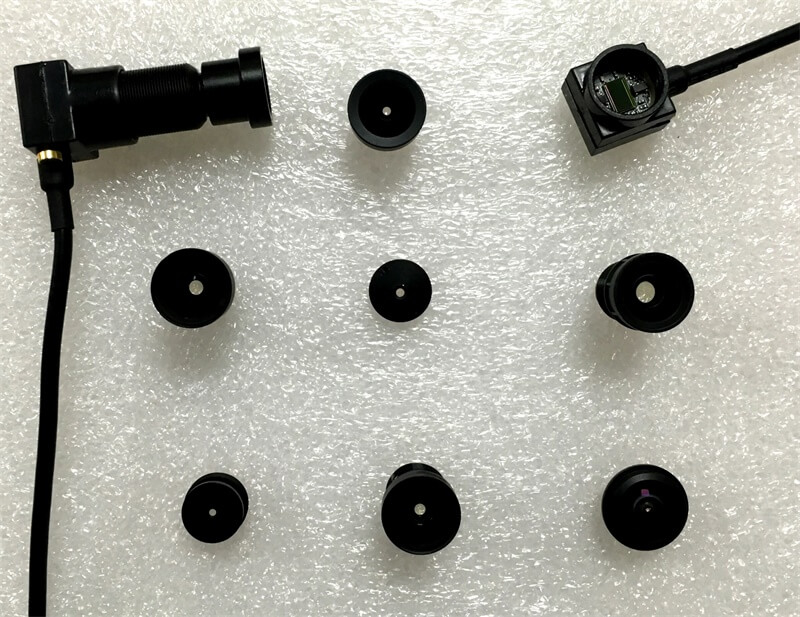

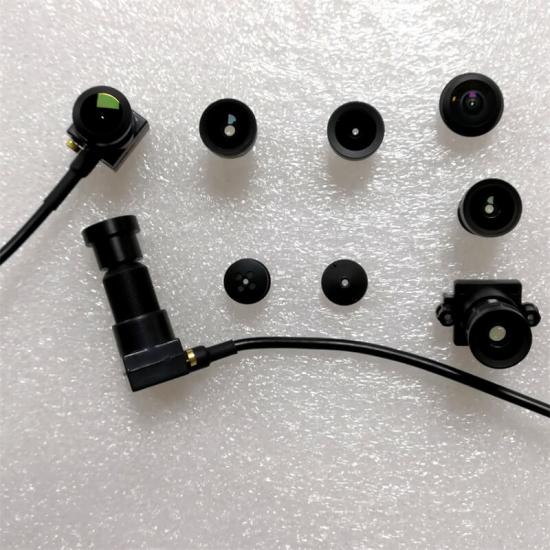

You can change the following M12 Lens easily freely by yourselves to extend more various application together
Product Application
1. Inspecting industrial Equipments/machines/device (Machine Vision)
2. Vehicle and boat control, electronic equipment, oil field equipment/machine,
remote control monitoring, Forest Monitoring, environmental monitoring, etc.
3. Wide Angle USB Security Camera, Mini USB Camera for CCTV
4. Voting system, automatic vending machine, video door phone, safety box
OEM/ODM Custom-Made USB Cameras
Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business.In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together
P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too

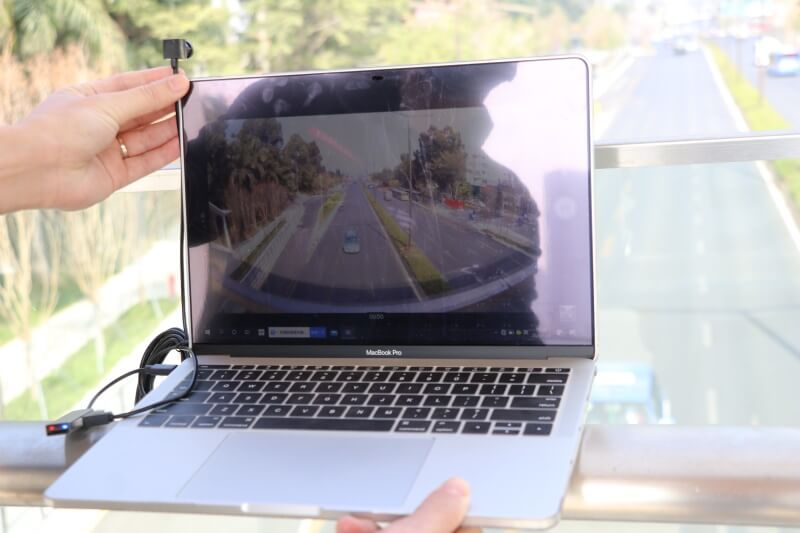

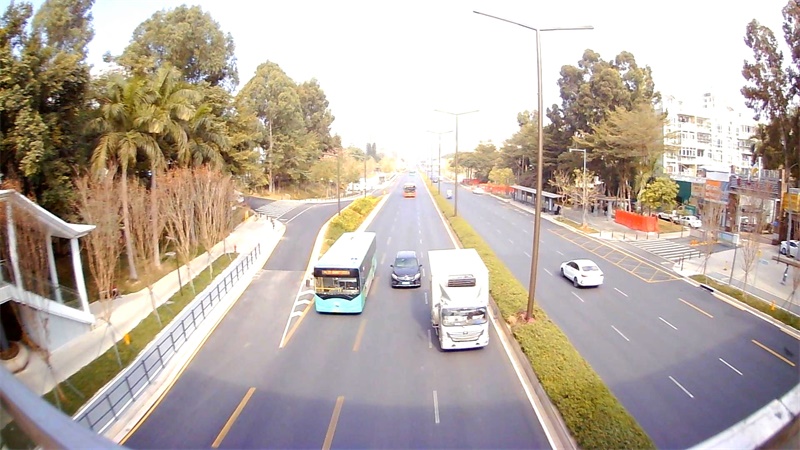

Actual photoshoot/Video Screen shot from working 2MP 150 degree Wide Angle USB Camera
You Can view our real video recording from this 150 degree Wide Angle Inudustrial USB Camera as follow, of course on youtube too
