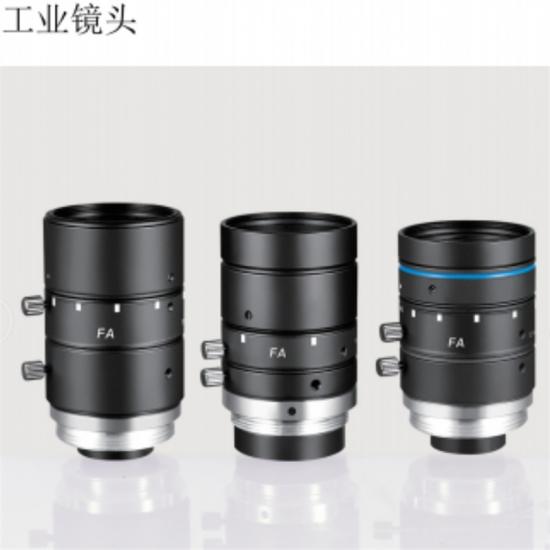

Product name: 2/3'' 16mm 10MP Industrial Camera Lens
Product Advantage:
1, Support 2/3'' 10MP Machine Vision Cameras
2, 16mm Fixed Focus and M27 Mount type
3, Manual Focus 2/3'' FA Lens
4, No distortion, sharp image for Industrial Camera
Product Specification

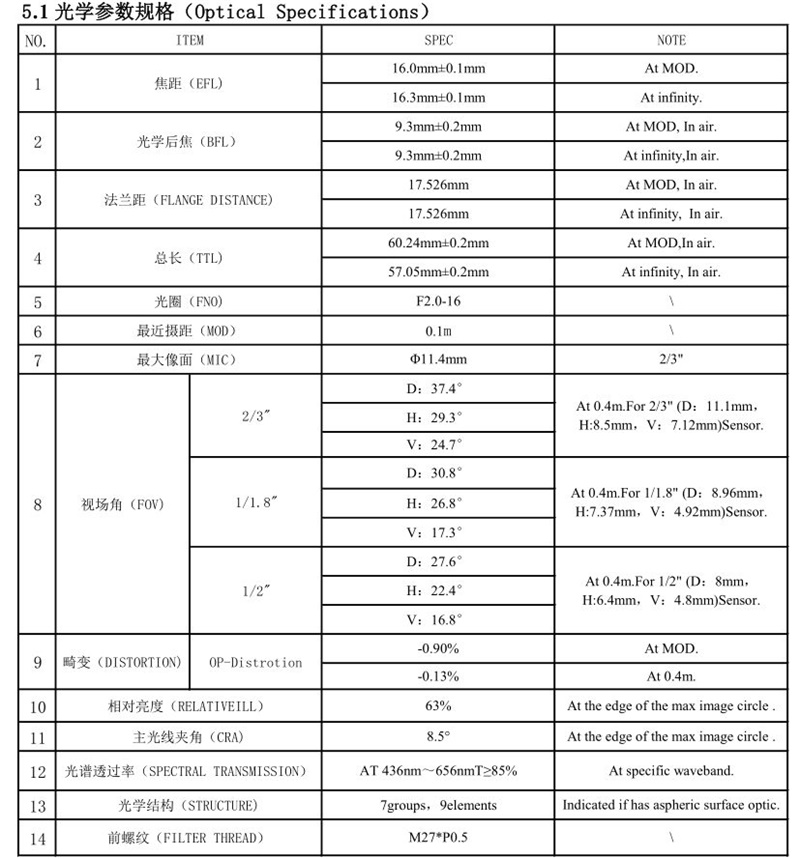

optical specification of 16mm 2/3''10MPC mount machine vision lens
1, Focal length 16.0mm±0.1mm At MOD，
16.3mm±0.1mmAt infinity.
2, Aperture F/No: F2.0-16
3, Optical back focal length (OBFL) 9.3mm±0.2mm
At MOD, In air/At infinityIn air，
4. Flange distance: 17.526mmIn air
5. TTL: 60.24mm±0.2mmAt MOD,In air,
57.05mm±0.2mmAt infinity, In air.
6, Max image circle: Φ11.4mm2/3"
7, Lens structure 7groups，9elements
(Indicated if has aspheric surface optic )
8, Mount type: M27*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)D：37.4°H：29.3°V：24.7°
At 0.4m.For 2/3" (D：11.1mm，H:8.5mm，V：7.12mm)Sensor.
11, Optical Distortion -0.90% At MOD,
-0.13%At 0.4m.
12, Relative illumination 63% At the edge of the max image circle
13, CRA: 8.5°At the edge of the max image circle
14, M.O,D.: 0.1 meter
15, MTF resolution: 10MP
16, SPECTRAL TRANSMISSION: AT 436nm～656nmT≥85%
At specific waveband.
Iris operation: fixed
17, HSF&safety: RoHS
Product Application
1, 2/3'' FA Lens ( Factory Automation FA Camera Lens)
2, Machine Vision Lens
3, HDMI/USB2.0/USB3.0 Industrial Camera work with standard C Mount Lens
4, 2/3 Industrial Camera Lens
5, automatic production field
Machine vision camera systems with 2/3 inch Industrial Lens / FA Lens 3MP or 4K 10MP can be used in packaging, modern logistics, transportation, security monitoring, printing, electronics, textiles, automobile manufacturing, tobacco, semiconductors, medical and pharmaceuticals and other fields.
meanwhile we have other following 2/3 inch Industrial Camera Lenses/ Machine Vision Camera Lens for your selection
1, Economical 3MP 1080P Resolution
12mm, 16mm, 25mm, 35mm, 50mm 2/3 inch Industrial Camera Lens
2, 10MP 4K Ultra Top Resolution 2/3 inch Machine Vision Lens
8mm/12mm/16mm/25mm/35mm/50mm
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
