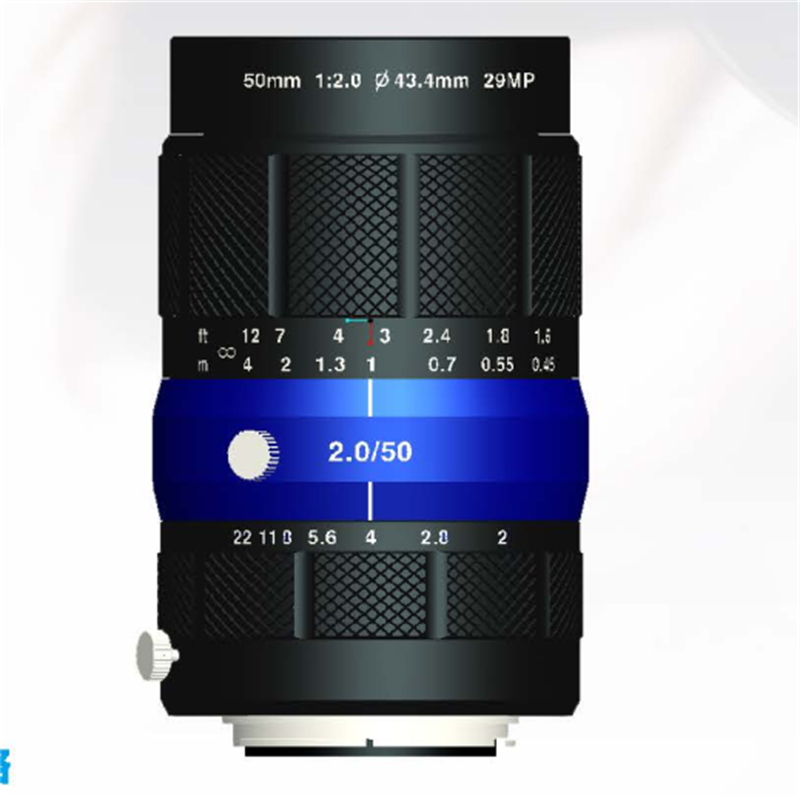

Product Name: 29MP C-mount Full Frame Industrial Lens with variable iris
Product advantage:
1, Variable iris Lens From Large aperture F2.0 to Smallest F22 (creat good depth of Focus)
2,Multi-layer coating, All glass + metal structure design, good high and low temperature resistance,
29MP Top Resolution Machine Vision Lens with C-Mount ( F-Mount Available too)
3, Applied For 20MP/12MP/25MP/29MP megapixel Industrial camera
4, Widely used in Industrial Quality control cameras, Machine vision cameras, Industry Video cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics, Industrial Surveillance and Security etc
Product technical Specification of 50mm Full Frame Lens
|
Product Model |
NWA-35F-50mm |
|
Image Cmos Sensor Format |
35mm Full Frame (43.4mm)/35F |
|
Photo Resolution |
29Megapixels |
|
Focal Length |
50mm |
|
Aperture |
F2.0-F22 |
|
FOV(D×H×V) 35mm (Full Frame) |
46.5*39.1*26.5 |
|
FOV(D×H×V) APS-H |
34.3*30.5*16.3 |
|
FOV(D×H×V) ARS-C |
30.8*24.4*16.7 |
|
FOV(D×H×V) 4/3'' |
24.8*20*15.1 |
|
TV Distortion 35mm (Full Frame) |
-1.1%@y=21.7mm |
|
TV Distortion APS-H |
-0.73%@y=15.7mm |
|
TV Distortion ARS-C |
-0.6%@y=14.0mm |
|
TV Distortion 4/3'' |
-0.4%@y=11.2mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.5m-∞ |
|
Flange Distance |
46.5mm |
|
Operation Mode- Focus |
Manual |
|
Operation Mode –Iris |
Manual |
|
Operation Mode-zoom |
Fixed Focus |
|
Mount type |
F-Mount |
|
Filter Thread |
/ |
|
External Dimensions(mm): |
/ |
|
Structure |
All Glasses Lenses |
|
Working temperature |
-20℃～+60℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
29MP Machine Vision Lens For Industrial Applications
1, FA Lenses For Industrial Inspection and Image Processing.
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
