Product Name: Multi-functional 4K HDMI USB Industrial Electronic Digital Video Microscope Camera For PCB IC CPU Phone
Soldering Repair, 4K Usb Industry Camera
Product advantages and Main Technical feature of Industry Microscope Camera
1,Original 1/2.33 inch 20MP Panasonic CMOS image sensor; Wider FOV than 1/3’’
2,HDMI 1080P@60fps frame image output;
3,USB2.0 driver-free output 1080P 30 frame image output;
4, 4K video recording;
5,Max 48 million Photo/Image, JPG format, 20MP photo Resolution 5160x3870;
6,One-key freeze/thaw function;
7,Electronic zoom function;
8,Support manual/automatic exposure/one key exposure,
exposure compensation value adjustment;
9,Support manual/auto white balance/one-key white balance, red,
green and blue adjustable;
10,Provide 8 line drawing functions, line color, thickness and position are adjustable;
build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative
11,Provide center cross line display/close;
12,Support remote control operation, the picture will be clearer without shaking;
13,Support pre-setting parameter saving after turn off power;
14,Reliable quality Aluminum alloy shell processed by CNC precision milling technology;
Product specification of Zoom Usb Microscope Camera

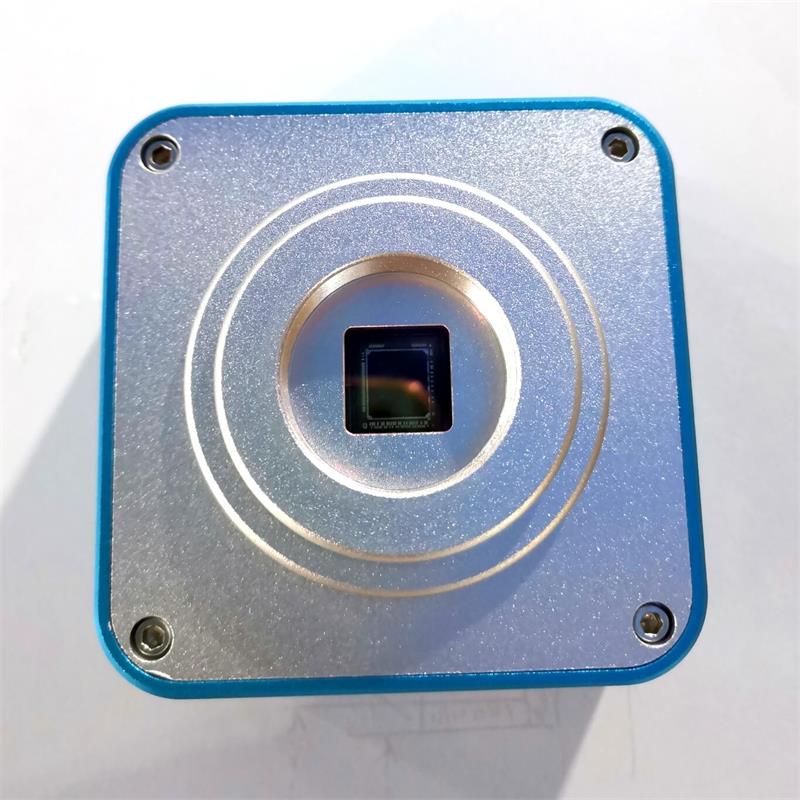

Cmos |
1/2.33 inch Panasonic 20 million pixel CMOS sensor |
Pixel size |
1.335µm × 1.335µm |
HDMI output |
1920*1080@60fps, Scale 4:3, 16:9, 16:10 screens display |
USB outpt |
1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG) Simultaneous output with HDMI |
Lens Mount |
C/CS Mount |
Photo size |
48MP(8000*6000), 38MP 7168*5376, 26MP, 20MP 5120*3840 |
Video size |
4K@25fps, 2.7K@30fps, 1080P@60fps, 720P@60fps |
Video format |
MP4 |
Digital Zoom |
Support MAX 5X Zoom |
Exposure |
Auto/Manual/One key exposure |
Exposure compensation |
support |
White balance |
automatic/manual/one-key white balance, support RGB adjustable |
Film and record |
support |
Storage |
maximum support 64GB Micro SD/TF Card |
Input voltage |
DC 5V-12V 1A, Matching Power adapter: AC100V—240V@50-60Hz |
Cross cursor |
support 8 straight lines, horizontal/vertical lines,movable multi-colors, thickness and position are adjustable or remove |
Center line |
Support display or close available |
language |
English/Chinese |
Remote control |
Support remote control operation |
Brightness control |
Auto/manual |
Color |
Colorful or Black and White available |
Mirror |
Left/right, Up/Down |
Scale mark lines |
2 lines |
Mono Negative |
Support |
Working temp |
0℃ to 50℃ |
Net weight |
250 gram |
Gross weight |
450 gram |
Product size |
68*68*47mm |
Package size |
145*130*70mm |

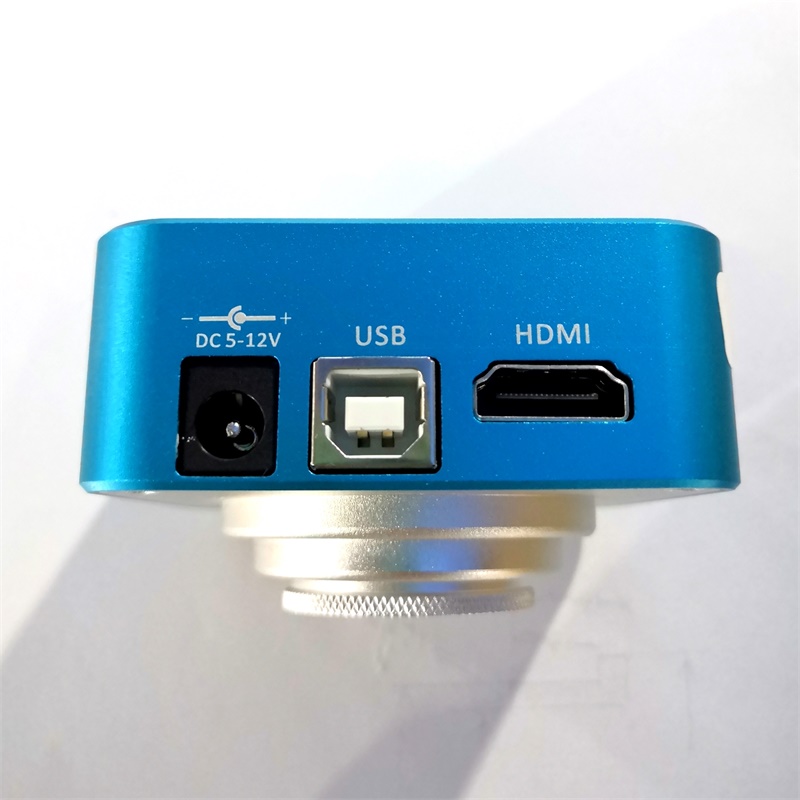

HDMI interface |
Standard HDMI output (Type A) |
USB interface |
Standard usb2.0 interface (Type B) |
US Plug |
Canada, India, Japan, Mexico, Thailand, the United States, the Philippines |
EU Plug |
EU Area and mostly European Countries ( except UK) |
Note and Remarks:
1, Matching C-mount Lenses, please tell us your exact lens requirements
We have various C-mount Industrial Lens for selection
2, PC Support: For Windows XP/7/8/10 system
3, For USB output, its white balance, exposure and color adjustment are automatic, they can't be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor,
if you connect the camera with computer, its function also can not be adjusted.
4, When use USB connection, please make sure no TF card in the camera, TF card storage is only for HDMI output.
USB output will be storage in PC.

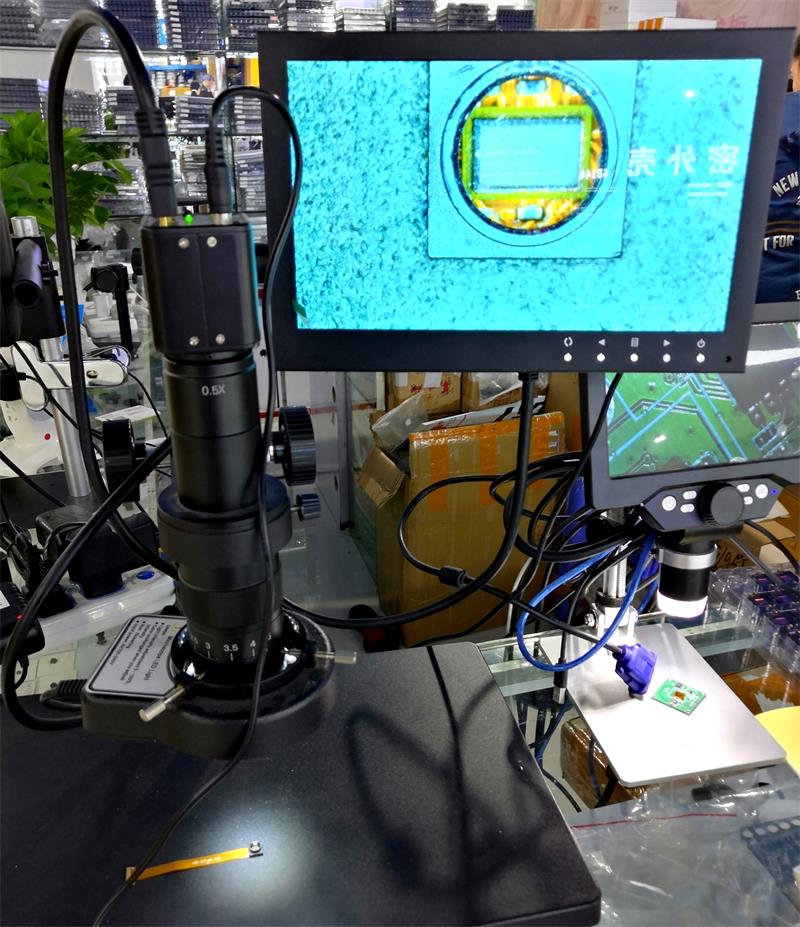

Actual image of Usb Microscope Camera

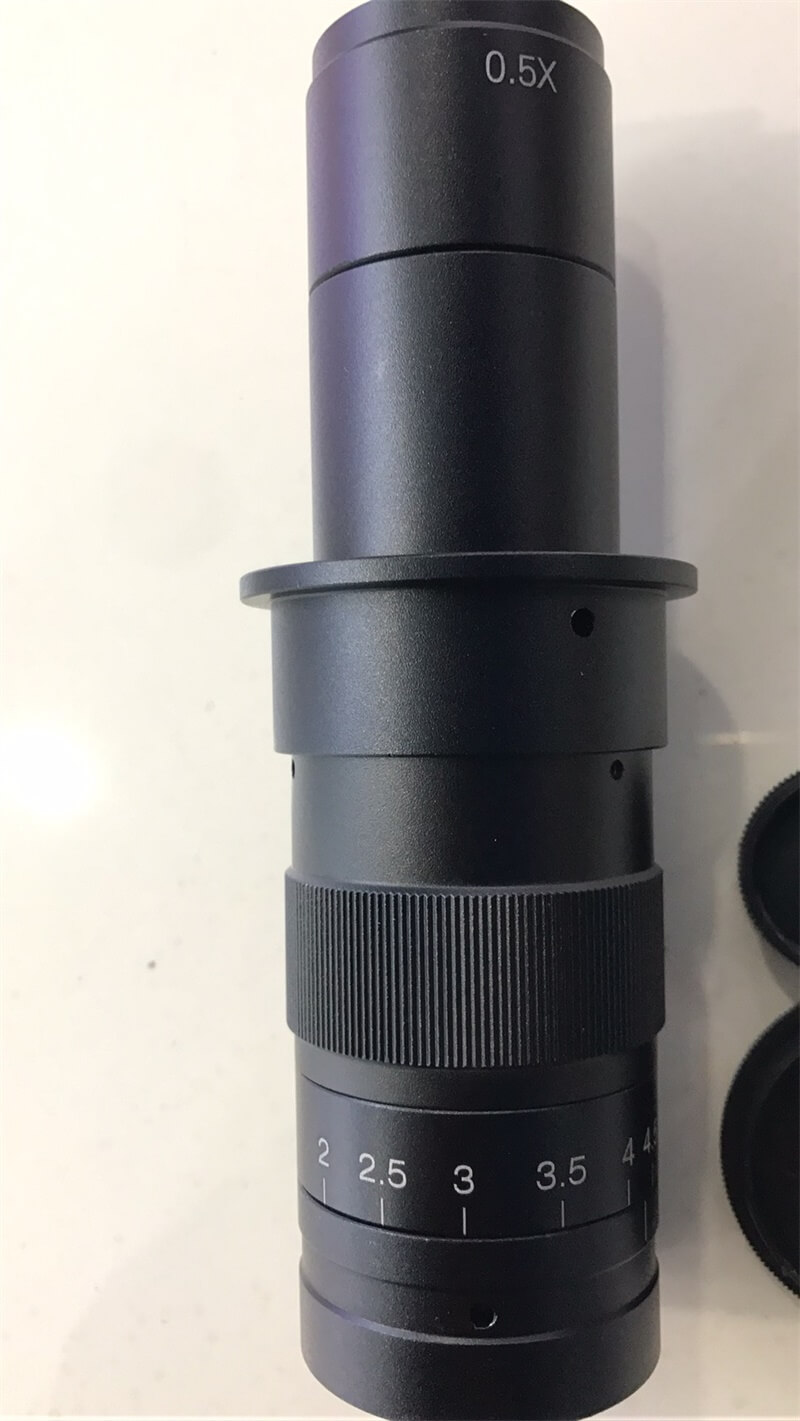

Zoom C-mount Lens work with Industry Camera For PCB
0.5X C-mount adapter
Zoom Ratio: 6.5:1
Objective Lens Magnification: 0.7-4.5X (approximately 10-180X on the display)
Size: Approx. 180 x 50 mm / 7.1 x 2 in

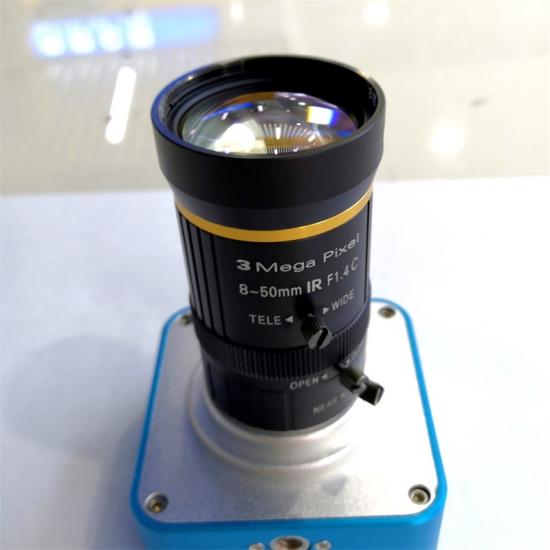

You also can select and change our other normal Manual Focus Varifocal Lenses to extend more application on our website too!
Package List
1 x 48MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
Product Application of 4K Usb Industry Camera
(1)Industrial equipments and Machines testing,
(2)Medical micro graphics and machine vision, Automobile Industry inspection
(3)Mobile Phone/PCBA Soldering Repair, IC CPU Soldering
Industrial camera applications
Industrial cameras are suitable for fruit sorting, automobiles, pharmaceuticals, mining, PCB boards, hardware, connectors, FPC, textiles, tickets, various visual industrial inspections, digital magnifying glasses, medical research, criminal investigation and other fields. It is especially suitable for on-line inspection of the flatness and plane coplanarity of connectors, connecting terminals and IC pins. It is maturely used in various fields such as text recognition, face recognition, QR code scanning, high-speed camera, document shooting, and industrial vision inspection. Teaching and research, medical testing, etc., industrial automation, teaching and scientific research, medical care, intelligent transportation, agriculture and forestry, 3C electronics, new energy vehicles, medical equipment testing, food machinery, intelligent logistics, etc.
