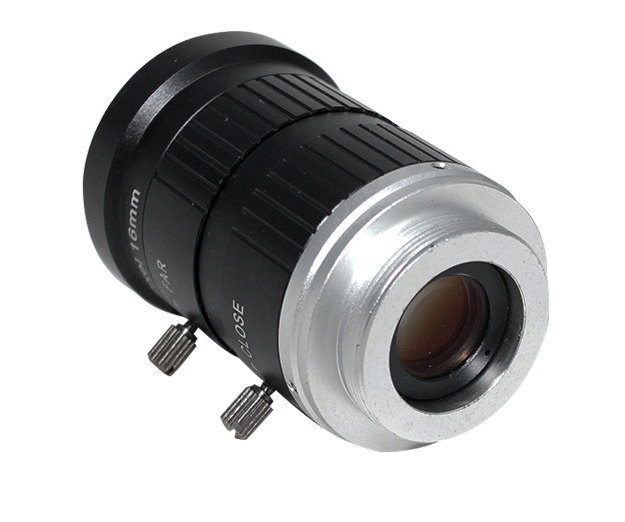

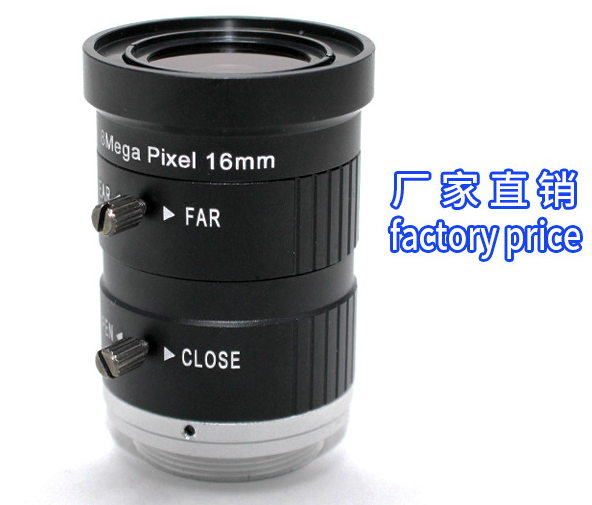

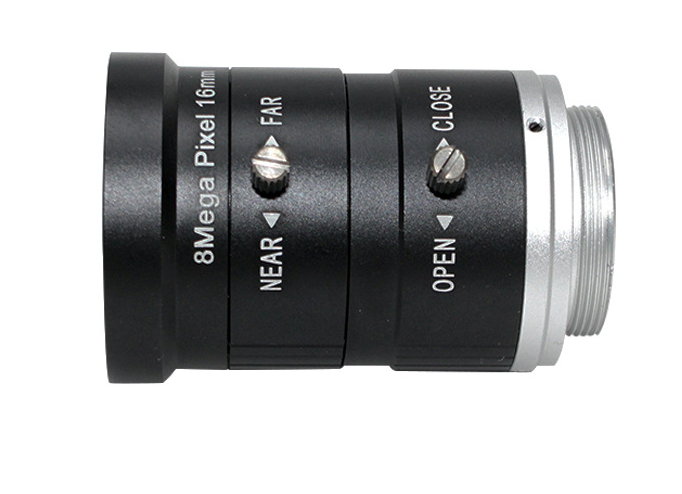

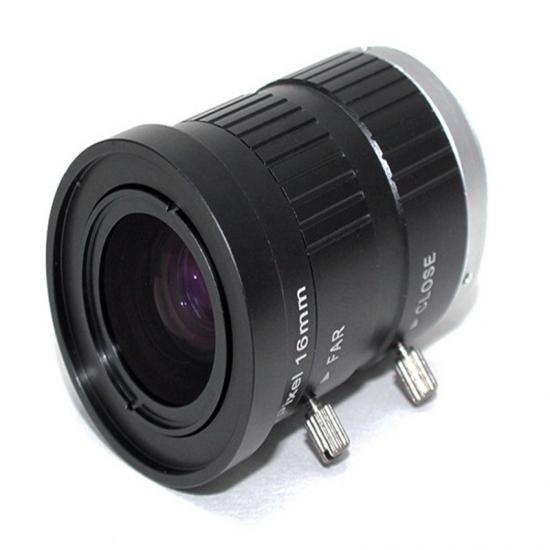

Product Name: Large Format Telephoto 16mm C Lens Mount for CCTV
product advantage
1, Large formats up to 1 inch cmos, Telephoto 16mm 1 inch Lens
2, 16mm telephoto 1 inch C Mount Lens
3, Ultra 4K 8MP high resolution insure top quality video and sharp image
4, widely used as FA Lens, machine vision Lens and professional CCTV Lens C mount
Product Specification
Technical Feature of 16mm 1 inch C Mount Lenses
1, Focal-Length： 16mm
2, Aperture F/No: F1.4-F16
3, Mount Type: C Mount
4, Image Format: 1 inch
5, FOV: D/H/V: 53.13*33.4*43.3 degree ( 1 inch cmos)
28.07*17.06*22.62 degree ( 1/2 cmos)
21.23*12.84*17.06 degree ( 1/3 cmos)
6, Mechanical Back Focal Length: 17.53mm
7, TTL: 63.15mm
8, Iris Type: Manual M-Iris
9, M.O.D.: 0.2m
10, TV Distortion: 1 inch -1.7%,
1/2'' cmos -0.7%, 1/3'' -0.3%
11, Lens Structure: 9G Full Glass
12, Dimension(mm)： F36*52
13, MTF Resolution: 8 MEGAPIXELS
14, Working Temperature: -20 degree to + 60 degree
15, Diameter of Lens Cap: C36mm
Product Application
1, Lens for telephoto Camera
2, Lens for CCTV security Camera
3, Lens for ITS Lens
4, Lens for surveillance camera
5, Lens for Camera with C Mount
6, Lens for Forest Camera

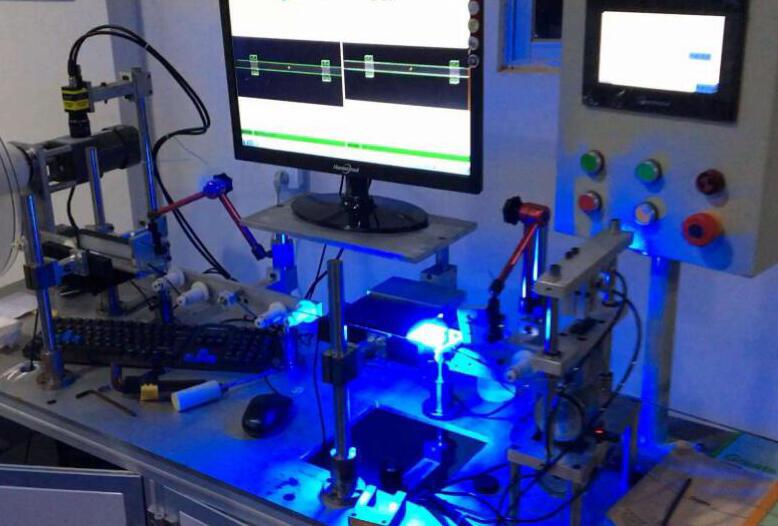

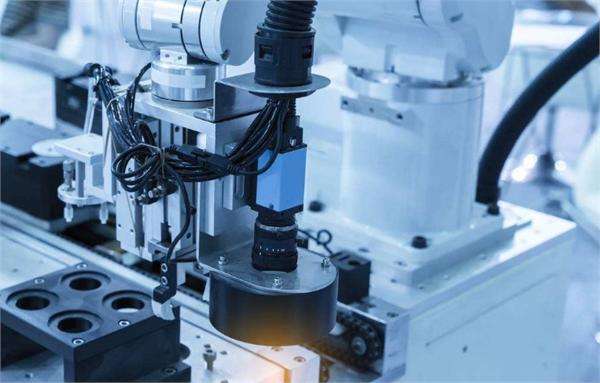

Application of 1 inch C Mount machine vision lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors, biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
16mm 1 inch C-Mount Lens for ITS
1 inch C Mount lens applications
Industrial lenses are widely used in industrial machine vision and image processing systems such as industrial identification, industrial inspection, industrial measurement, high-precision measurement, inspection, identification, industrial monitoring, instrumentation, microscopic imaging, machine vision, 3D scanning, biometrics, etc. It is widely used in semiconductor machinery parts, scientific research, image processing, electronics, automotive medical packaging, military manufacturing and other industries
Specific applications are as follows:
Chip, wafer surface detection, one-dimensional code, two-dimensional code recognition; object surface scratches, text and other detection; metal surface, bearing, beverage cans engraved character detection; MARK point positioning; night/day safety equipment; solar panels; Semiconductor; wafer inspection; peripheral monitoring; machine vision; medical applications; biometric technology; aerial surveillance; food sorting.
Application areas include surface and continuous logistics inspection, intelligent transportation systems and traffic law enforcement systems, text reading, mail sorting, measurement (2D/3D), medical imaging, biometrics, and aerospace and defense.
