Product Name
2 in1 170 Wide Angle Rearview backup Camera & Parking Radar Sensor for all Automobile Car SUV
Low Cost affordable Car Rear View Camera With built-in radar Sensors
Product Features:
1,0.1lux Low illumination camera, night vision effect is outstanding
2,When a vehicle enters 2 meters distance obstacle, video radar system indicating the start of the obstacle distance, buzzer start alarm

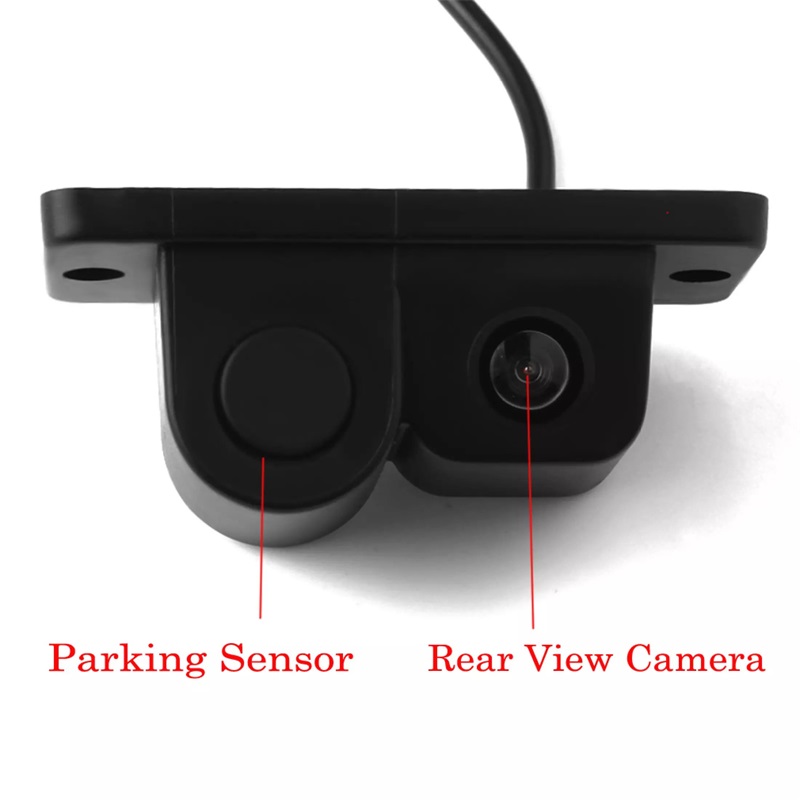

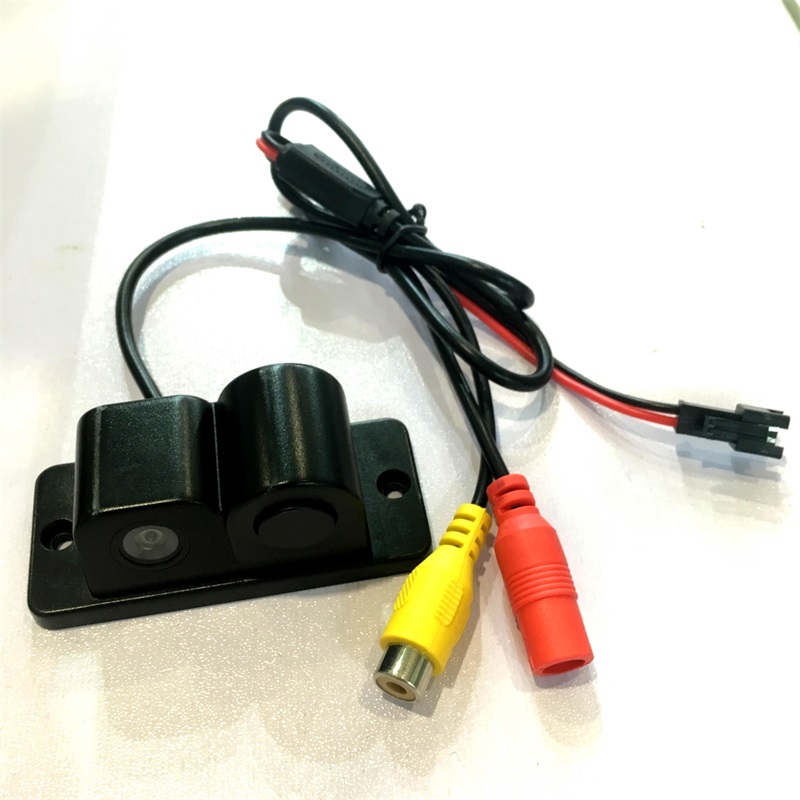

3, Camera with dual probe ultrasonic, 2 in one Vehicle Backup Camera Sensor Combo

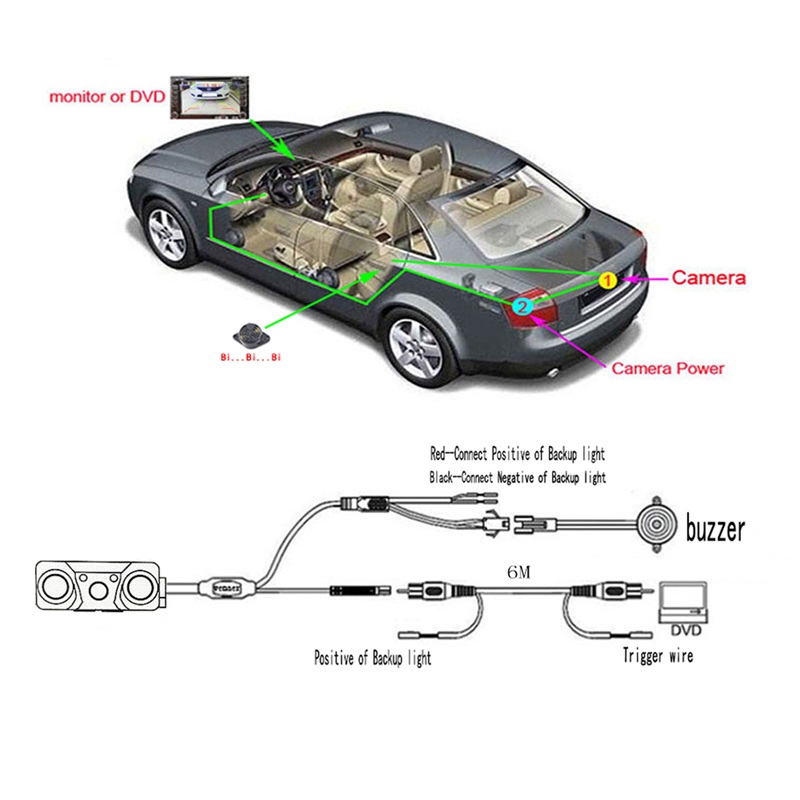

4, When the car into reverse gear, reversing lamp lights up, automatic startup radar system.
5,Numeral and color LED display, Voice engaged or shut at your will
6,Your car can be protected from bumps and expensive collisions.
7,This parking sensor system helps take the risk out of reversing and parking.
Product Specification
|
Product name |
2 in one car rearview Backup Camera with radar |
|
Image sensor |
color CMOS |
|
voltage |
9DCV—15DCV |
|
Rated voltage |
12DCV |
|
Power cost |
Max 1W |
|
Image sensor |
1/3 CMOS |
|
Total Pixels |
720*480 pixels |
|
Resolution |
600 TVL (Enhanced) |
|
Lens Angle |
170 degree |
|
Mini illumination |
0.1Lux |
|
Video output |
CVBS 1.0 Vpp / 75ohm |
|
Respond distance |
0.3m—2.0m |
|
Minimum detectable range |
0.3 meter |
|
Maximum detectable range |
2 meter |
|
Alarm distance |
0m—2.0m |
|
Sensor diameter |
14mm |
|
Sensor angle |
X、Y、60℃ |
|
work temperature |
-30℃---+80℃ |
|
alarm volume |
65dB |
|
Alarm frequency |
1.6-2.0m：0.5 HZ（slowness）；；1.1-1.5m ：1 HZ（slowness）； 0.6-1.0m:3 HZ（commonly）； 0-0.4m ：BI----- ； |
|
Camera Waterproof Grade |
IP68 |
|
Shell Material |
Plastic |
|
Guiding Line |
Yes |
|
Video Type |
PAL / NTSC |
|
Alarm Type |
Rear Side |
Packing info

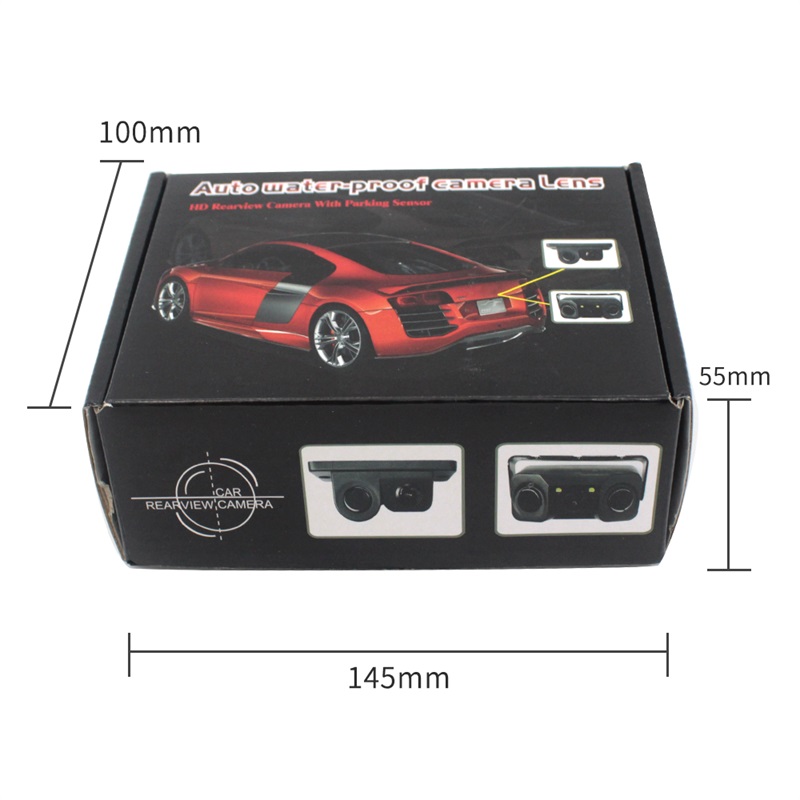

Unit Size：143*103*60mm
Gross weight：0.24KG Size of Export Carton:545*300*297mm
50PCS packed into one export carton, Total Gross weight: 12.5KG/carton
Product Application
2 in 1 Rear Camera Sensor can work and apply for all kinds of small car, SUV, Caravan, RVs, truck and part of Commercial Vehicles
