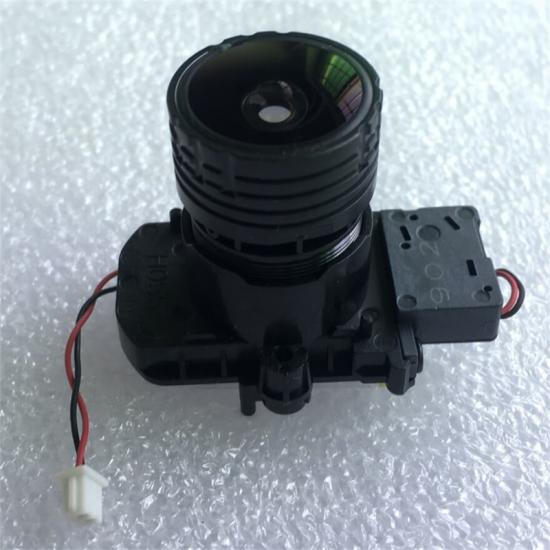

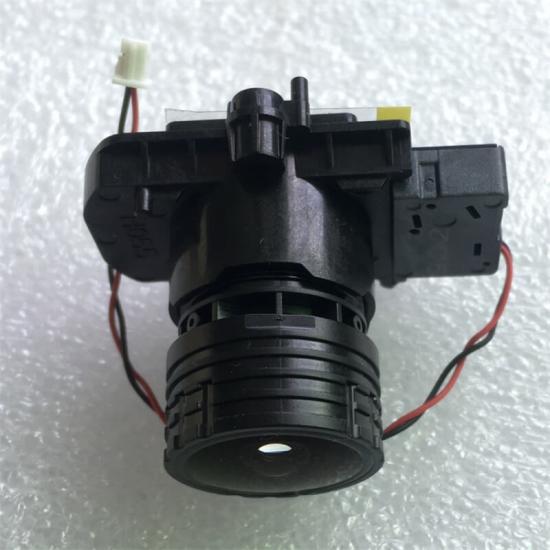

Product name：2.8mm m16 lens mount 4K 8MP 1/1.8'' wide angle large aperture F1.6 lenses
Product Advantage:
1, 2.8mm wide Angle up to 131 degree
2, support large format 1/1.8’’ Starlight F1.6 and Ultra 4K
3, barrel made of aluminum alloy raw material, surface oxidized, All black Design
4, 4K 2.8mm M16 Camera Lens mount
Product Specification

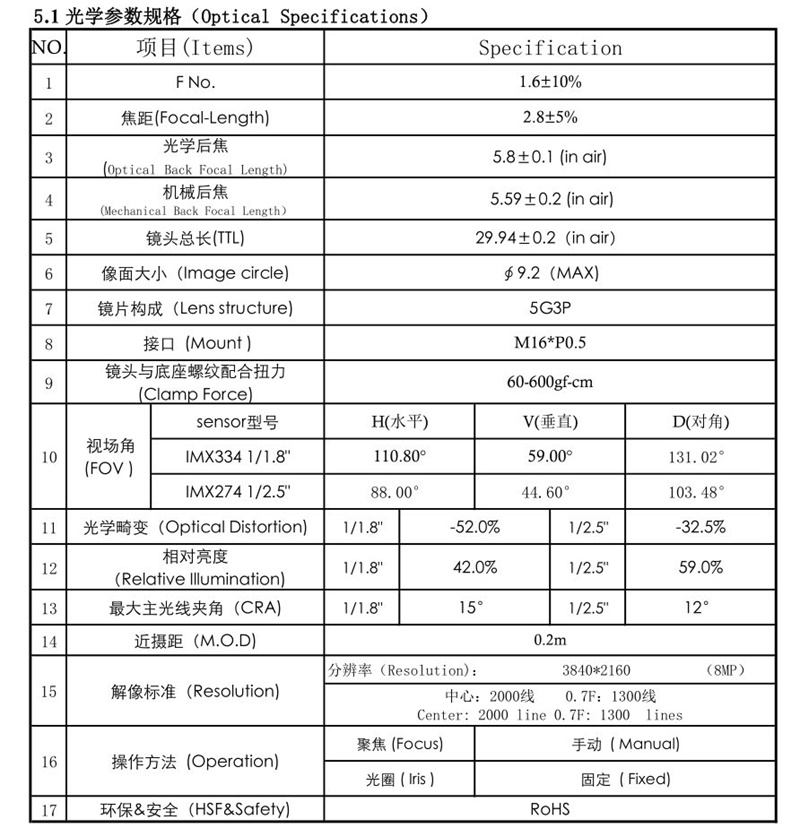

optical specification of 2.8mm 4K M16 Camera Lens
1, Focal length: 2.8±5%
2, Aperture F/No: 1.6±10% starlight vision
3, Optical back focal length (OBFL): 5.8±0.1 (in air)
4. Mechanical back focal length (MBFL): 5.59±0.2 (in air)

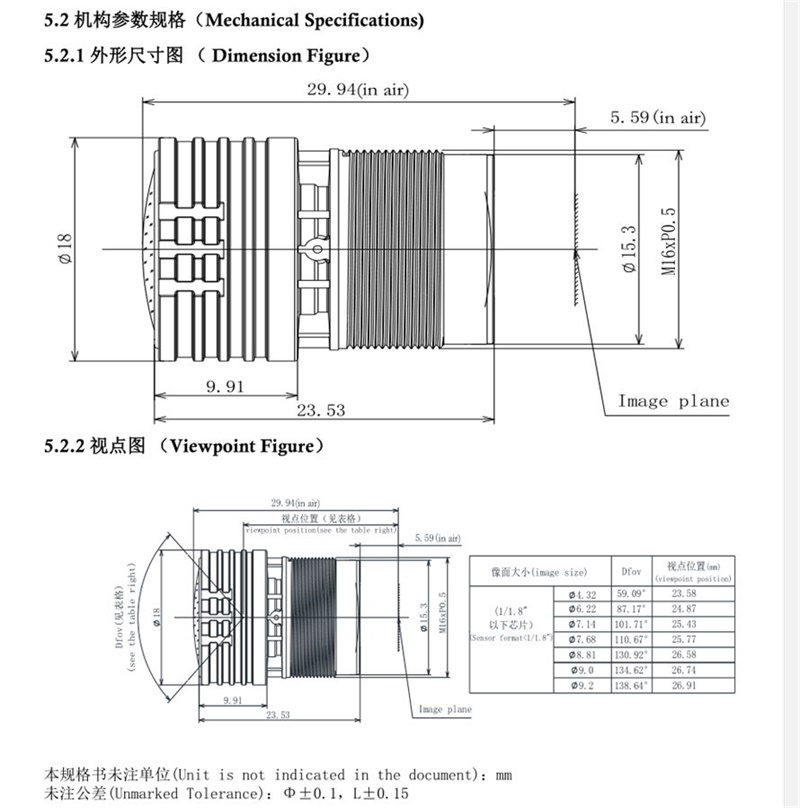

5. TTL: 29.94±0.2（in air）
6, Max image circle: ∮9.2（MAX)
7, Lens structure: 5G3P
8, Mount type: M16*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)
IMX334 1/1.8" D 131.02° / H 110.80° / V 59.00°
IMX274 1/2.5" D103.48° / H 88.00° / V 44.60°
11, Optical Distortion 1/1.8"-52.0% ,
1/2.5"-32.5%
12, Relative illumination 1/1.8"42.0%
1/2.5"59.0%
13, CRA: 1/1.8"15°, 1/2.5"12°
14, M.O,D.:0.2meter

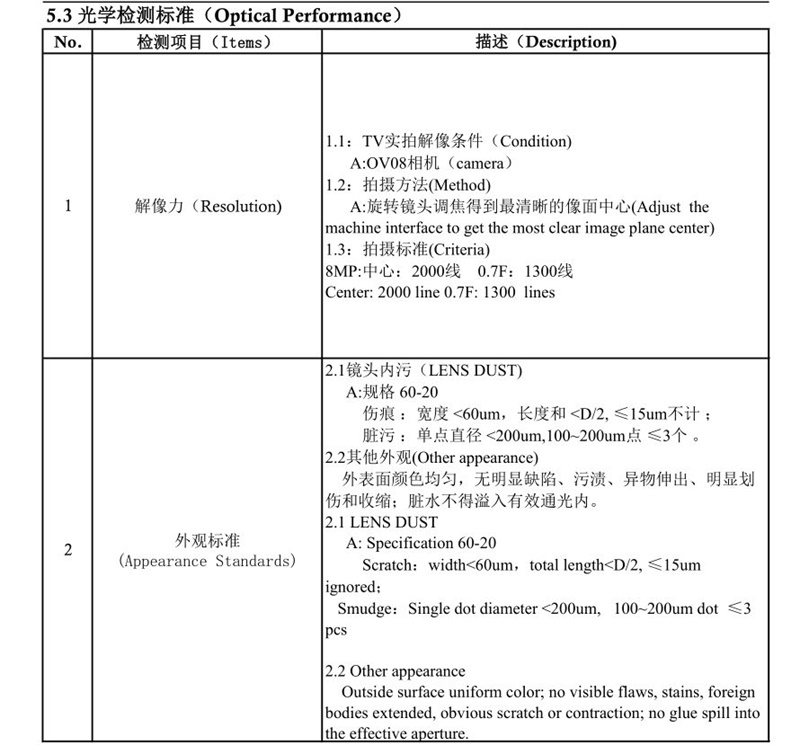

15, MTF resolution: 3840*2160 （8MP）,
Center: 2000 line 0.7F: 1300 lines
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
Technical datasheet of 2.8mm m16 F1.6 Starlight Lens 1/1.8
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera，
3, Lens for Black Light F1.0 Surveillance Cameras
3, Lens for Professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Starlight Video Camera
6, Lens for Automobile Camera
7, Lens for Wifi Door phone Camera
