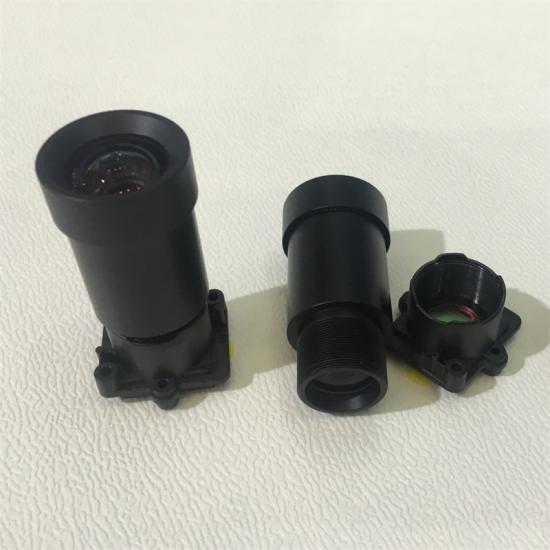

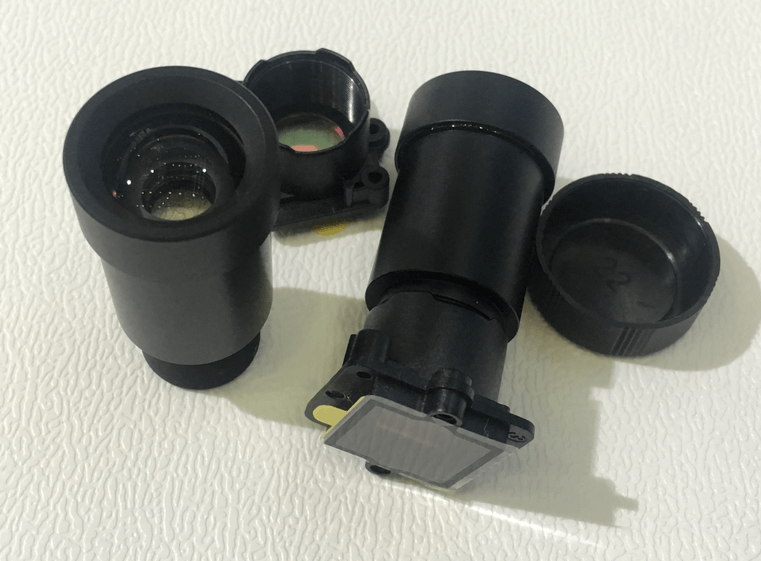

Product Name: 1/1.8'' cmos sensor 8mm m16*p0.5 10G 4K IR cctv camera lens F0.96 horizontal 52 degree 12 megapixel
Product Advantage
1, 10G Full Glasses design, materials are imported from Japan
2, F0.96 large aperture good for Night Vision Lens
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, Support Large Format 1/1.8 and have 12 Megapixels high resolution
5, We are China professional CCTV Lens Manufacturer of M12 and M16 Lens
Product Specification
keying technical feature of 8mm M16 night vision Lens

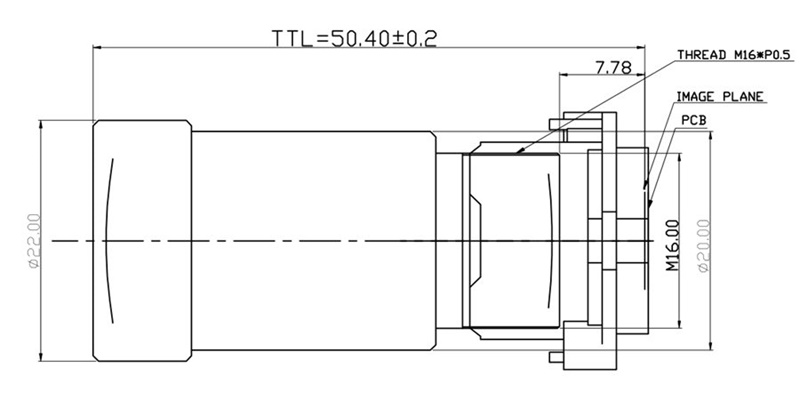

1，TTL: 50.4mm
2, EFFECT Focal length: 8mm
3, Aperture F/No: 0.96 Large Aperture Lens
4, Optical Back Focal Length: 8.47mm
5, Mechnical Back Focal Length: 7.78mm
6, Max image circle: C8.9
7, FOV (D/H/V): 66.5/52/34.5
(1/8 cmos sensor)
8, Optical Distortion: <-18
9, Relative illumination: >40%
10, CRA: < 6.6 degree
11, mount type: M12*P0.5
12, Lens construction: 10G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -30 to +80 degree
15, storage temperature: -30 to +90 degree
16, ultraviolet-proof standard: 500w@72H

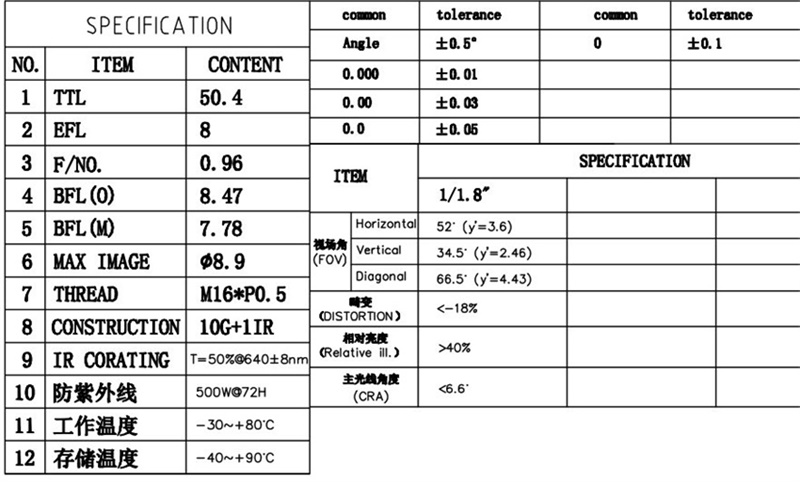

Technical datasheet of 8mm security lens
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera， Surveillance Cameras
3, Lens for professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Night Vision Video Camera
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
