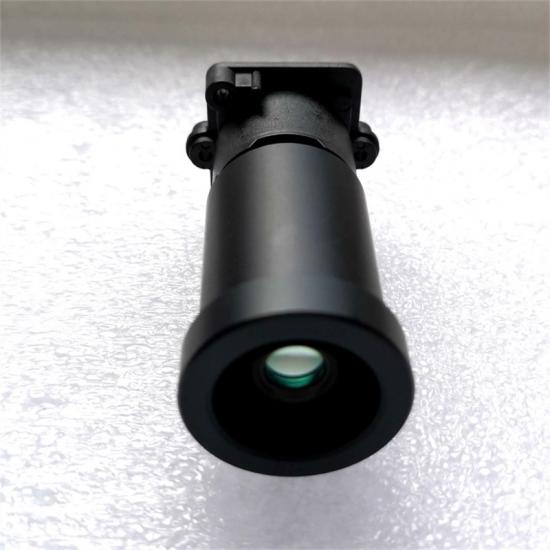

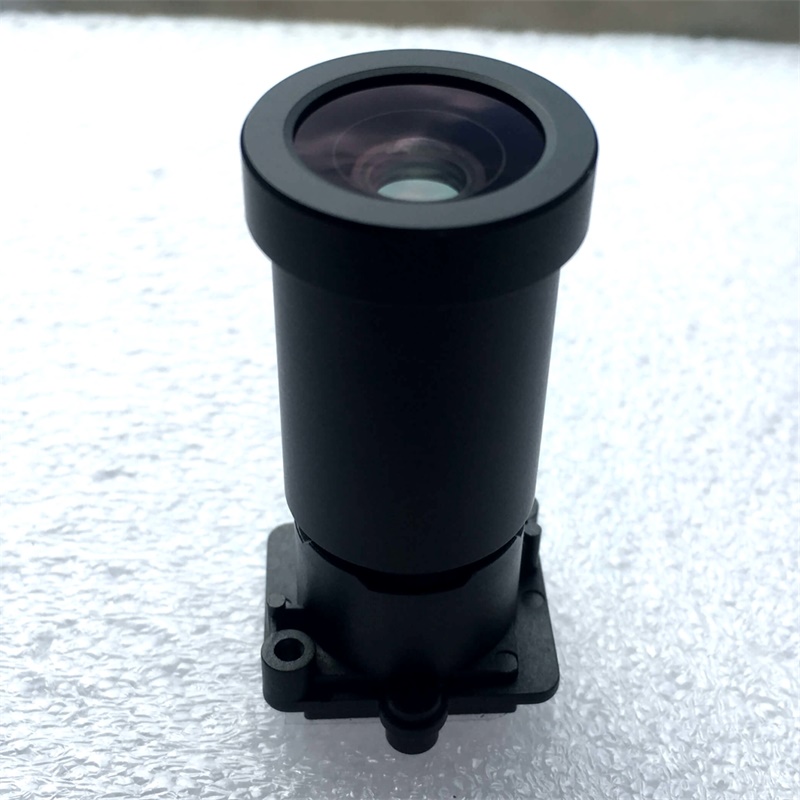

Product Name：1/1.8'' 5mm m16 lens mount 10G glass 4K F0.95 black light custom cctv camera lens 12MP 1/2''
Product Advantage
1, Unique 5mm Fixed Focal Length design
2, Work with max 1/1.8 Cmos Sensor
3, Widely used in Automotive Industry Lenses
4, Horizontal 88 degree with 20mm hole lens holder
5, Japanese Glass elements and metal barrel housing
6, 10G Full Glasses M16 Lens Mount, Truck Camera Lens
6，Actual Largest Aperture up to F0.95 ( 0.95 Aperture Lens )
Product Specification
keying technical feature of 5mm M16 Lens mount
1，TTL: 49mm
2, EFFECT Focal length: 5mm
3, Aperture F/No: F0.9 Black Light, Dark Light Lens
4, Optical Back Focal Length: 6.48mm
5, Mechnical Back Focal Length: 5.35mm
6, Max image circle: 8.9
7, FOV (D/H/V): 118/88/63 (1/1.8 cmos sensor)
8, Optical Distortion: <-42%
9, Relative illumination: >40%
10, CRA: <5.25 degree
11, mount type: M16*P0.5
12, Lens construction: 10G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -30 to +80 degree
15, storage temperature: -30 to +90 degree
16, ultraviolet-proof standard: 500w@72H
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera，
3, Lens for Black Light F1.0 Surveillance Cameras
3, Lens for Professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Starlight Video Camera
6, Lens for Automobile Camera
7, Lens for Wifi Door phone Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China,Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera, their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
