Product Name: 1/2.7'' OV2710 5MP 4mm starlight darkfighter F0.9 m16 cctv camera lens 8G wide angle 110 degree
Product Advantage:
1, Dark Light largest Aperture up to F0.9 Lens
2, Top quality Glasses materials are imported from Japan
3, 4mm M16 Lens mount widely used for CCTV Night Vision Camera
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
keying technical feature of 4mm m16 dark light lens
1，TTL: 38.4mm
2, EFFECT Focal length: 4mm
3, Aperture F/No: 0.9
4, Optical Back Focal Length: 5.8mm
5, Mechnical Back Focal Length: 5.06mm
6, Max image circle: 6.6
7, FOV (D/H/V): 110/90/47 degree（1/2.7 cmos sensor）
8, Optical Distortion: <-42%
9, Relative illumination: >53%
10, CRA: <18 degree
11, mount type: M16*P0.5
12, Lens construction: 8G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H

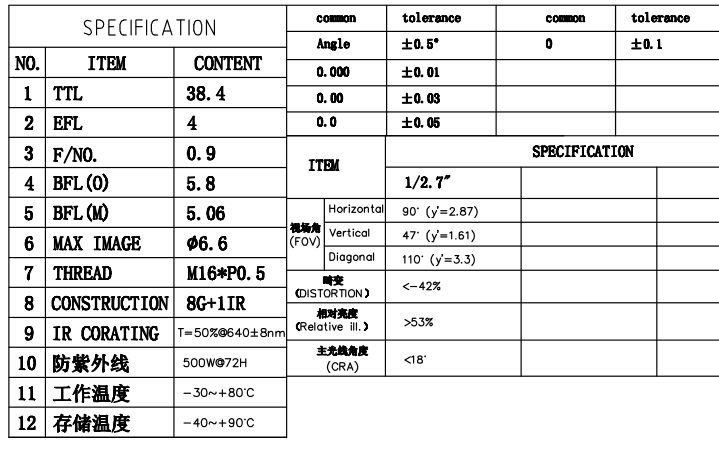

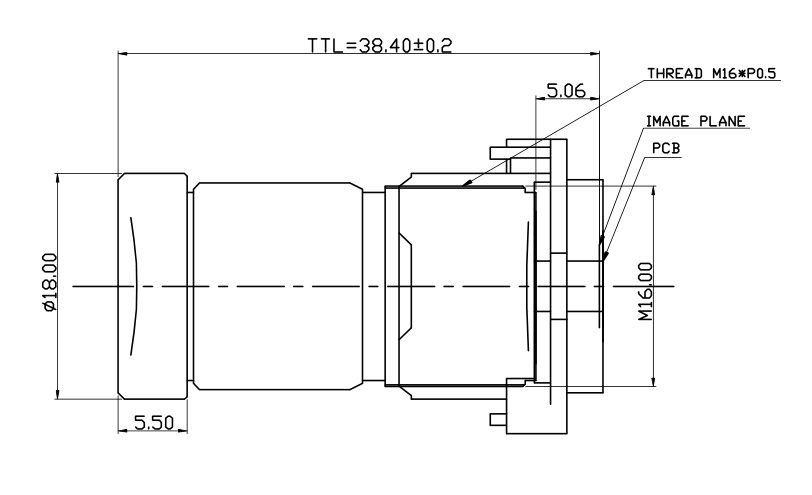

technical datasheet of 4mm Dark Light Low Lux Lens
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera， Surveillance Cameras
3, Lens for professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Night Vision Video Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
