Product Name: 8MP 6mm M16 Lens Mount F0.9 Low lux 1/1.8''Super Starlight security lens
Product Advantage
1,IR-Correction for Day and Night Security Surveillance
2,Japanese Glass elements and metal barrel housing
3,Widely used in multiple field ( see as following)
4,6.35mm M16 Black Light Lens F1.0 very Low Lux Lens
Product Specification
keying technical feature of 6.35mm M16 F1.0 Lens

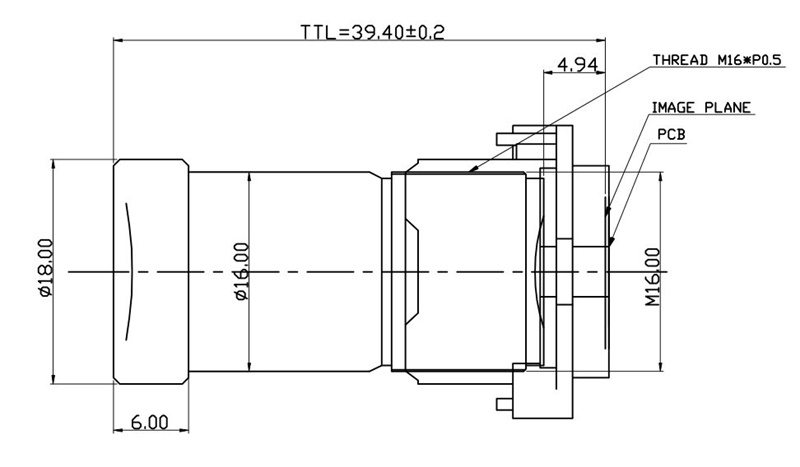

1，TTL: 39.4mm
2, EFFECT Focal length: 6.35mm
3, Aperture F/No: F0.97
4, Optical Back Focal Length: 5.63mm
5, Mechnical Back Focal Length: 4.94mm
6, Max image circle: 7.0
7, FOV (D/H/V): 65/58/45 degree
(1/2.7 cmos sensor)
8, Optical Distortion: <-18%
9, Relative illumination: >65%
10, CRA: <7.8 degree
11, mount type: M16*P0.5
12, Lens construction: 8G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -30 to +80 degree
15, storage temperature: -30 to +90 degree
16, ultraviolet-proof standard: 500w@72H

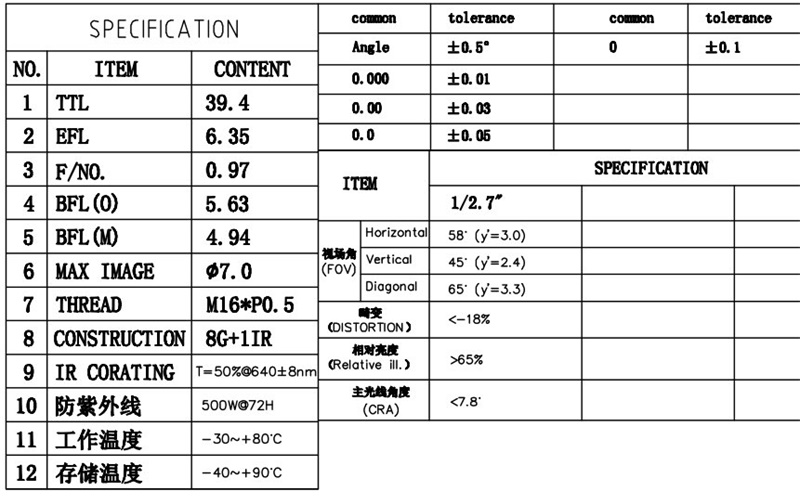

technical datasheet of 6.35mm M16 Low Lux Lens
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera， Surveillance Cameras
3, Lens for professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Night Vision Video Camera
6, lens for Bus camera, truck camera, trailer Camera
7, lens for CCTV security night vision camera
8, lens for car night vision rearview camera
9, lens for 1080P car dash camera DVR, black box camera
10,lens for night vision camera，Night Cameras
11,lens for any camera good night vision needed
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
