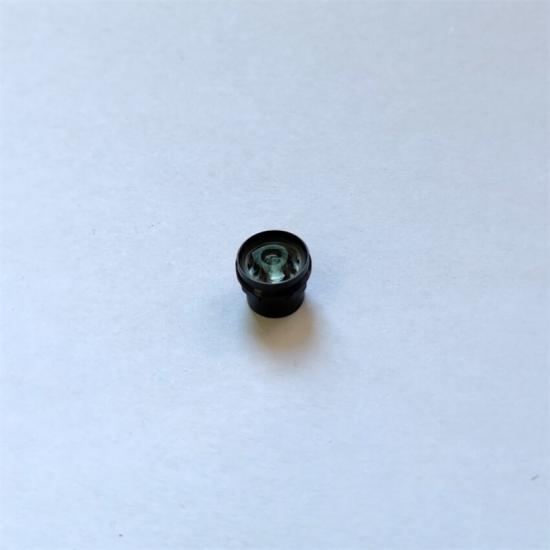

Product Name: 1.96mm m7 auto focus camera module wide angle lens FOV 119 TTL 6.1
product advantage
1, unique AF Auto Focus Camera Module Lens M7
2, Auto Focus Lens wide Angle 119 degree
3, work available for any pinhole camera that need auto focus module
4, All plastics lenses and very short TTL 6.1mm
Production Specification
Technical Feature of 1.96mm Auto Focus Lens M7
1，Lens Constructure：8 ELEMTS， ALL PLASTIC Lenses
2, Matching Sensor：1/2.7 inch
3, Effective Focal Length: 1.96mm
4, Aperture F/NO=2.2
5, TTL: 6.1mm
6, FIELD OF VIEW
VERTICAL：77°(Y=L.95)
HORI20NTAL：95°(Y=2.61)
DIAGORAL：119”( Y=3.29)
8, TV-DISTORTION:<-15.5%
9, RELATIVE ILLUMINATION(REF) 8=27%
10,CHIEF RAY ANGLE <35.2°
11,IR-CUTCOATNG FILTER：NO
12,BARREL MATERIAL: PC

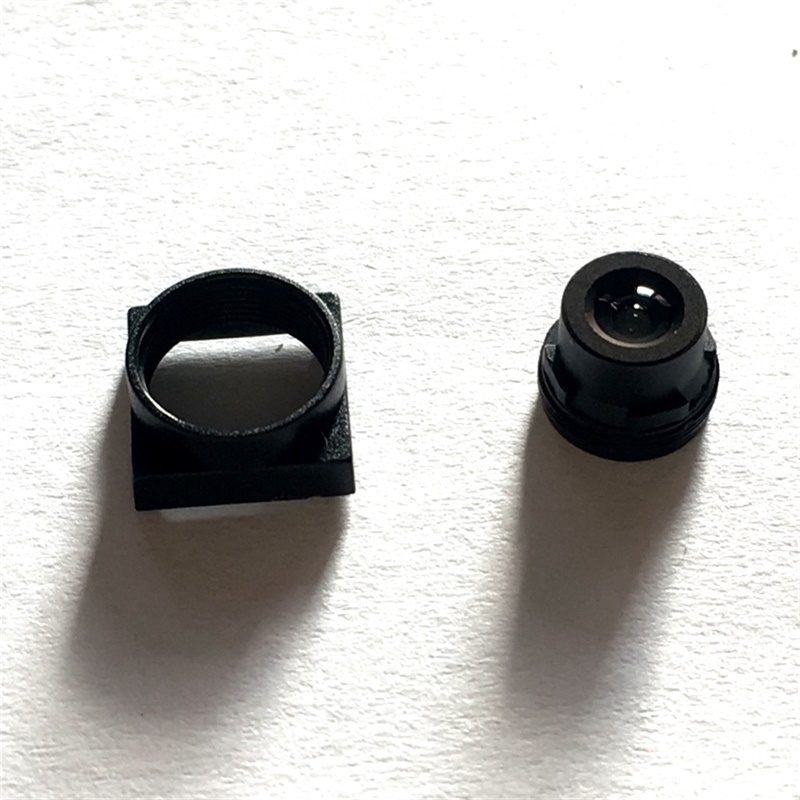

13,SIZE OF LENS HOLDER: 8*8mm

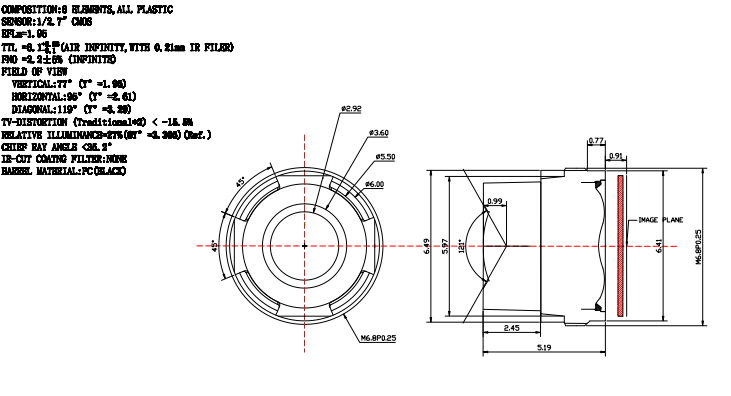

Technical datasheet of AF M7 Lenses
Product Application

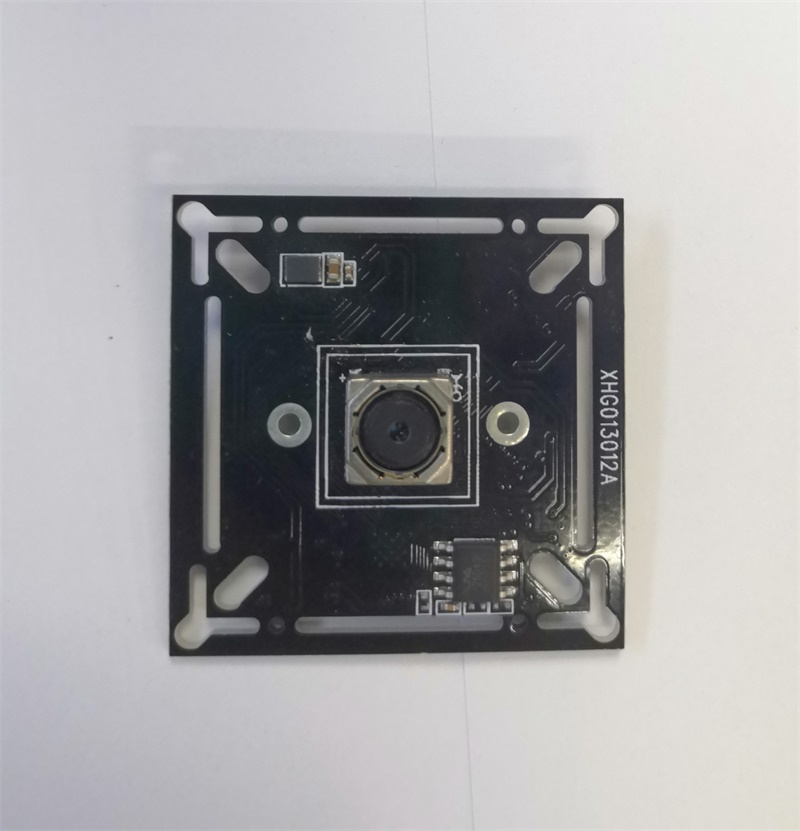

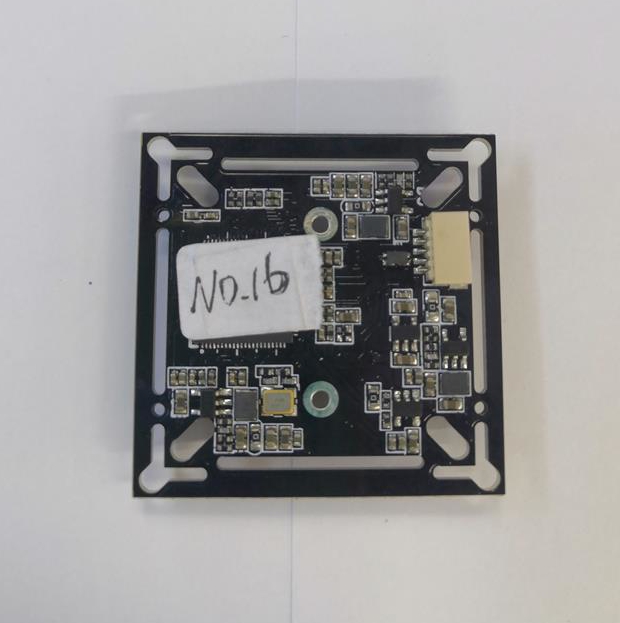

1, Lens for AF Auto Focus Camera Module
2, Lens for Auto Focus Mini Camera
3, Lens for Mini Wifi Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 LensCustom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
