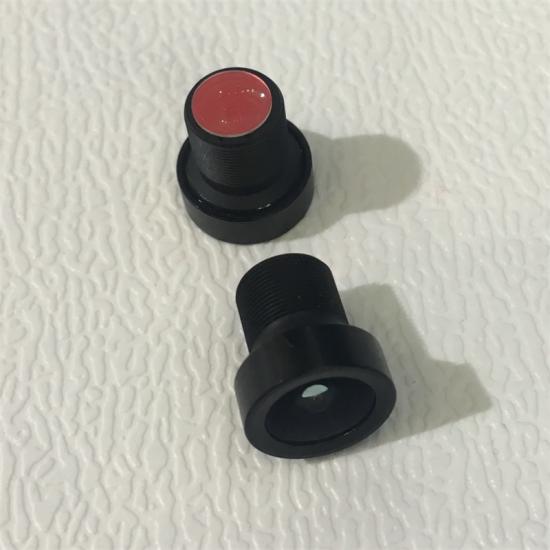

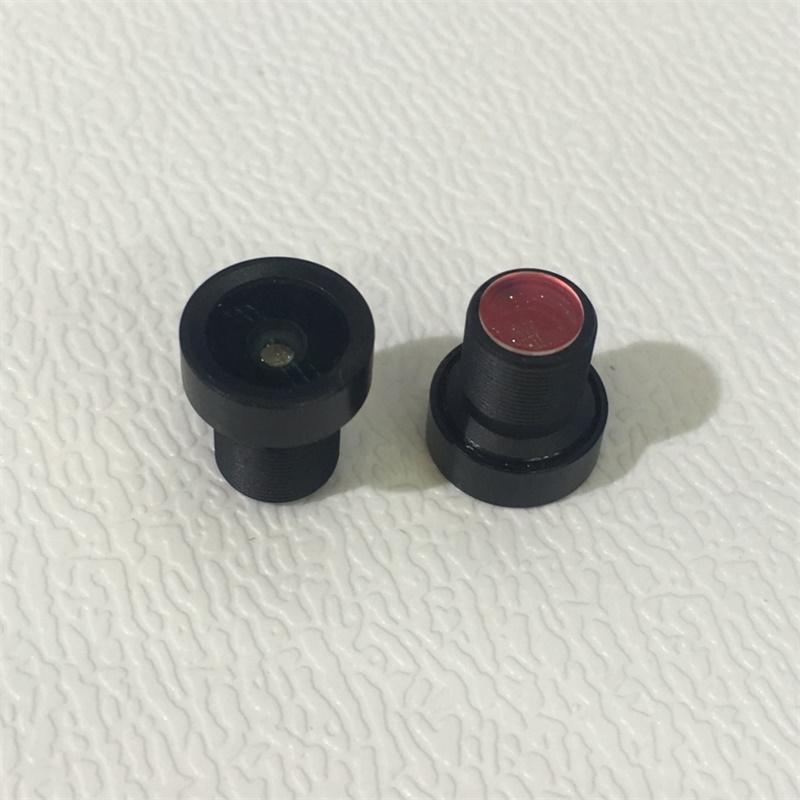

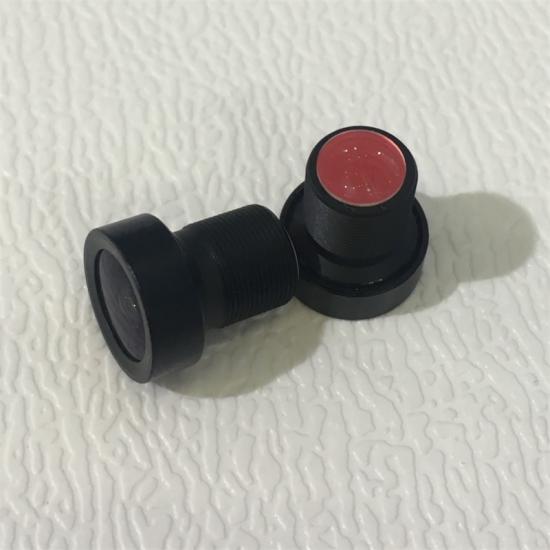

Product Name: 1/2.7'' OV2710 EFL 3.65mm 6G m7 optical lens mount Max 1/2.5'' sensor
Product Advantage
1, 6G Full Glass Lenses， Optical Lens Wholesale
2, IR-Correction for Day and Night Security Surveillance
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product Specification
keying technical feature of 3.65mm m7 glass lens
1，TTL: 15.95mm
2, EFFECT Focal length: 3.65mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length: 5.48mm
5, Mechnical Back Focal Length: 2.80mm
6, Max image circle: ￠7.8
7, FOV (D/H/V): 115/89/55 degree
(1/2.9 IMX122 Sony Sensor)
8, Optical Distortion: H:-9.6%, V:-25.8%
9, Relative illumination: >89%
10, CRA: <11.5 degree
11, mount type: M7*P0.35
12, Lens construction: 6G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, Diameter of Lens cap: ￠10

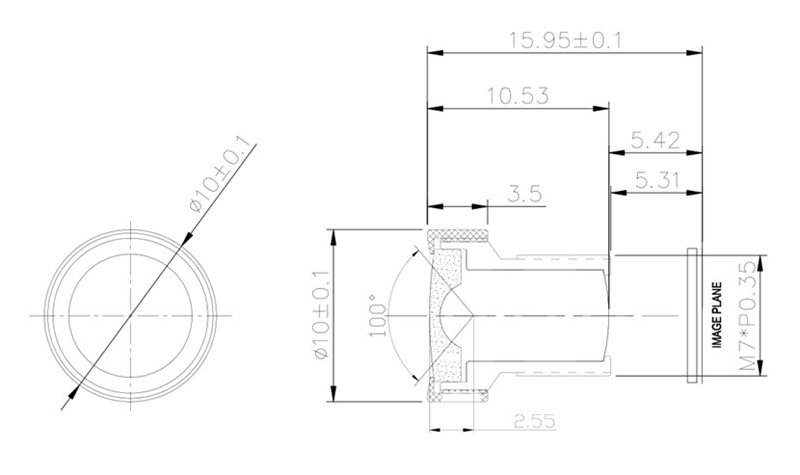

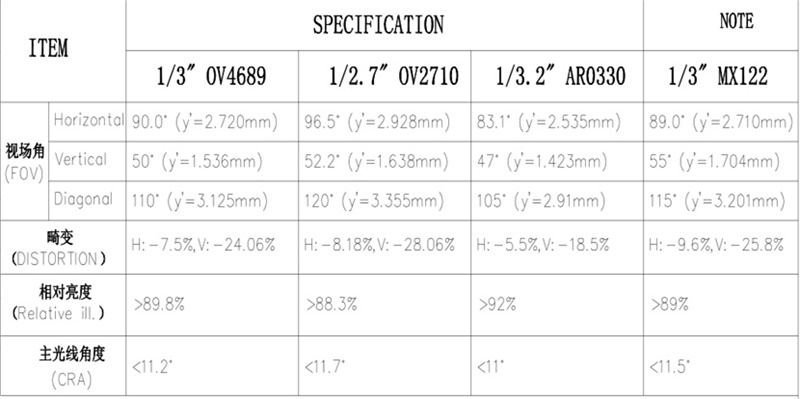

Technical datasheet of M7 China optical Lens
Application of our goobuy lens
1. Automotive side view lens, SVS lens, reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，
backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for face recognition, lens for robot, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens.
7, video conferencing camera lens
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
