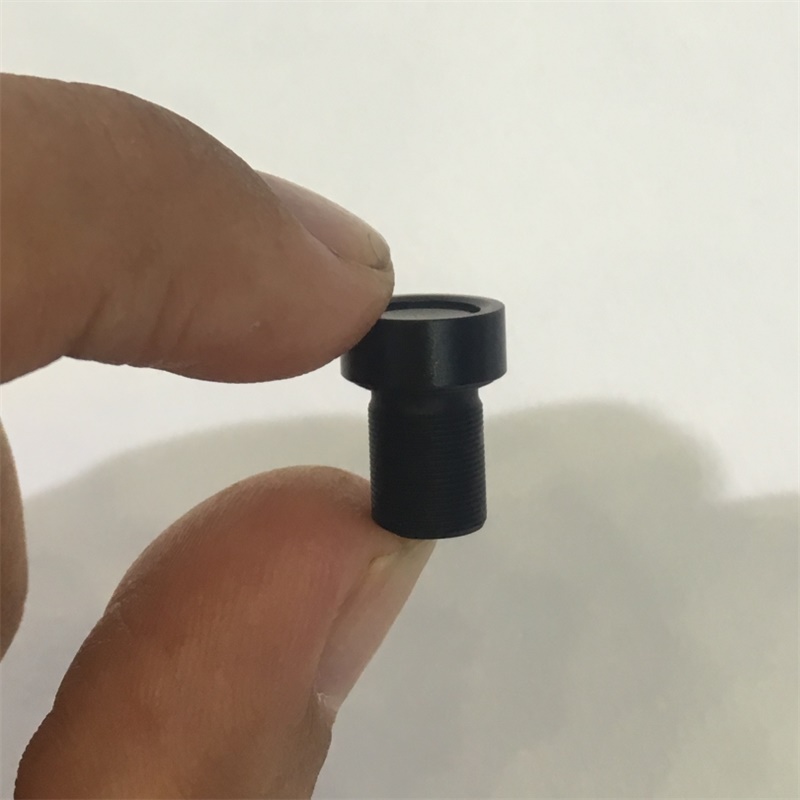

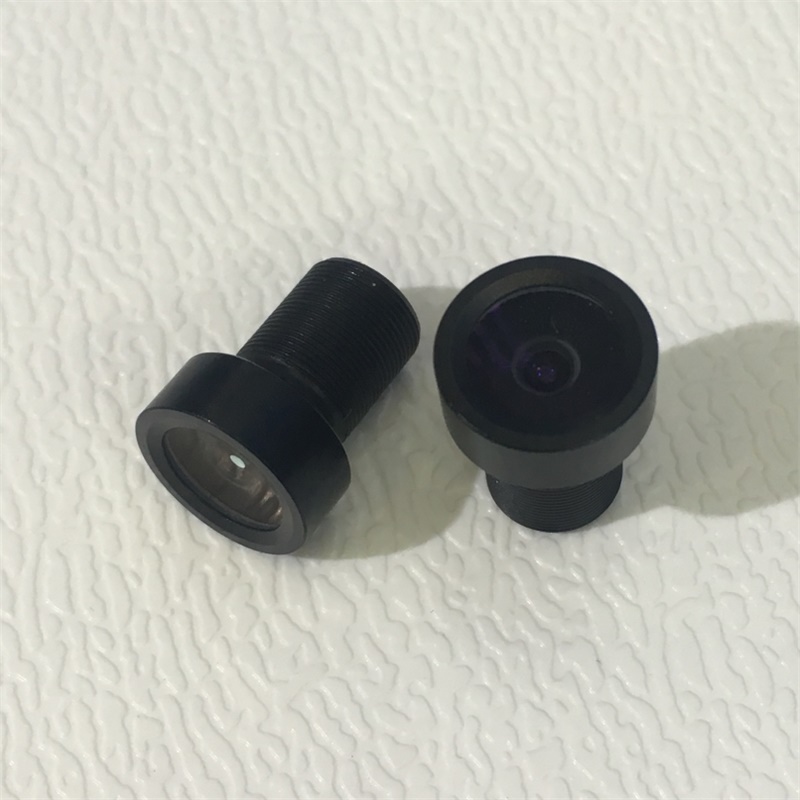

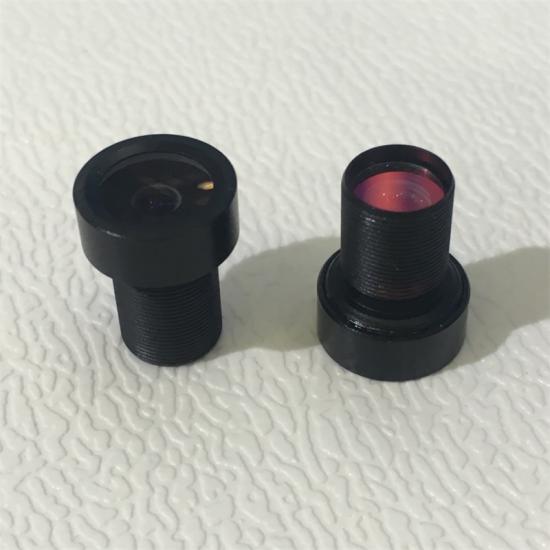

Product Name: 2.3mm EFL m7 mount lenses 4G glass F/No. 2.6 MBFL 1.5 TTL 14 DFOV
136 degree 1/4'' cmos sensor OV9712 8*8mm holder
Product Advantage
1,1/4 Hortizontal 105 degree Wide Angle CCTV lenses
2,IR-Correction for Day and Night Security Surveillance
3,Compact M7 Cmos Camera Lens Wide Angle
Product Specification
keying technical feature of 2.3mm m7 lens
1，TTL: 14mm
2, EFFECT Focal length: 2.3mm
3, Aperture F/No: 2.6
4, Optical Back Focal Length: 3.4mm
5, Mechnical Back Focal Length: 1.5mm
6, Max image circle: C5.1
7, FOV (D/H/V): 136/105/60.6
(1/4 OV9712 Sensor)
8, Optical Distortion: H:-10.7%, V:-36.5%
9, Relative illumination: >83.5%
10, CRA: <18 degree
11, mount type: M7*P0.35
12, Lens construction: 4G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, Diameter of lens cap: C10

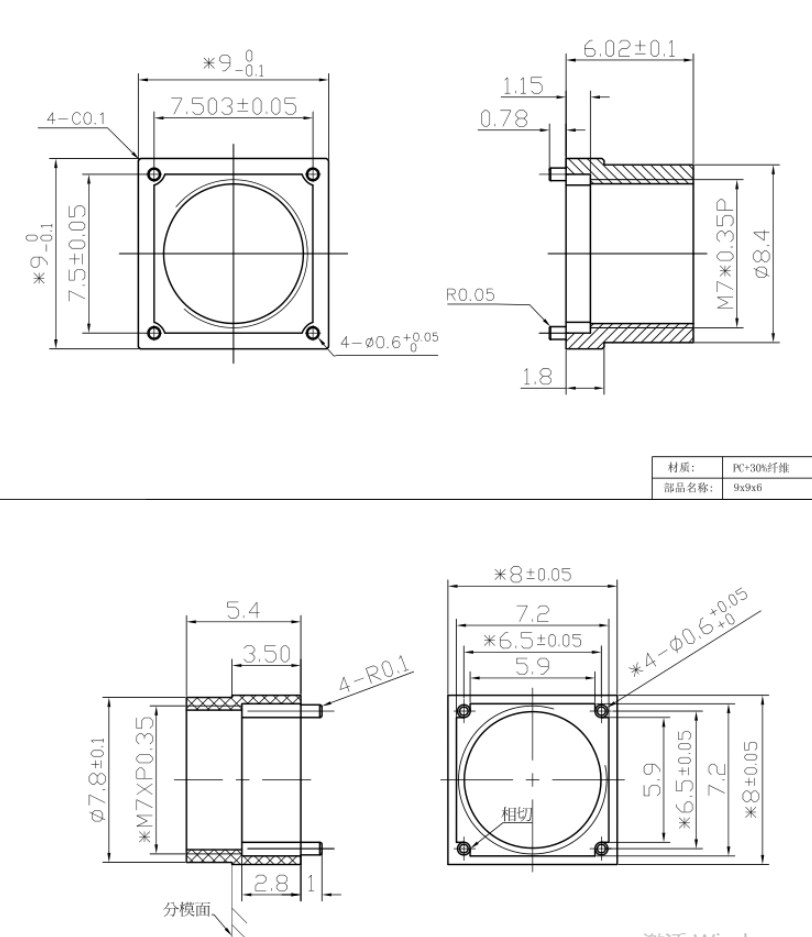

17, size of lens holder: 8*8mm

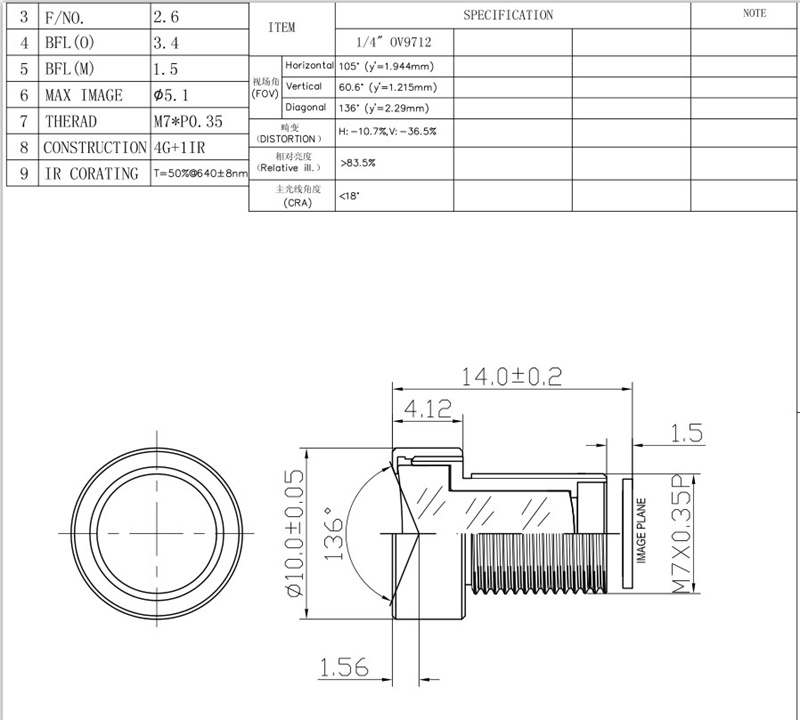

technical datasheet of 2.3mm Lens Wide Angle
Product Application
1, Lens for CCTV Camera Lens
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Custom-made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
