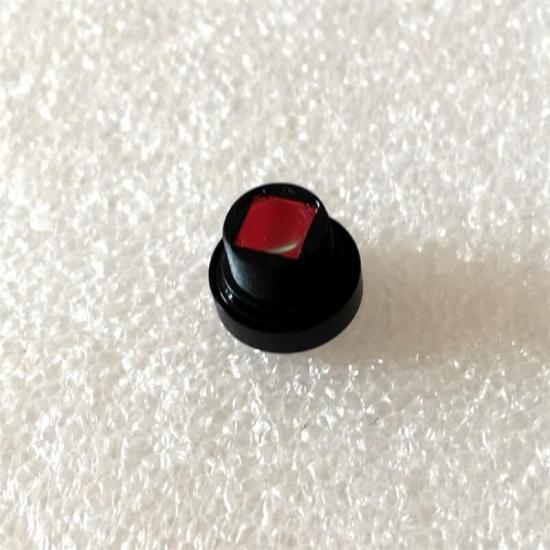

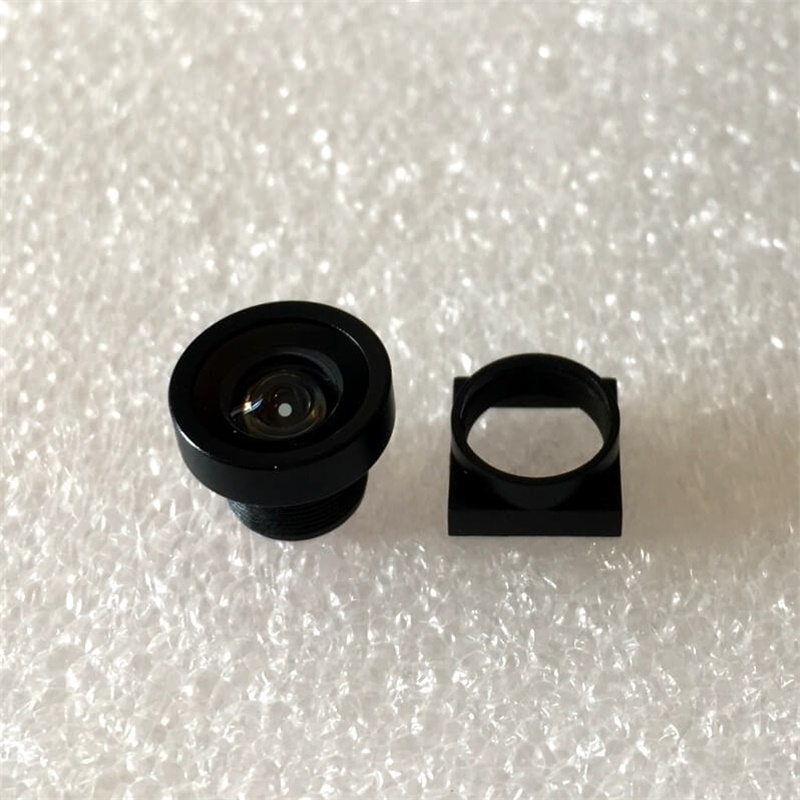

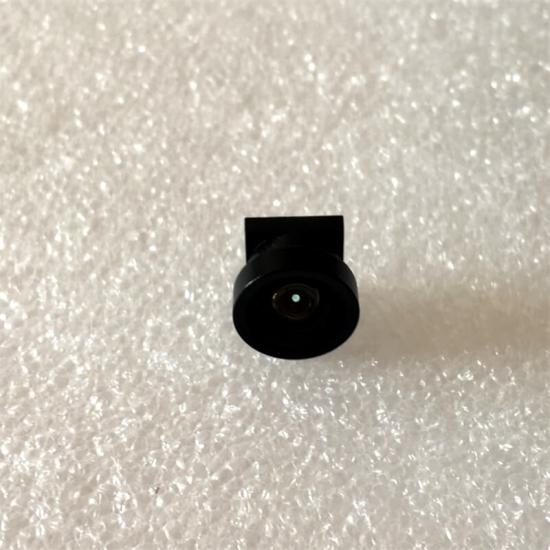

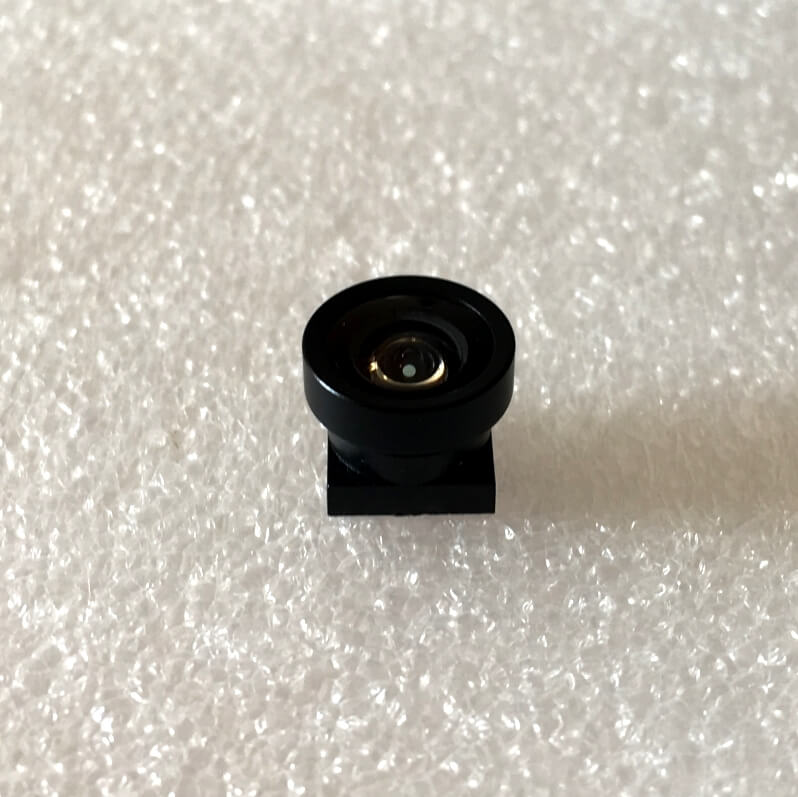

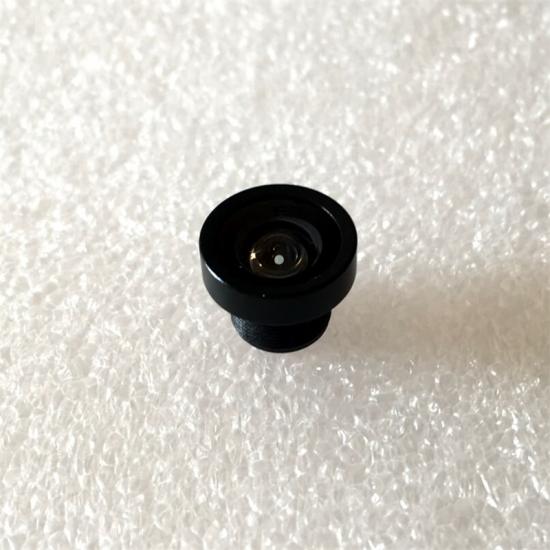

Product name: 1/4'' OV7725 1.70mm M7 Plastic Camera Lens DFOV 170 work as vehicle reversing rearview lens
product advantage
1, 1.7mm fixed focus wide angle lens M7 Lens mount
2, 1/4'' horizontal 120 degree used as Car Reversing Lens
3, 170 degree Wide Angle M7 used as smart home camera lens
4, low distortion, compact M7*P0.35 design, Pinhole Lenses

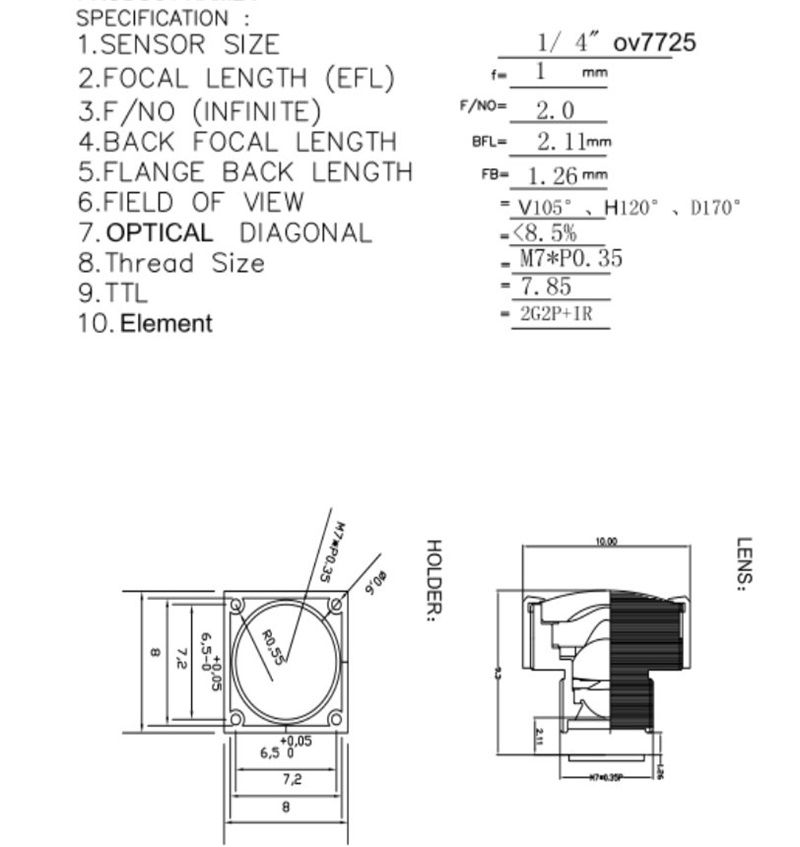

Product Specification
Technical Feature of 1.7mm M7 Pinhole Lens
1.SENSOR SIZE： 1/4" ov7725
2.FOCAL LENGTH (EFL)：1.7mm
3.F/NO (INFINITE)：F/NO= 2.0
4.BACK FOCAL LENGTH: 2.11mm
5.FLANGE BACK LENGTH: 1.26mm
6.FIELD OF VIEW: D170/H120/V105 degree
7.OPTICAL DISTORTION: <8.5%
8.Thread Size: M7*P0.35
9.TTL: 7.85MM
10.Lens structure: 2G2P+IR Plastic Camera Lens
11,Size of Lens holder: 8*8mm
12, Size of Lens Cap: C10mm
Product Application
1, Lens for Endoscope Camera Lens
2, Lens for Mini video Camera
3, Lens for Mini DV recorder
4, Lens for Car Rearview Camera Reversing Lens
5, Lens for Smart Home Camera Lens
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop.
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
