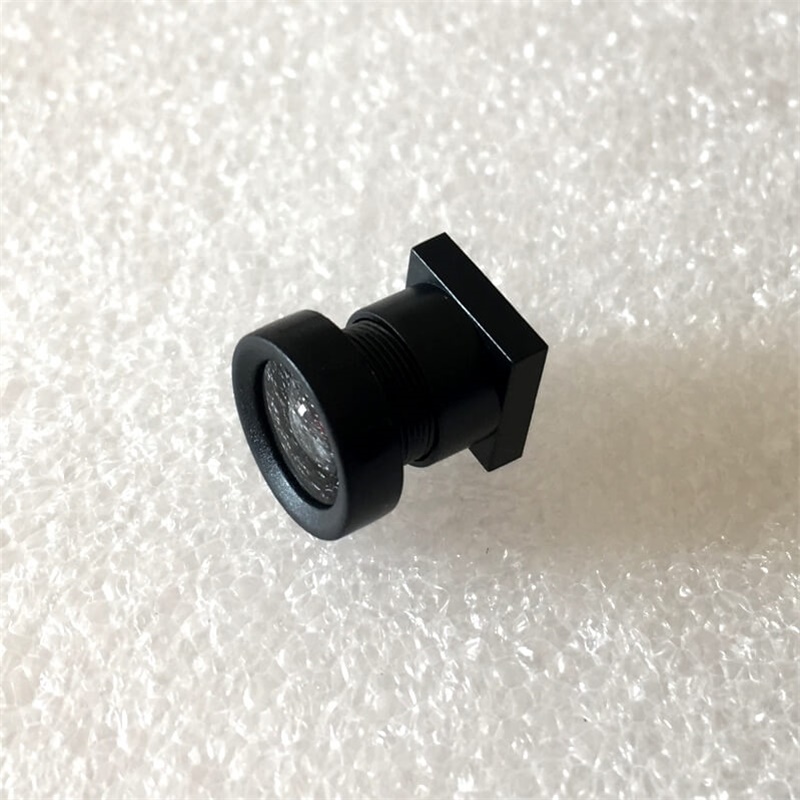

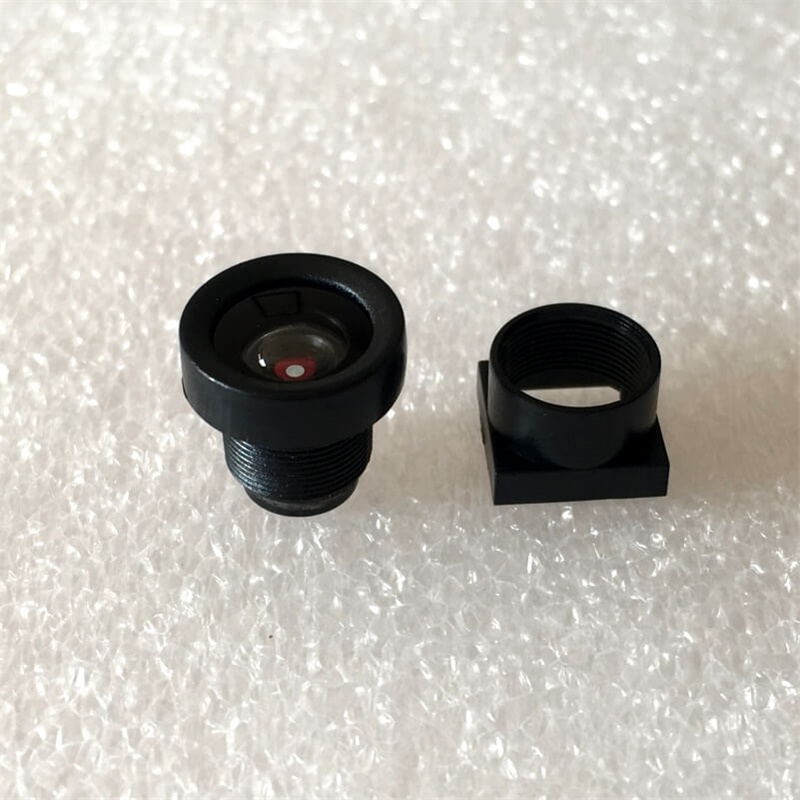

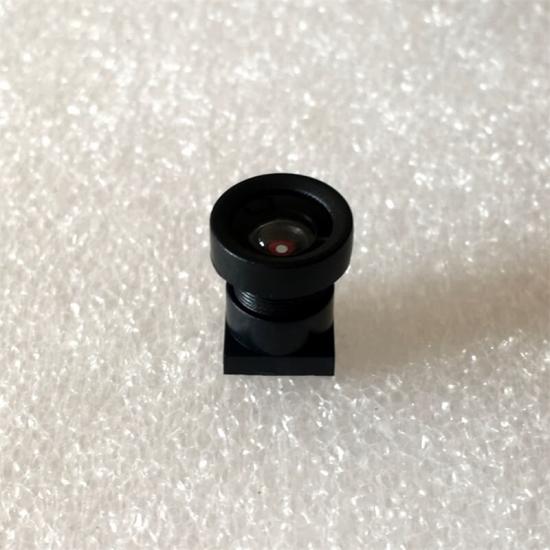

Product Name: 2.1mm M7 Wide Angle Lens fov 110 degree Low Distortion
Product Advantage:
1. 2.1mm fixed focus 110 degree Wide Angle lens M7
2, 1% Very low distortion Wide Angle Lens
3, All Plastics Lenses 6P design, good pricing, 100% made in China lenses
Product Specification:
Technical Feature of 2.1mm Lens M7 mini
1，Focal Length: 2.1mm
2, DFOV （View Angle）: 110 degree
3, Aperture F/No: 2.6
4, Back Focal Length: 1.20mm
5, Lens Construction: 6P+IR

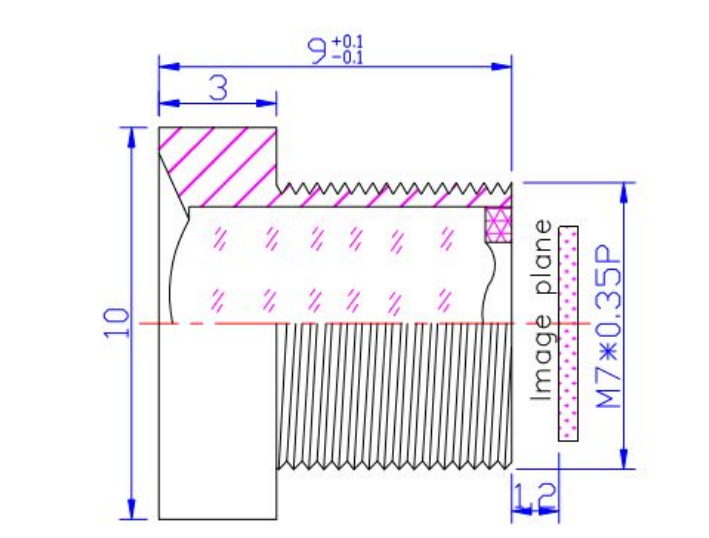

6, Lens Dimension: C10*9.0mm
7, Mount Type: M7*P0.35
8, Sensor Size: 1/3''
9, IR Coating: 650nm
10. M.O.D: >20mm
11, TV Distortion: Less than -1.0%
12, TTL: 9mm
Product Application
1, Lens for Car backup/rearview/parking Camera
2, Lens for dual Lens Car DVR Black Box Camera
3, Lens for Mini Video Recorder
4, Lens for Mini Consume Electronics Camera
5, Lens for any Camera that need compact Mini design
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers
that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc
