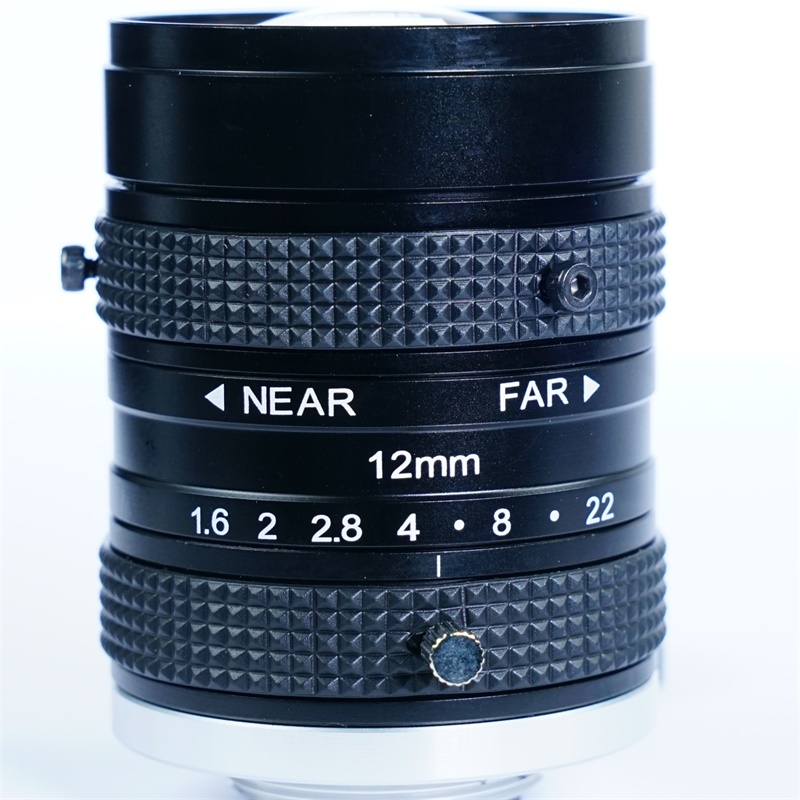

Product Name: 12mm 1 inch Industrial Lens C Mount For Factory Automation FA
Product advantage:
1,Large aperture, starlight imaging lens F1.6, Large Image Cmos 1 inch Manual FA Lens
2,Multi-layer coating, with higher transmittance and effective suppression of stray light
3, Use high refractive index and low dispersion precious glass, high resolution imaging optics
4, Applied to 1" high pixel Industrial camera
5, 1 inch High Resolution Lens Widely used in Industrial Quality control cameras, Machine vision cameras, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics Industrial Surveillance and Security, Commercial CCTV Camera etc
Product technical Specification of 12mm 1 inch 5MP Lens
|
Product Model |
NWA-1-12mm-5MP |
|
Image Cmos Sensor Format |
1 inch |
|
Photo Resolution |
5mp |
|
Focal Length |
12mm |
|
Aperture |
F1.6~22 |
|
FOV(D×H×V) 1 inch cmos |
D68.8°/ H57.1°/ V44.1° |
|
FOV(D×H×V) 2/3 inch cmos |
D50°/ H40.6°/ V30.9° |
|
TV Distortion 1 inch |
-2.78% y=8mm |
|
TV Distortion 1 inch |
-1.70% y=5.5mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.2m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
63.32mm |
|
Mount type |
C mount |
|
Filter Thread |
/ |
|

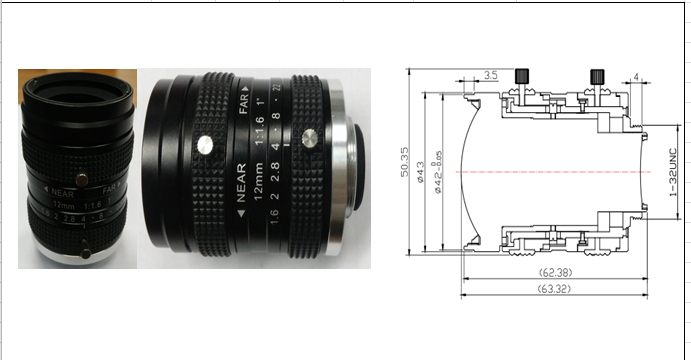

External Dimensions(mm): |
∅43*L62mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
1 inch Industrial camera lens applications
Industrial lenses are widely used in industrial machine vision and image processing systems such as industrial identification, industrial inspection, industrial measurement, high-precision measurement, inspection, identification, industrial monitoring, instrumentation, microscopic imaging, machine vision, 3D scanning, biometrics, etc. It is widely used in semiconductor machinery parts, scientific research, image processing, electronics, automotive medical packaging, military manufacturing and other industries
Specific applications are as follows: Chip, wafer surface detection, one-dimensional code, two-dimensional code recognition; object surface scratches, text and other detection; metal surface, bearing, beverage cans engraved character detection; MARK point positioning; night/day safety equipment; solar panels; Semiconductor; wafer inspection; peripheral monitoring; machine vision; medical applications; biometric technology; aerial surveillance; food sorting. Application areas include surface and continuous logistics inspection, intelligent transportation systems and traffic law enforcement systems, text reading, mail sorting, measurement (2D/3D), medical imaging, biometrics, and aerospace and defense.
Custom made Lensese
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。
welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
