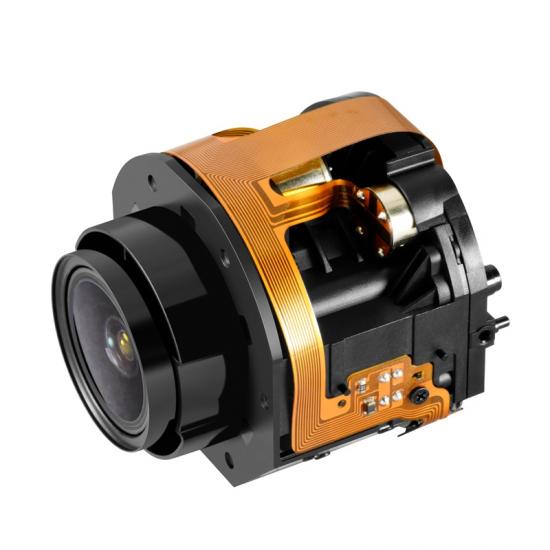

Product Name: 1/1.8" 4-10mm 8MP motorized Zoom Lens Zoom Module
Product Advantage:
1, Support Large Format up to 1/1.8" Cmos Sensor
2, 4K 2.5X Zoom used for Video Conference Camera Lens， 4-10mm Zoom Lens Module
3, Stepper Motor Drive and Motorized Zoom Module
Product Specification

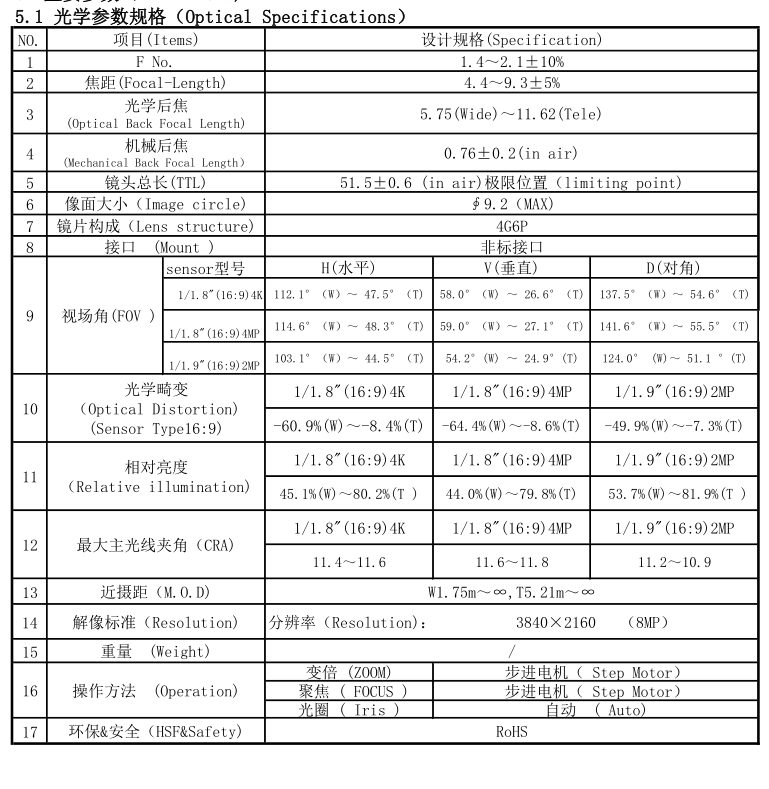

optical specification of 4-10mm motorized Zoom Module
1A, Zoom Ratio: 2.5X Optional Zoom (high speed Auto Focus)
1, Effective Focal length: 4.4～9.3±5%
2, Aperture F/No: 1.4～2.1±10%
3, Optical back focal length (OBFL): 5.75(Wide)～11.62(Tele)
4. Mechanical back focal length (MBFL): 0.76±0.2(in air)
5. TTL: 51.5±0.6 (in air)（limiting point)
6, Max image circle: ∮9.2（MAX)
7, Lens structure: 4G6P
8, Mount type: not standard mount type
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/1.8"(16:9)4K
DFOV 137.5°（W）～ 54.6°（T)
HFOV 112.1°（W）～ 47.5°（T)
VFOV 58.0°（W) ～ 26.6°（T)
11, Optical Distortion Sensor Type16:9
1/1.8"(16:9)4K-60.9%(W)～-8.4%(T)
12, Relative illumination 1/1.8"(16:9)4K
45.1%(W)～80.2%(T ),
13, CRA: 1/1.8"(16:9)4K11.4～11.6
14, M.O,D.: W1.75m～∞,T5.21m～∞
15, MTF resolution: 3840×2160 （8MP）
16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Auto
17, HSF&safety: RoHS
Product Application
1, MiniPTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
6, Video Surveillance camera
