Shenzhen 7inch Vehicle Monitor Display For Trucks and Cars

Multi-functional 7 inch TFT LCD Truck Bus Monitor Display

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

  • H.S.Code:


  • Product Detail

Product name:Shenzhen 7 Inch LED Backlight TFT LCD Monitor Display for Vehicle Backup Cameras, Car DVD, Car Mp5 Player, Home Surveillance Camera, STB, Satellite Receiver and Automotive Video Device

Product Features of 7inch Automotive Monitor

1) 7" LED Backlight Color TFT LCD monitor. Works perfectly with car rearview cameras, supports Car DVD, surveillance camera, STB, satellite receiver and other video equipment.

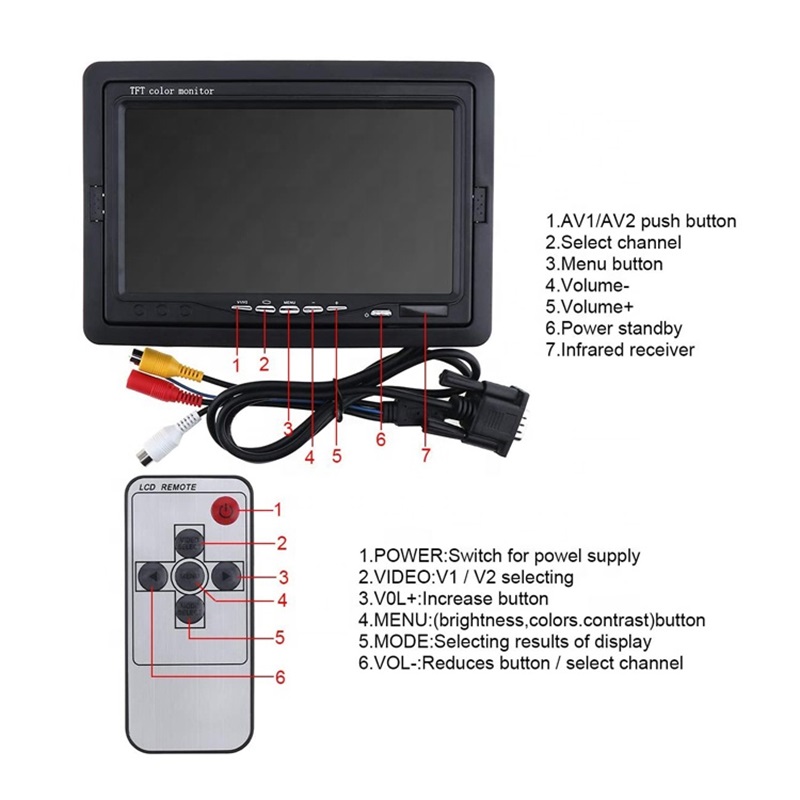

2) Screen rotatable. Screen ratio 16:9/4:3 adjustable. Brightness, contrast, color adjustable.

3) With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car rearview camera.

4) Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

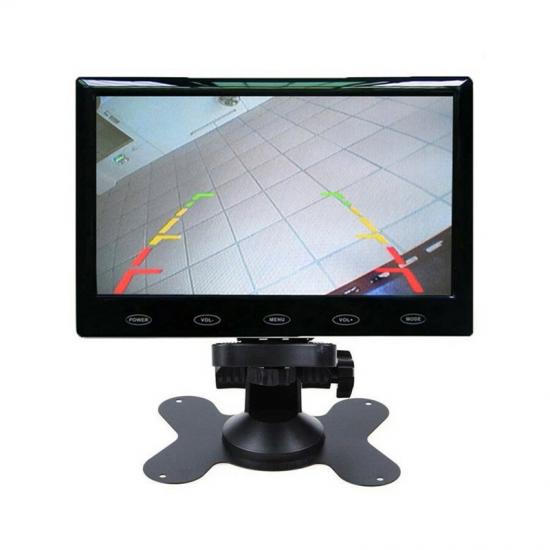

7Inch Ultra Thin TFT LCD HD Screen Car Rear View Reverse Parking Display Monitor

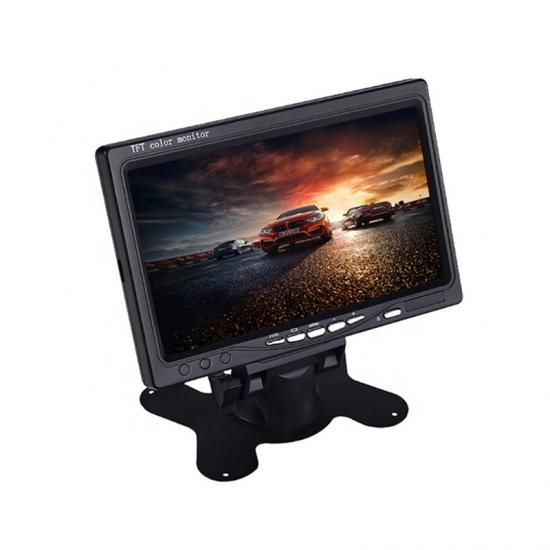

7 inch truck monitor

Product SPECIFICATION of 7inch Monitor Display For Trucks

The Backlight Color TFT LCD monitor with low power consumption and have 2 ways to install, standing or mounting, it is convenient to carry.

Parking rearview priority:

The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car;

the monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scene after that.

car monitor installment diagram

Screen Size: 7 inch

Low power consumption.

Display Component: Color TFT-LCD

Number of Dots: 480W * RGB * 234H

Contrast Ratio: 400:1

Response Time: B to W 30ms, W to B 10ms

Video Frequency: PAL/NTSC

Power: DC12V/24V

Consumption: 6W

Video: Two way video input ( 1Female and 1Male)

Housing: ABS

Color: Black

External Dimensions: 174 x 113 x 19mm (LxWxD)

Product weight: 379g

Package dimensions: 212x155x93mm

Package Weight: 415g

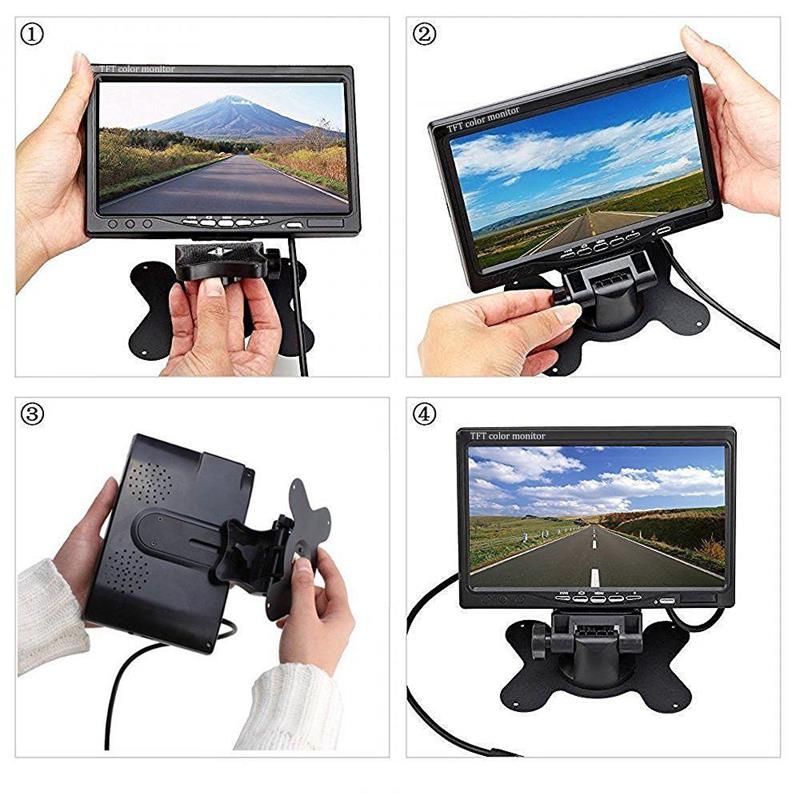

7inch vehicle monitor installment

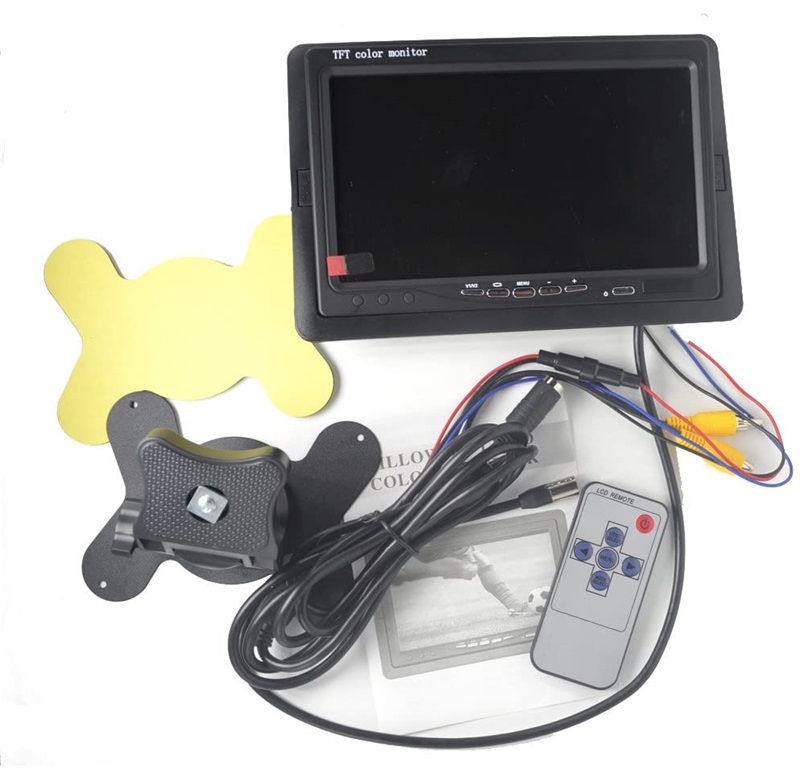

Package Included:

1 x 7" Car Monitor

1 x Holder, 1x Frame

1 x Video & Power Cable

1 x Remote Controller

1 x User Manual

tft lcd monitor for car

Product Application of 7inch Car Monitor

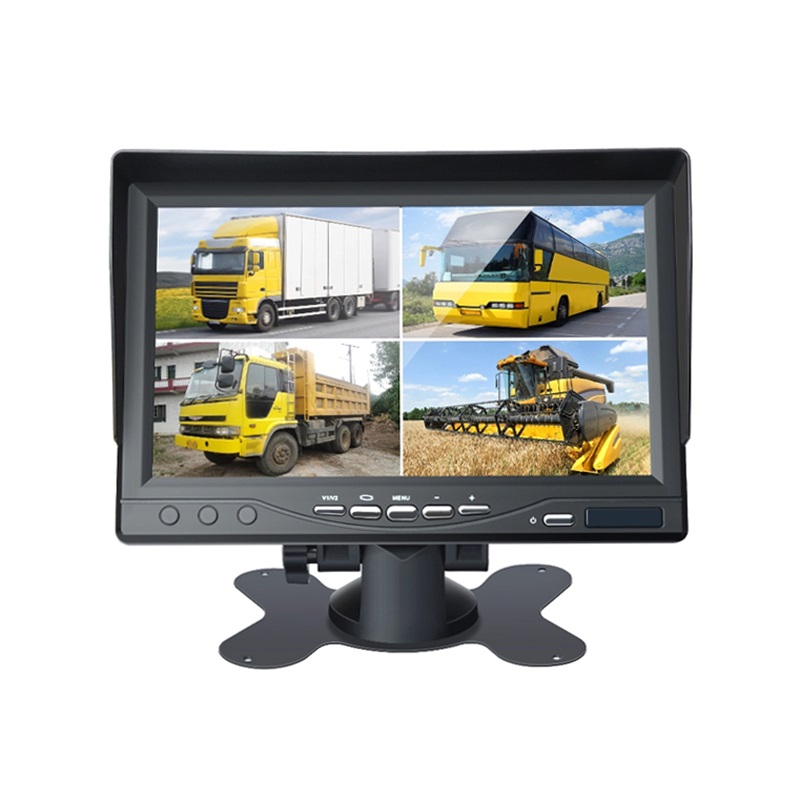

7inch Vehicle Screen Display  can work with Car Backup Camera, Front view Camera, Side View Cameras and also Mobile DVR 4G, then the driver can watch real-time Vehicle Driving or parking or rearview video easily well

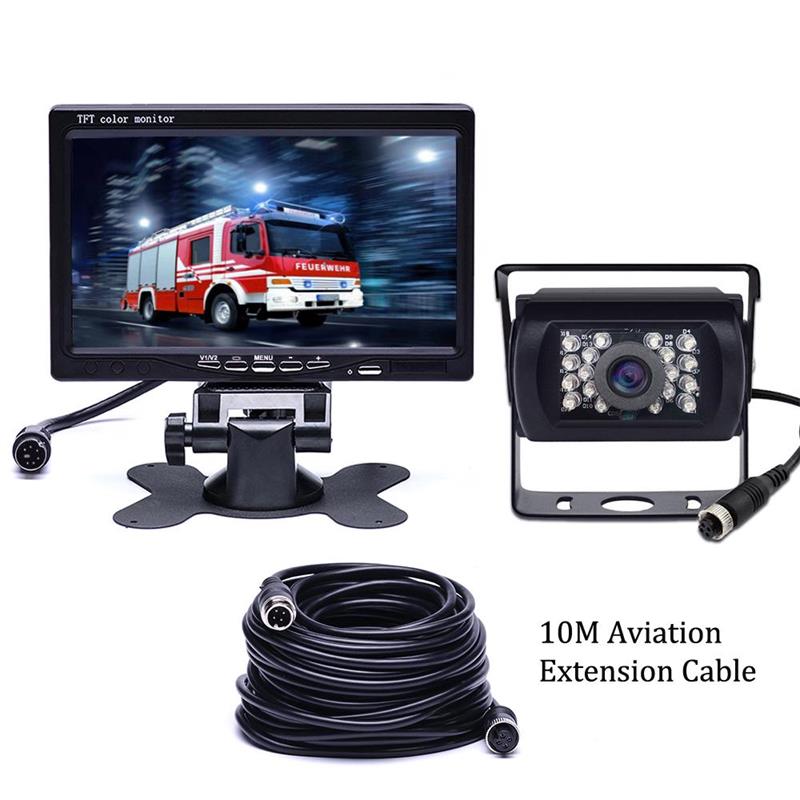

7inch Backup Camera Monitor Kit

Please note we also distribute 4.3inch foldable car monitor, 5 inch Vehicle LCD Monitor,8inch Car Monitor, 9 inch Truck Monitor, 10.1 inch Bus Monitor and 12.3 inch Commercial Vehicle Monitors too.  Meanwhile with our own-design private mold Vehicle Cameras, Reversing Cameras, AHD 720P Car Camera,  Sony CCD Cameras For Semi-Trucks etc
