4CH 9inch monitor and AHD Cameras For Commercial Truck Camera System

720P AHD Camera,  9 inch TFT Digital Monitor imported from Taiwan,

15 meter Cable, suit for All Semi Truck, Dump Truck, 18 Cheeler, Tow Truck etc

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Goods stock:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    4 channel wired Truck Camera Systems
  • H.S.Code:

  • MTF Resolution:

    1.3megapixels 720P HD

  • Product Detail

Product Name:  4ch 9’’ car monitor and wired vehicle front view+ rearview+ left side view+

Right side View Camera built up ideal  Semi Truck Camera System

This Truck Camera Systems enable Truckers drivers to see objects and people directly behind their vehicle easily and at first time. Rear view cameras make parking, driving and backing up a safer experience for everyone. It provides rear view safety to every commercial vehicle, prevents life and limb from risks and protects corporations' reputation and assets. We apply our expertise on safe driving to every industry that needs it, including: school buses, boats, transit buses, commercial trucks, home/RV, emergency, and industrial.

front camera for truck

Product Advantage:

Main Feature of 4CH 9’’ monitor + 4pcs AHD Cameras for Truck Camera System

1,Rear View Rearview Backing Backup Camera and Monitor Kit : Waterproof Camera With 18 Infrared Lights and Advanced Sensor & Night Version

2, Reverse Backup Car Dash Security Sensor Camera For Trucks RVS , Will Offer Much Safty Drive With It ,Extra Eyes on Trucks Behind and Side

3,Flexible Vehicle apply: Voltage Range From 12-24V DC Power to accomodate a Wide Variety of Large Vehicle as Semi-Trailer/Box Truck/5th Wheel/Trailer/Bus

4, AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.

5, Specially Designed for: RV Truck Box truck Semi truck Trailer Travel Trailer Bus heavy duty Camper Tractor, the 5th Wheel, Motorhomes .Wide voltage power input:9-36V DC Power. Support mirror image and rotate image.

Technical specification of 4 Way Dump Truck Camera System

Truck 4 Way Camera System

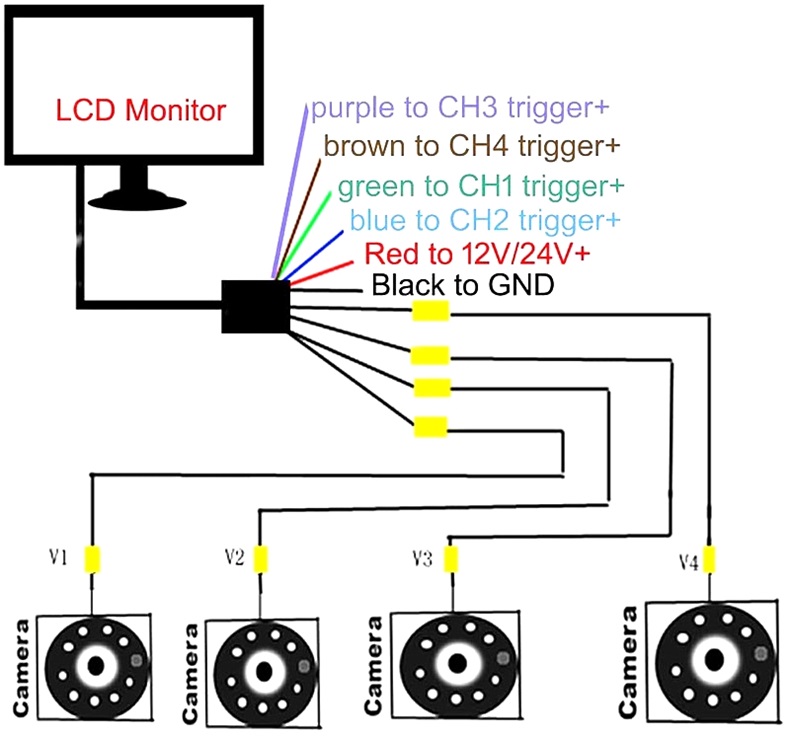

360 truck camera system installment diagram

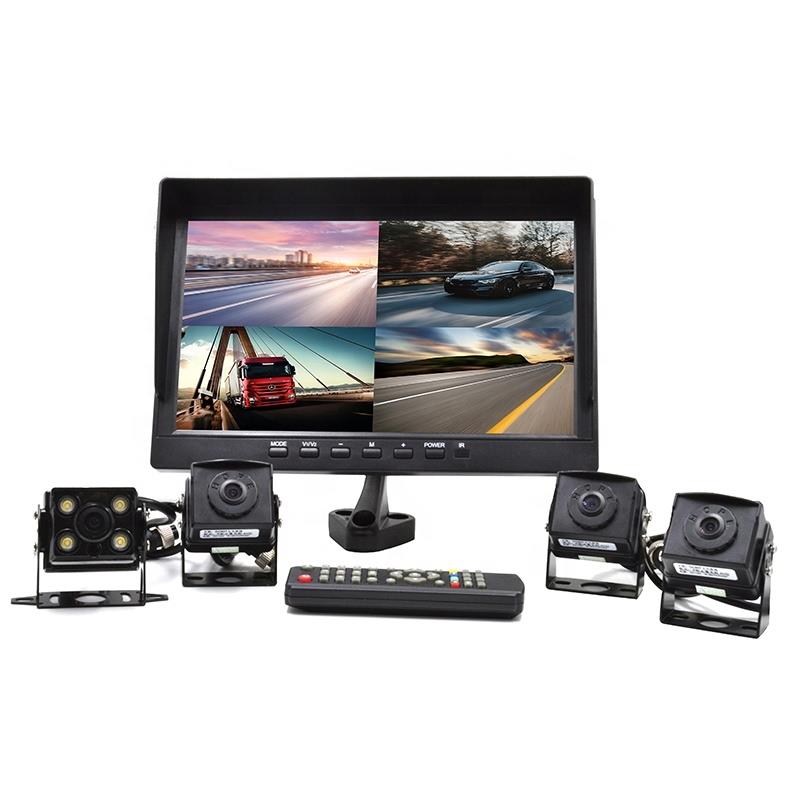

9" Quad Monitor Screen Display +4 Front Side Rear View Camera For Semi Truck BUS


Technical data

Product name

4channel Tow Truck Camera systems with 9’’ monitor

Video format

h. 264 compressed AVI format

Screen resolution

HD 1024*600 (IPS Panel)

Operating system

Linux system

Power supply voltage range


Video image format

CIF/DI /720P is optional

Video streaming standard

iso 14496-10

Audio input

supports audio input

Video input

Max. 4 Channels Input, support AHD or CVBS signal

Video data storage

Support up to 128G SD card storge, card RW speed in 80Mb/s or higher is required

Multimedia format

picture/music/video/document universal format

Multimedia sound output

Device uses radio frequency to transmit the audio to the radio of car, after receiving, it can have the sound output of the original factory sound quality

Display color temperature function

Can adjust the color effect according to customer preference

Operating Temperature:

-40 ~80

Net weight


Display effect mode

With noise reduction function display mode for large 3D LCD screen

camera Image Sensor:

1/2.9" CMOS

TV System:

PAL/NTSC (Option)

Horizontal Resolution


View Angle:




Sync. System:


Electronic Shutter:


Image Frame Rate

1080P@25fps / 1080P@30fps

Minimum Illumination:

0.01 Lux / F1.2



Operating Temperature:

20 ~ 75

Storage Temperature:

30 ~ 85

Net weight


Gross weight


Product packaging

Color box,250*165*67mm

Cover material


Semi Truck Camera System

Product Application

1,Truck 4 Way Camera System For Farm Tractor,Wheel Loader, Dumper, towed harvesters, combine harvesters, Agricultural Machinery,Forestry, Crop Sprayer, Cotton Picker

2, 4CH 360 Camera System For Passenger Bus, School Bus, City Bus, Travel bus, Coach bus, Sightseeing Bus,Airport shuttle, Autobus, Double Decker Bus, Tourist Bus,Tourist Coach

3, For Tube Train, Tube Transporter, Metro,Subway, Park Train, Bullet Train,

4 way Camera Systems Application

4, Commercial Truck Camera System For Heavy Equipment, Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck, Bulldozer, Vibratory Soil Compactor, Skid steer loader, Backhoe loader and other construction machinery, Telehandler, Crane Truck,  Dump Truck Camera System  etc

5,4 Channel Camera Systems For Fork-lifts, Electric forklift,Reach truck,VNA Truck, Counterbalance Truck,Reach Stacker,Empty Container Handler, Sideloader,Telehandler

4CH truck Camera system Video
