Product Name: 360 Degree Rotation Vehicle Side View Left Right Blind Spot Detection Cameras
4Pin Plug Side View Camera +5M Cable12-24V For Truck Caravan Bus
Product Features
* Waterproof, Can be used both in Bus Truck Caravan Motorhome
* 1200 TV Lines, Original Sony CCD ( Sharp CCD available)
* Support PAL or NTSC Video system, Easy to install
* Build with 12 IR LED, support night vision over 20ft
* 80° Angle view to cover left or right side viewing on vehicle
* Applicable to variety of Vehicles: car, truck, RV, Semi-Truck,School Bus, Van, Heavy Duty etc
* Can help avoid incidents and accidents abrasion well
Product Specificationof Truck Side View Camera
|
Item Name |
Technical Data |
|
Name: |
Sony Side View Camera For Trucks |
|
Image Sensor: |
½.9'' SONY/SHARP CCD |
|
TV System: |
PAL/NTSC (Option) |
|
Light Compensation: |
Infrared |
|
Horizontal Resolution: |
1200TVL |
|
View Angle: |
80° |
|
Waterproof: |
IP67 |
|
Sync. System: |
Internal |
|
Electronic Shutter: |
1/50-1/100000S,1/60-1/100000s |
|
Image Frame Rate |
50/60fps |
|
Minimum Illumination: |
0.001 Lux / F1.2 |
|
AGC: |
Auto |
|
White Balance: |
Auto |
|
Backlight Compensation: |
Auto |
|
Signal Output: |
CVBS or AHD |
|
Video Output |
1.0V P-P/75Ω |
|
Connector: |
RCA or 4Pin (Option) RCA or 4Pin (Option) |
|
Signal to Noise Ratio: |
≥46dB |
|
Mirror/Normal Image Adjustable |
Adjustable |
|
Parking Line: |
Triple Colors (Option),Adjustable |
|
Power Supply: |
DC12V or 9~36V(Wide Voltage Optional) |
|
Current Consumption: |
≥150mA |
|
Power: |
≥2W |
|
Operating Temperature: |
–20℃ ~ 75℃ |
|
Storage Temperature: |
–30℃ ~ 85℃ |
|
Light quantity |
no |
|
cover material |
Metal or ABS Plastic optional |

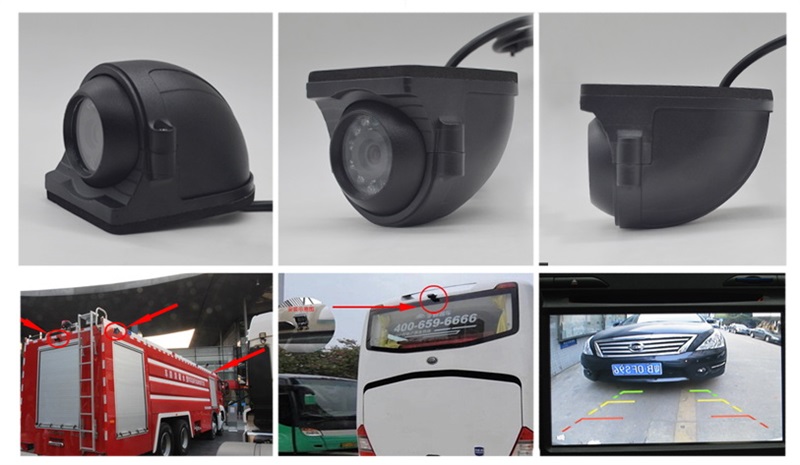

Product Application of CCD Vehicle Cameras
1,Passenger Bus, School Bus, Coach, Car, BV, van, lorry, Construction Vehicle, Car, SUV, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV Forklift, Harvester, Minibus, Corn Machine and all other commercial Vehicle etc.
2, This Multi-functional Dash Camera can work and be used on Articulated Truck, Backhoe Loader, Fuel Tanker Truck, Large Dumper, Medium Dumpter,
Rigid Truck, Drawabar Trailer, Small Rigid Truck, Tractor, Waste Truck, Wheel Loader, Heavy and Light Truck, Crane Truck, Semi-Truck, Commercial Truck, Skip Lorry, Counterbalance Truck etc
3, Road Sweeper, Telehandler, Tipper, Excavator, Hybrid Electric Van, Reach Stacker, Road Roller,
4, Dash Camera For Maritime Ship, Airport Vehicles,Airport Baggage Van,Delivery van Vehicle，Military vehicles, Aerial appliance / Ladder trucks, Jeep, Horse-Drawn Carriages
