IP68 Metal AHD Dome Conch Camera For School Bus Cabin CCTV

720P AHD,  designed for School and Passenger Bus specially, IP68 waterproof, Easy Installment, work with MDVR well, Cabin Camera For Bus


  • Item No.:

    T-204
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Color:

    black
  • Min order:

    50
  • Shipping port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Keying selling point:

    AHD Metal Conch In Vehicle Camera
  • H.S.Code:

    85258013
  • MTF Resolution:

    AHD 720P

  • Product Detail

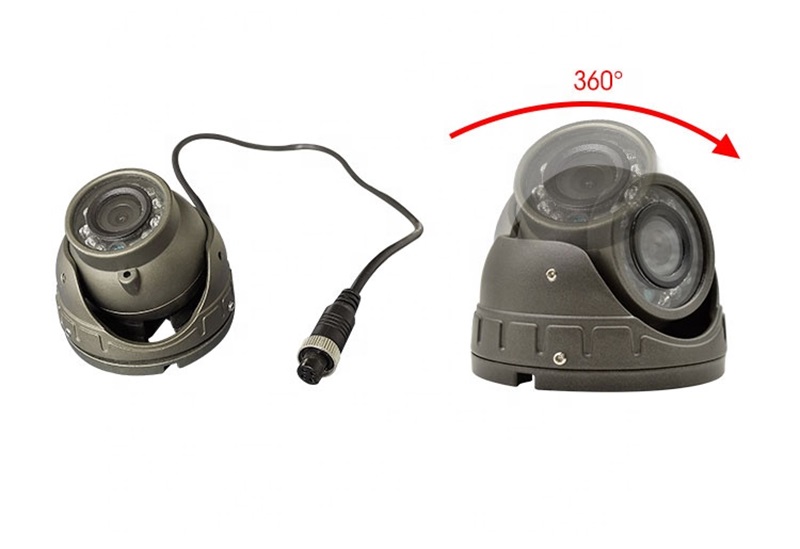

Product Name: 360 degree rotating 720P  IP68 metal cover conch School Bus Security Camera used for Bus interior Camera

In Vehicle Camera For School Bus


Product Advantage:

•It can work with School bus camera DVR system with audio

•Records on motion detection, schedule, or continuous record

•Metal Case Conch Camera, AHD 720P

•Easily connects to bus 12VDC power

•Complete school bus camera system with audio

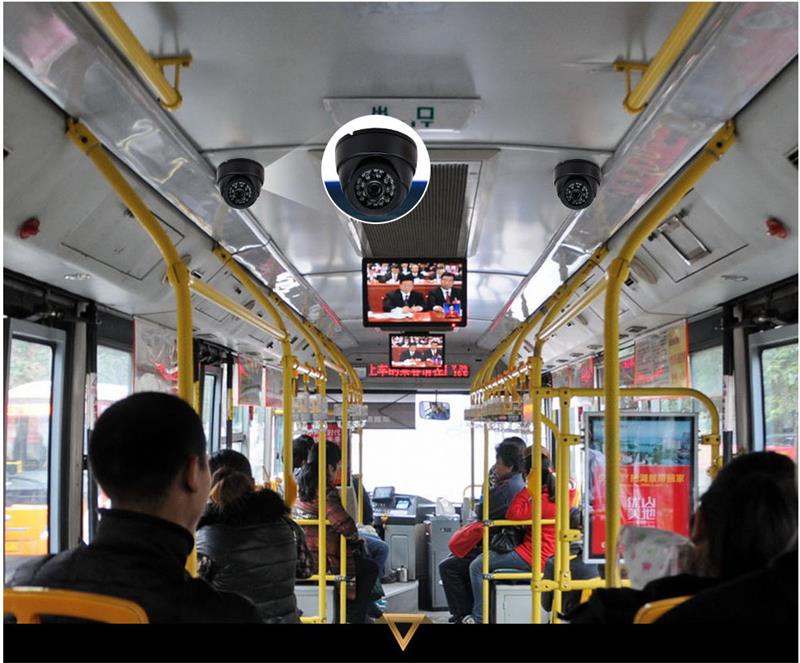

Bus interior Camera

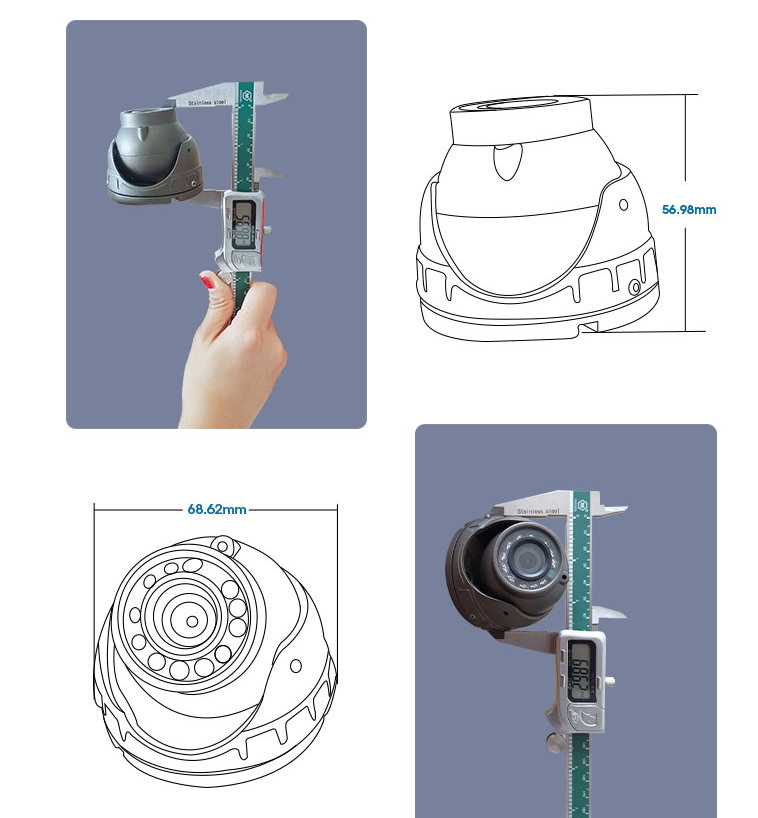

bus camera size

Product Specification of Bus Cabin Camera

Item Name

Technical Data

Name:

Metal Conch In Vehicle Camera For Bus

Image Sensor:

1/3'' CMOS

TV System:

PAL/NTSC (Option)

Light Compensation:

Infrared

Horizontal Resolution:

720P. (960P,1080P custom-made available)

View Angle:

60°,85°

Waterproof:

IP67

Sync. System:

Internal

Electronic Shutter:

1/50-1/100000S,1/60-1/100000s

Image Frame Rate

50/60fps

Minimum Illumination:

0.001 Lux / F1.2

AGC:

Auto

White Balance:

Auto

Backlight Compensation:

Auto

Signal Output:

CVBS or AHD

Video Output

1.0V P-P/75Ω

Connector:

RCA or 4Pin (Option)      RCA or 4Pin (Option)

Signal to Noise Ratio:

35dB

Mirror/Normal Image Adjustable

Adjustable

Parking Line:

Triple Colors (Option),Adjustable

Power Supply:

DC12V or 9~36V(Wide Voltage Optional)

Current Consumption:

150mA

Power:

2W

Operating Temperature:

20 ~ 75

Storage Temperature:

30 ~ 85

Light quantity

12 Light

Net weight

150.2g

Product Size

68.6*55*38.1mm

Product packaging

Color box,135*90*60mm

cover material

metal

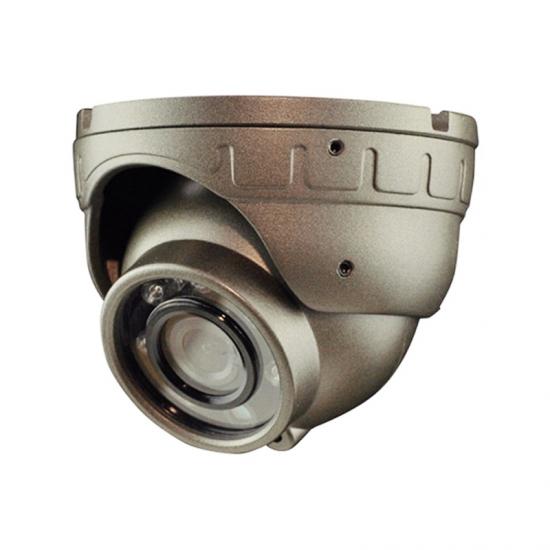

AHD Bus Camera
Product application of Dome Conch Cameras/Bus Security Camera

1, Passenger Bus, School Bus, City Bus, Travel bus, Coach bus,Sightseeing Bus,

Airport shuttle, Autobus, Double Decker Bus, Tourist Bus,Tourist Coach


2, Wired Metal Conch AHD Camera are widely used in Farm Tractor,Agricultural Machinery,Heavy Equipment、Maritime Ship、Trucks、Fork-lifts , Security Escort, Airport Vehicles,Electric forklift, Sightseeing Cars, Golf , Airport Baggage Van, Horse Trailer ,Crane, RV,Commercial Truck, Bus, Delivery van Vehicle,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment,HVG、Municipal Vehicle,Tube Train, Tube Transporter, Metro,Subway, Park Train,Bullet Train,Traffic patrol cars

bus cctv camera


Questions and answers:

1,What is a School bus cctv camera?

Our school bus camera system comes with a fully weatherproof armor dome color surveillance camera for use indoors or outdoors,15 foot power/video/audio cable, microphone and DVR. The system connects directly to the buses' 12VDC power system. You can choose to have it record constantly when powered up or only on motion detection.


2, why need Bus interior Camera in School bus and passenger bus inside?

Video surveillance on school buses is a must. Recorded time date stamped footage protects the children, the driver as well as the school itself. Our school bus camera system comes with a fully weatherproof armor dome color surveillance camera for use indoors or outdoors, 15 foot power/video/audio cable, microphone and DVR. The system connects directly to the buses' 12VDC power system. You can choose to have it record constantly when powered up or only on motion detection. Recordings are stored to a removable SD card inside of the DVR. You can easily fit 1 week of recordings on the included 32GB SD card. When full, it will simply overwrite the oldest recordings so you will always have the last week of recordings on your card. This system is audio capable. Using the included components, you can record both video and audio. Please note, however, that the audio portion does not have to be used and you can make this a video ONLY system quite easily. Parents will do just about anything to protect their own children. Having video surveillance in school buses in one way you can help. If there is ever an incident on a bus, you can offer an unbiased video account of whatever happened


3, what can bus cameras see?

Camera systems monitor student and driver behavior during routes, and record the external environment. School bus cameras can capture bullying between students as well as accusations against the driver. With video footage, you no longer have to resolve conflicting stories about interactions on the bus.


4, Can school bus cameras see in the dark?

The cameras have infra-red capability, allowing visibility even in the dark. This will allow district administrators to see what was going on aboard a late bus in winter. Each of the cameras continue to operate for 15 to 20 minutes after the bus is parked and the engine is shut off. The cameras also record sound.
