Product Name: China Shenzhen factory R&D and Manufacture Aftermarket Rear view Camera/backup Camera, Reversing Camera For all kinds of vehicle and Trucks
Surveillance 720p Truck Mounted In-car and Side View Rotated Waterproof AHD Vehicle Camera
720P AHD Night Vision Wide Angle truck Van vehicle Cabin Backup Bus Camera
Product Advantage: Easy installment, Easy rotating, Easy adjust, 2021 newest launched private mold from Chinese Shenzhen factory, 100% our own-design by Chinese R&D engineer
AHD Technology For Automotive Camera Vehicle
AHD technology can realize reliable transmission of ultra-long-distance (500m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. Compared with the traditional CVI signal, AHD's surveillance image quality and the resolution can be equal to the HD 720P and 1080P level. . Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction. . Zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity. . Compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.) Highly integrated AHD Front-end chip, 2021 Year New high-definition quality products.

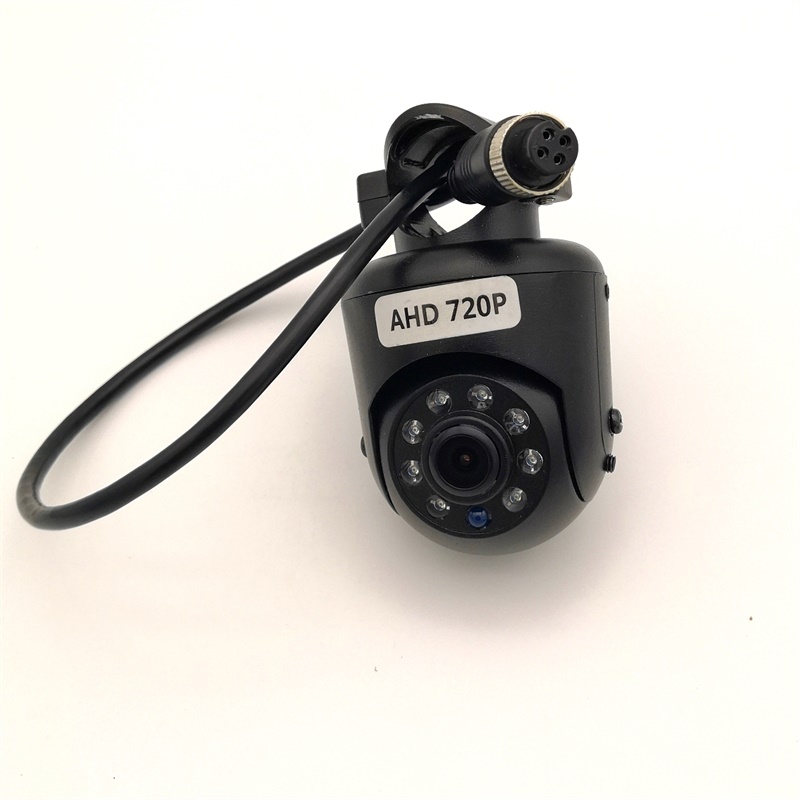

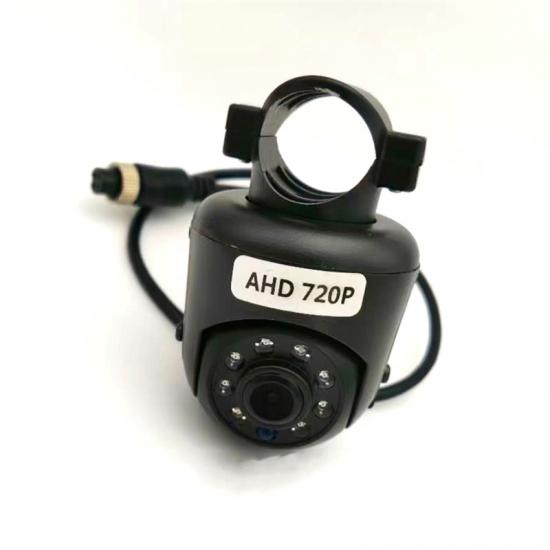

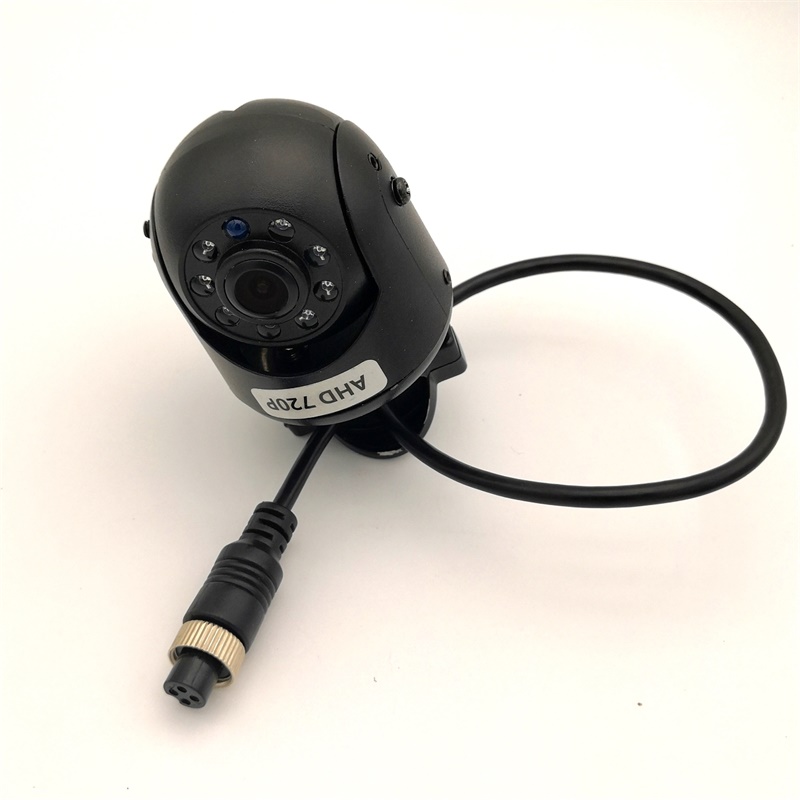

1280*720P AHD Camera
(Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD level.
AHD-M (TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
AHD Infrared IR Night Vision HD Car Truck Bus Rear View Front Side Camera For Bus Vehicle Monitor
|
Product Name |
China new 720P Aftermarket Rear View Camera For Truck and Vehicle |
|
Sensor |
1/3" AHD CMOS Sensor from Taiwan |
|
Resolution |
1280*720@30fps |
|
Effective Pixels |
1.3 Megapixels |
|
Lens |
2.8mm/3.6mm For Optional |
|
View Angle |
120° |
|
IR LED |
9pcs IR LED Lights |
|
IR Distance |
10m |
|
Special Unique Feature |
NIGHT VISION, shockproof and loose-proof |
|
Brightness |
Auto/Manual |
|
Contrast |
Auto/Manual |
|
Compression |
H.264/H.265 |
|
TV System |
NTSC/PAL |
|
Shutter Speed |
PAL:1/50s~1/100.000s;NTSC:1/60s~1/100.000s |
|
Connector |
Appropriate aviation connector |
|
Waterproof |
IP69 |
|
Video Output Level |
1.0Vp-p (BNC 75Ω composite) |
|
Working temperature |
-10℃ ~ +60℃ |
|
Power Supply |
DC 12V ±5%, 150mA,1.8W |
|
Application |
Side View Camera, Mount top hang on vehicle |
|
Dimension |
100gram |
Product Application:
2021 Newest AHD Aftermarket Vehicle Cameras can be work and used for Farm Tractor，Agricultural Machinery，Heavy Equipment、Maritime Ship、Trucks、Fork-lifts , Security Escort, Airport Vehicles，Electric forklift, Sightseeing Cars, Golf , Airport Baggage Van, Horse Trailer ,Crane, RV, Commercial Truck, Bus, Delivery van Vehicle，Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment，HVG、Municipal Vehicle，Tube Train, Tube Transporter, Metro, Subway, Park Train, Bullet Train，Passenger Bus, School Bus, City Bus, Travel bus, Coach bus, Tourist bus, Traffic patrol cars
