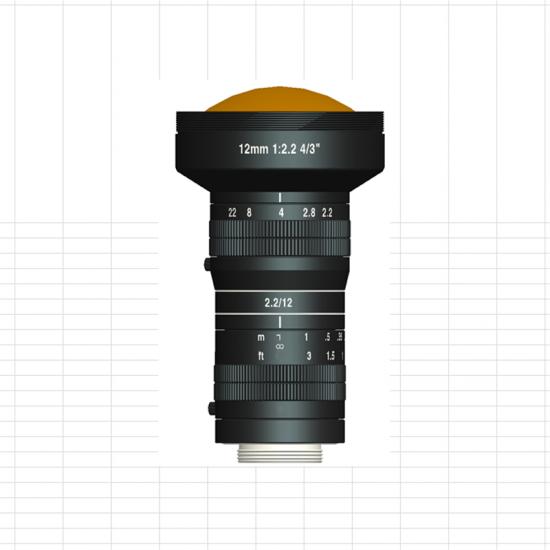

Product Name: Factory outlet 4/3’’ Format Manual Iris 12mm Industrial Lens
Product advantage:
1, Variable Iris Lens From Large aperture F2.2 to Smallest F22 (creat good depth of View)
2,Multi-layer coating, with higher transmittance and effective suppression of stray light
Use high refractive index and low dispersion precious glass, high resolution imaging optics
3, Applied For 4/3" 4K/10MP/12 megapixel Industrial camera/Machine Vision System
4, 12mm Industrial Camera Lens Widely used in Industrial Quality control cameras, Machine vision cameras, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, other industrial or Commercial applications etc
Product technical Specification of 12mm Machine Vision Lens
|
Product Model |
NWA-43-12MP-12mm |
|
Image Cmos Sensor Format |
4/3 inch |
|
Photo Resolution |
12MP |
|
Focal Length |
12mm |
|
Aperture |
F2.2~22 |
|
FOV(D×H×V) 4/3’’ cmos sensor |
D88.8°/ H76.86°/ V61.3° |
|
FOV(D×H×V) 1 inch cmos sensor |
D68.6°/ H57.6°/ V44° |
|
TV Distortion 4/3’’ cmos sensor |
-2.4%@y=11.5mm |
|
TV Distortion 1 inch cmos sensor |
-1.78%@y=8mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.15m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
96.34mm |
|
Mount type |
C mount |
|
Filter Thread |
M67xP0.75 |
|

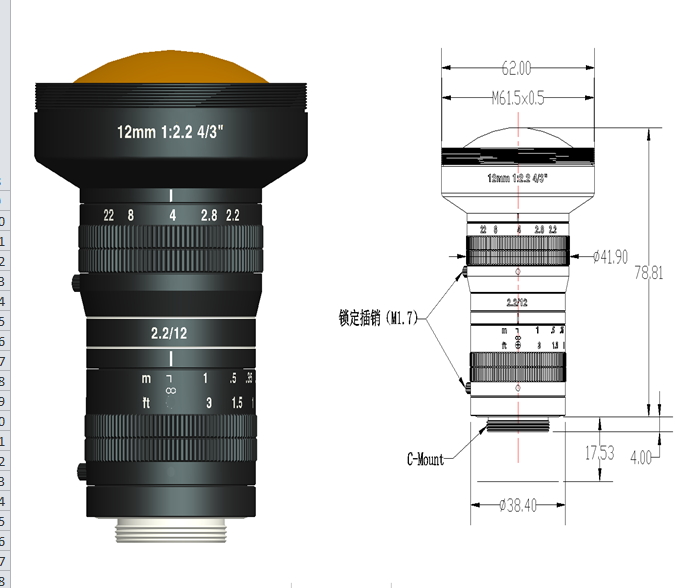

External Dimensions(mm): |
∅62*L82.8mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application of 12mm Industrial lens
1，Lenses For Industrial Inspection
2，Lenses for Machine Vision Applications
3，Lens for industrial photography, Industrial Security and Surveillance
4, Industrial Lenses For Image Processing
5, 12mm C-Mount Lenses for Industrial Quality Control Cameras
4/3 Camera Lens applications
Industrial lenses are widely used in industrial machine vision and image processing systems such as industrial identification, industrial inspection, industrial measurement, high-precision measurement, inspection, identification, industrial monitoring, instrumentation, microscopic imaging, machine vision, 3D scanning, biometrics, etc. It is widely used in semiconductor machinery parts, scientific research, image processing, electronics, automotive medical packaging, military manufacturing and other industries
Specific applications are as follows: Chip, wafer surface detection, one-dimensional code, two-dimensional code recognition; object surface scratches, text and other detection; metal surface, bearing, beverage cans engraved character detection; MARK point positioning; night/day safety equipment; solar panels; Semiconductor; wafer inspection; peripheral monitoring; machine vision; medical applications; biometric technology; aerial surveillance; food sorting. Application areas include surface and continuous logistics inspection, intelligent transportation systems and traffic law enforcement systems, text reading, mail sorting, measurement (2D/3D), medical imaging, biometrics, and aerospace and defense.
CUSTOM-MADE INDUSTRIAL CAMERA LENS / FA LENSES
Goobuy provides a selection of various custom options for new and existing Industrial Camera Lenses. We also welcome any unique or personalized requests, new idea, new technical drawing, New Design, development, prototyping, and mass production are offered at reasonable competitive prices and fast R&D time of course reliable quality.
Customization options include, but not limited to:
Specific cmos sensor requirements, Focal Length ( fixed or Manual Zoom Varifocal)
Auto DC or Fixed Iris Aperture, different angles of view FOV, infrared solutions, High/low temperature rated, MTF resolutions, Distortion, TTL, OBFL, Mount type, Focusing type, MOD, Lens Dimension, Lenses Structure etc.
Welcome to send us your technical drawing or request or share more details with us to discuss then evluate it for Customization
