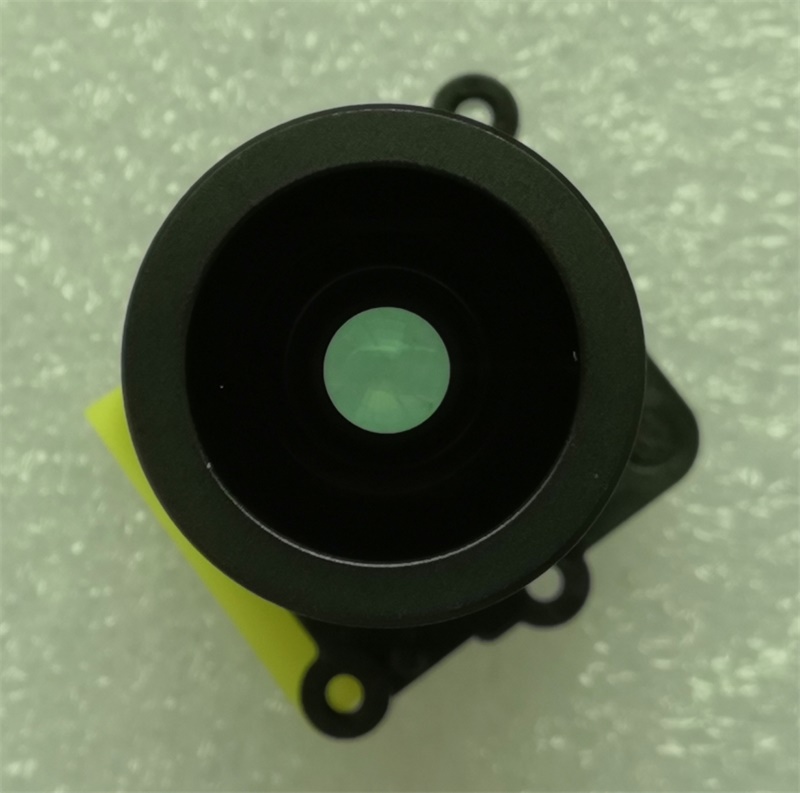

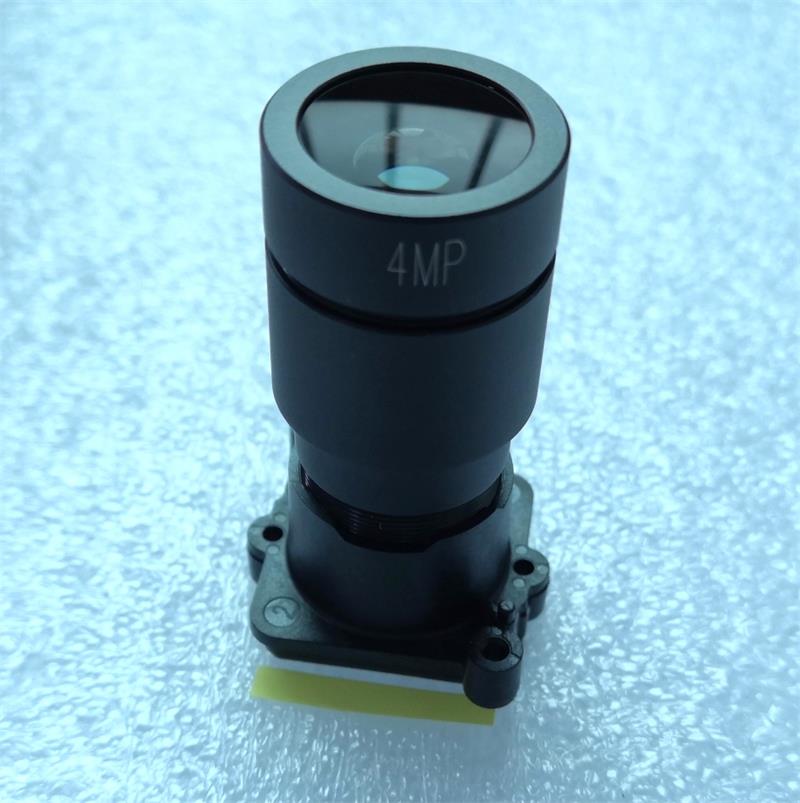

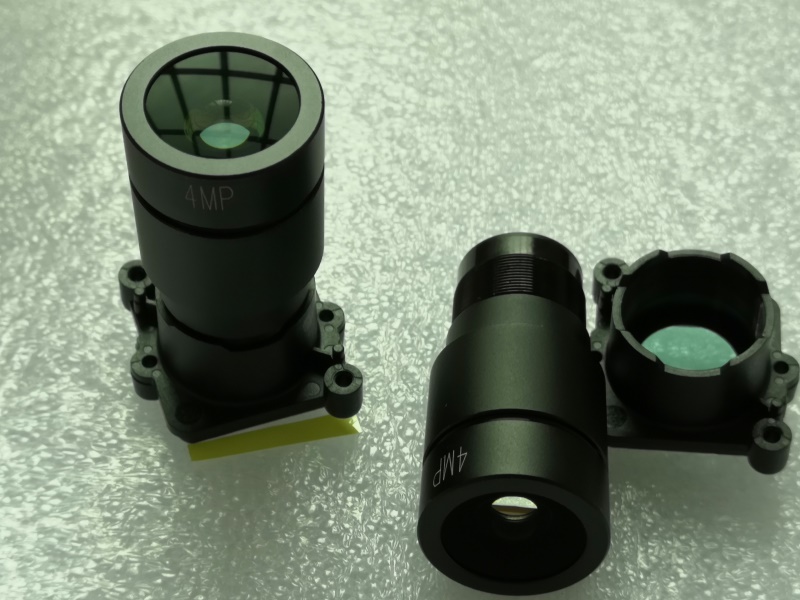

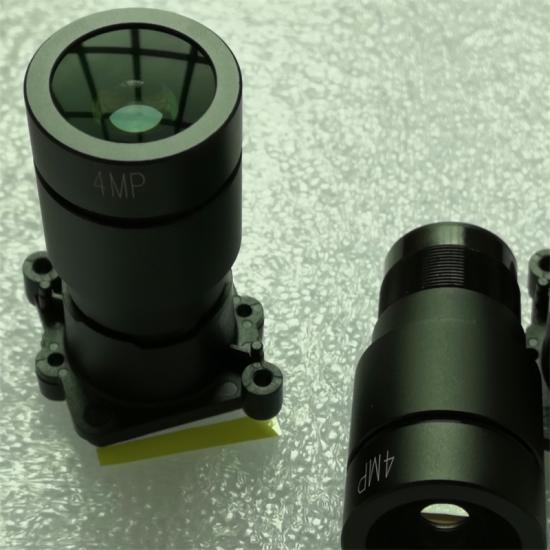

Product Name：5.17mm m16 dark light f1.0 lens, 1/1.8'' super starlight cctv lens 4MP
Product Advantage:
1, work and comply with Hikivision Darkfighter and Dahua CCTV Camera well
2, work well as 360 degree school bus and truck camera Lens
3, support 1/1.8’’ and 4MP M16 Security Camera
4, F1.0 largest aperture Night Vision Lens For Camera
5，we are professional Optical Lens Factory / Suppliers that can supply various kinds of
Glass Lens and Plastic Lens with M12, M16 and D14/M14 Mount type
Product Specification

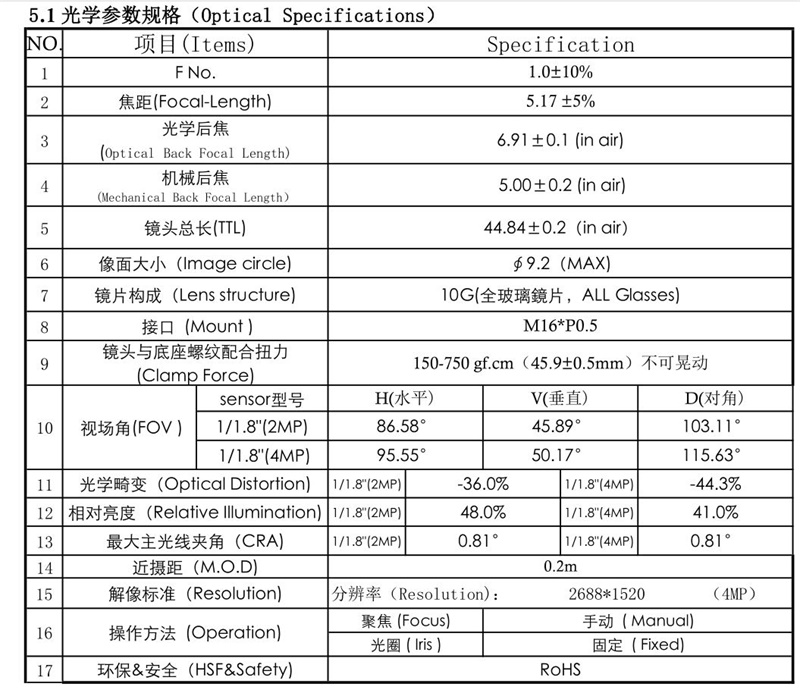

optical specification of 5.17mm 4MP m16 Night Vision Lens
1, Focal length: 5.17 ±5%
2, Aperture F/No: F0.9±10%
Black dark light insure good night Vision
3, Optical back focal length (OBFL): 6.91±0.1 (in air)
4. Mechanical back focal length (MBFL):5.00±0.2 (in air)
5. TTL: 44.84±0.2（in air）
6, Max image circle: ∮9.2（MAX)
7, Lens structure: 10G(ALL Glasses)
8, Mount type: M16*P0.5
9, Clamp Force: 150-750 gf.cm（45.9±0.5mm） do not shake
10, FOV (D/H/V)
1/1.8"(2MP) D103.11° / H 86.58° / V 45.89°
1/1.8"(4MP) D 115.63° / H 95.55° / V 50.17°
11, Optical Distortion 1/1.8"(2MP)-36.0% , 1/1.8"(4MP)-44.3%
12, Relative illumination 1/1.8"(2MP)48.0% , 1/1.8"(4MP)41.0%
13, CRA 1/1.8"(2MP)0.81°,1/1.8"(4MP)0.81°
14, M.O,D. 0.2 meter
15, MTF resolution 2688*1520 （4MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

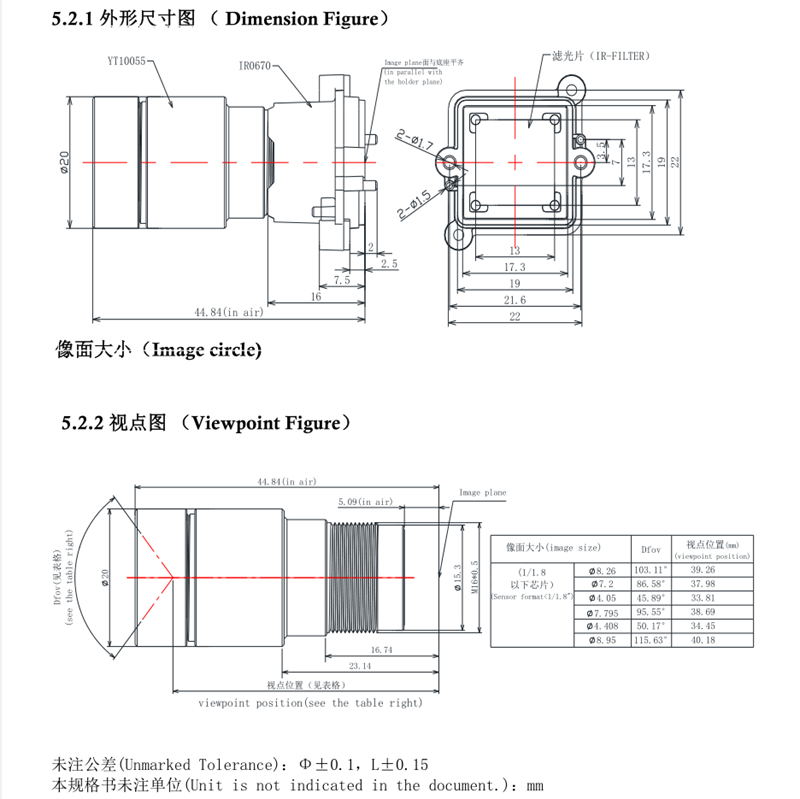

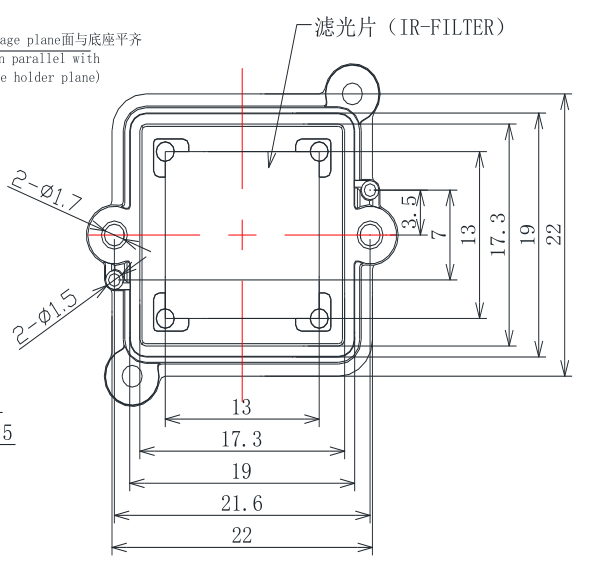

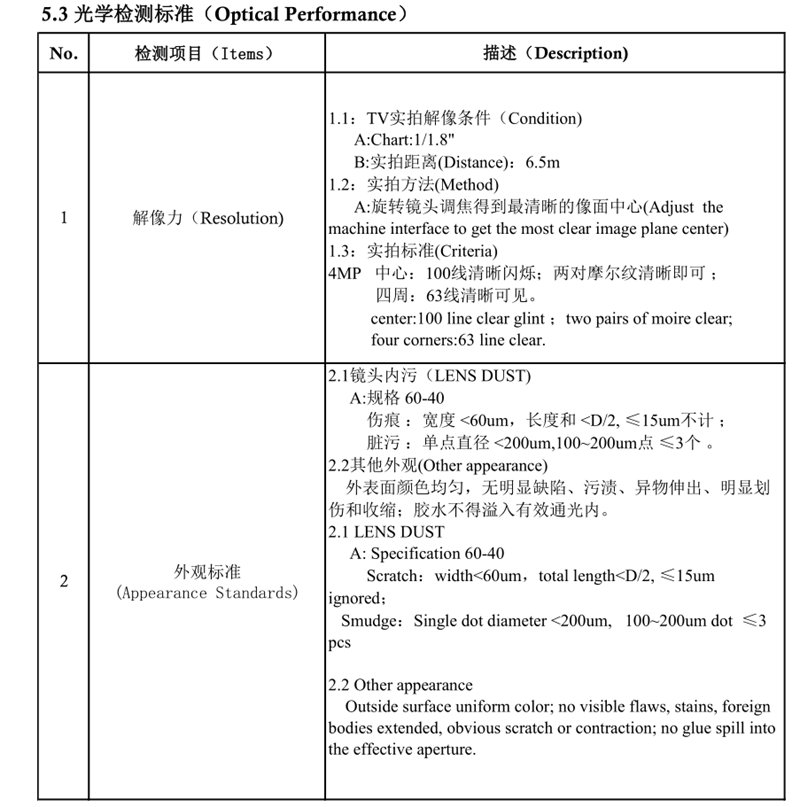

Technical Datasheet of 5mm M16 1/1.8'' Camera Lenses
Its Application
lens for IP network camera
lens for CCTV security night vision camera
lens for 360 school bus and truck camera
lens for automotive ADAS camera
lens for any camera good night vision needed
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
