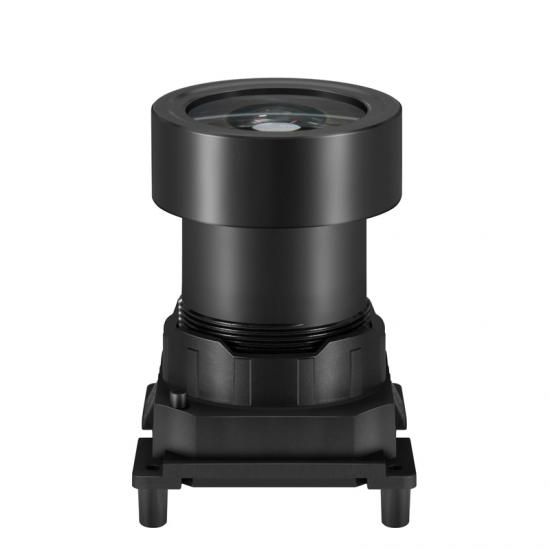

Product name：8.42mm F1.0 superstar light m16 lens mount camera lens 1/1.8'' 8MP 4K 3G4P (equivalent 6mm focal length)
Product Advantage:
1, work same FOV with 6mm Camera Lens cctv
2, Lens F1.0 black light work well as for truck camera night vision lens
3, 8 Megapixel CCTV Lenses low distortion, sharp image
4, Remove and correct unexpected spherical aberration by using asperical Lenses
5, 8mm Fixed Focal Length manual Focus support Large Format Camera Lens
Product Specification

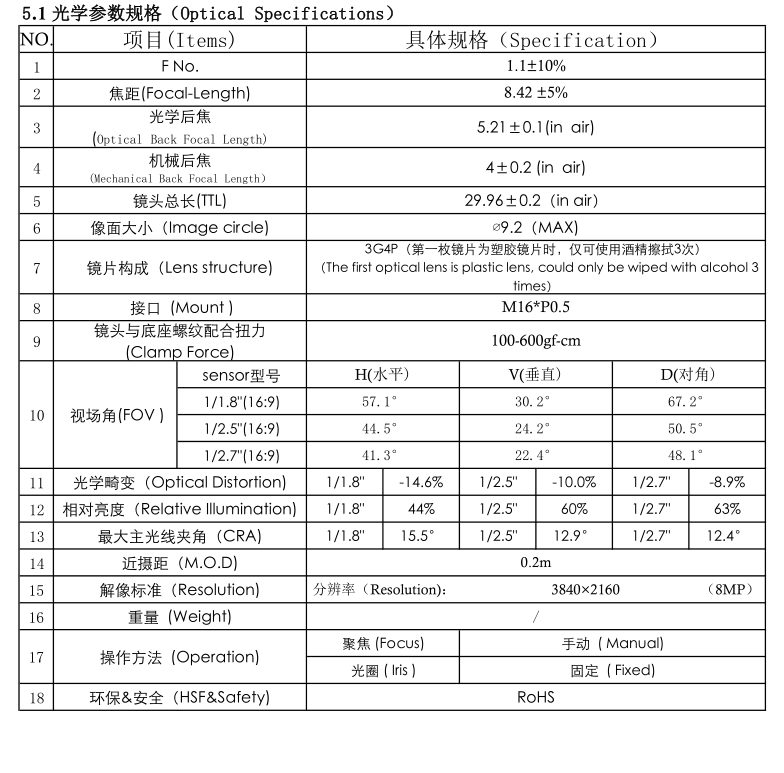

optical specification of 8.42mm m16 Camera Lens
1, Focal length: 8.42 ±5%
2, Aperture F/No: 1.0±10% Widest Aperture Lens
super starlight Black Light good Night Vision
3, Optical back focal length (OBFL): 5.21±0.1(in air)
4. Mechanical back focal length (MBFL):4±0.2 (in air)
5. TTL: 29.96±0.2（in air）
6, Max image circle: ∅9.2（MAX) 1/1.8’’ Large format Lens
7, Lens structure: 3G4P
8, Mount type: M16*P0.5 / M16 Lens mount
9, Clamp Force: 100-600gf-cm
10, FOV (D/H/V) :1/1.8"(16:9) D 67.2° /H 57.1° /V 30.2°
11, Optical Distortion: 1/1.8"-14.6% ,1/2.7"-8.9%
12, Relative illumination: 1/1.8"44% , 1/2.7"63%
13, CRA :1/1.8"15.5°1/2.7"12.4°
14, M.O,D.0.2 meter
15, MTF resolution 3840×2160 （8 Megapixels）
Ultra High Resolution Lens
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

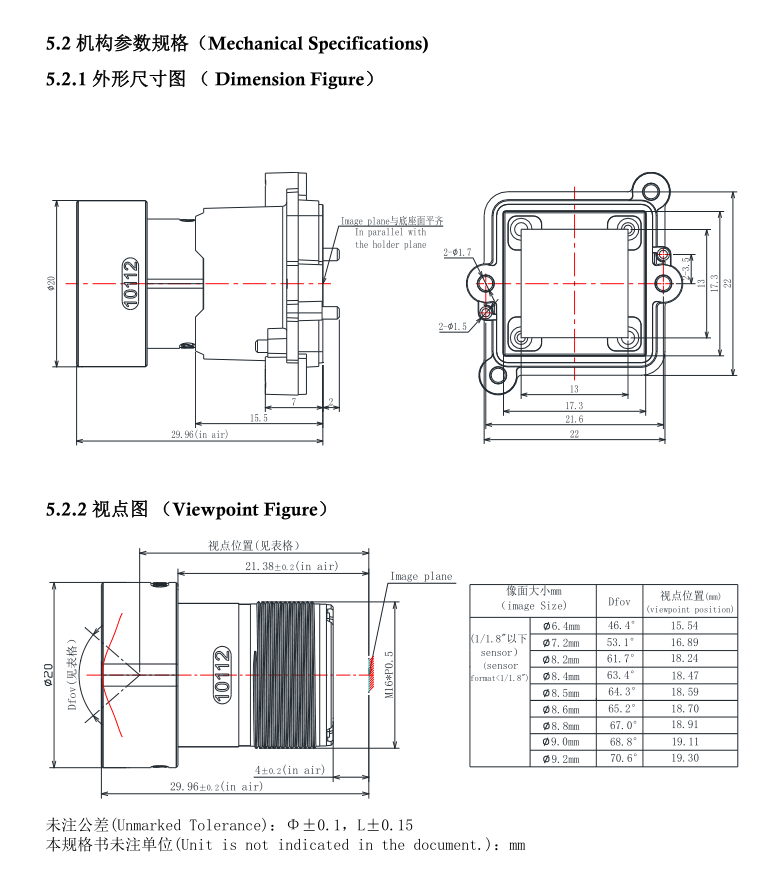

Keying technical data of 8.42mm Large Format CCTV Camera Lens
Application of this 8.42mm m16 lens
1, cctv security camera lens
2, truck camera night vision lens
3, smart home camera lens
4, Night vision Camera Lens
Custom-Made Lenses, Customized M16 Lens
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you！
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
