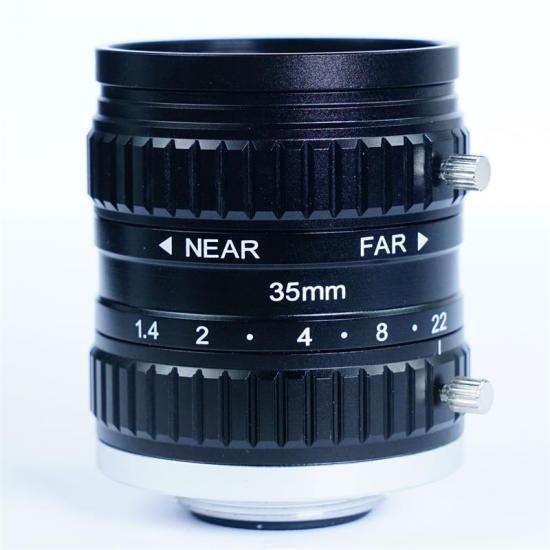

Product Name: 5MP 1 inch CMount Camera Lenses Starlight F1.4
Product advantage:
1,Multi-layer coating, with higher transmittance and effective suppression of stray light
2,Use high refractive index and low dispersion precious glass, high resolution imaging optics
3,Applied to 1" high pixel Industrial camera, CCTV Camera with C-Mount
4, C-Mount Camera Lenses are Widely used in Industrial Quality control cameras, Machine vision cameras, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics Industrial Surveillance and Security, CCTV Camera, PTZ Security Cameraetc
Product technical Specification of 35mm Compact C-Mount Lenses, china shenzhen
Product Model
NWA-1-35mm-5MP
Image Cmos Sensor Format
1 inch
Photo Resolution
5MP
Focal Length
35mm
Aperture
F1.4 to F22
FOV(D×H×V) 1 inch cmos
D25.7°/ H20.7°/ V15.6°
FOV(D×H×V) 2/3 inch cmos
D17.8°/ H14.3°/ V10.7°
TV Distortion 1 inch cmos
-0.27% y=8mm
TV Distortion 2/3 inch cmos
-0.06% y=5.5mm
Focusing Range MOD (Minimum Object Distance)
1.0m ~ ∞
Flange Distance
17.526㎜
Operation Mode- Focus
Manual with Lock
Operation Mode –Iris
Manual Variable
Operation Mode-zoom
Fixed
TTL
56.28mm
Mount type
C mount
Filter Thread
M39xP0.5

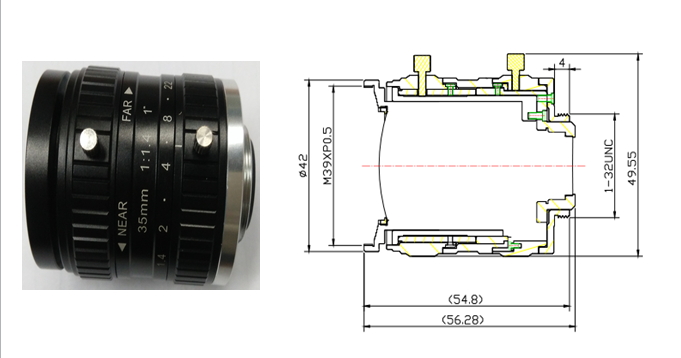

External Dimensions(mm):
∅42*L56mm
Structure
Full Glasses Lenses+Metal Barrel
Working temperature
-10℃～+50℃
Storage Temperature Range
-20℃～+60℃
Product Application of Camera Lenses With C-mount
Industrial cameras and lens applications
1. Industrial field: For example, when developing metal materials and resin materials, it is used to observe the direction and state of internal cracks when the material is impacted. It can be used to analyze the structure of the material when the material is destroyed, and the industrial online inspection of electronic products.
2. In the printing process of the packaging and label industry, subtle defects in high-speed printing can be detected in real time, which is convenient for taking measures to reduce losses. Common defects such as scratches, dust, missing prints, ink marks, wrinkles, etc. will be detected. Industrial cameras can be used for machine vision inspection to find printing problems, which can provide valuable information for production so that they can be taken during the production process. Measures to reduce losses.
3. In the intelligent transportation industry: speeding snapshots, red light electronic police, highway intersections, buckle tolls and other transportation industries have also made good use, and the performance of capturing high-speed moving objects is very good.
4. Machine vision, industrial monitoring and inspection, material inspection, PCB and SMT inspection, printing and packaging, textile inspection, four-wheel positioning, solar panel inspection, robot automation, motion dynamic monitoring, robot navigation and recognition
5. Factory production automation, especially for parts identification, sorting and inspection, measurement applications, logistics and quality assurance, pharmaceutical monitoring, food processing, inspection of continuous mesh materials, such as printing inspection, microscope application, product defect detection ( Video microscope), defect detection (machine vision system detection), size measurement (one-button measuring instrument and other equipment), face recognition, security,
6. Semiconductors, mechanical parts, scientific research image processing, electronics and automobiles, medical, military manufacturing,
Mechanical parts measurement, plastic parts measurement, glass and pharmaceutical container measurement, electronic component measurement, etc.
