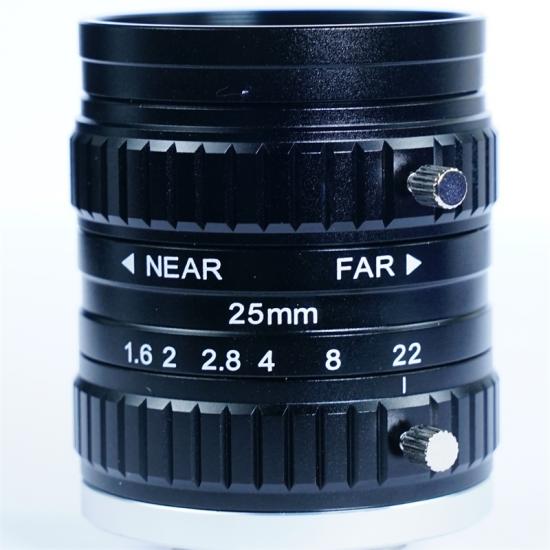

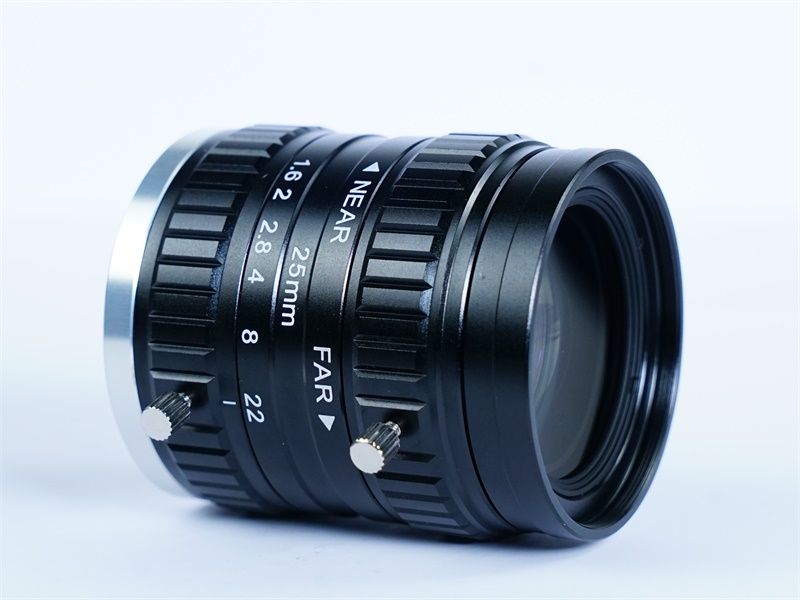

Product Name: 25mm 1 inch C Mount Industry Camera Lenses with Variable Manual Iris
Product advantage:
1,Manual Iris vary from F1.6 to F22, StarlightC-mount lens for Industrial use
2,Use high refractive index and low dispersion precious glass, high resolution imaging optics
3, Applied to 1" high pixel Industrial camera, Industry Foto Camera
4, 25mm 1 inch Lens Widely used in Industrial Quality control cameras, Machine vision system, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Optics, Industrial Surveillance and Security of course Commercial Security Camera etc
Product technical Specification of 25mm Industry Camera Lenses
|
Product Model |
NWA-1-25mm-5MP |
|
Image Cmos Sensor Format |
1 inch |
|
Photo Resolution |
5MP |
|
Focal Length |
25mm |
|
Aperture |
F1.6 to 22 Variable Iris |
|
FOV(D×H×V) 1 inch cmos |
D36.2°/ H29.0°/ V21.8° |
|
FOV(D×H×V) 2/3 inch cmos |
D25.0°/ H20.0°/ V15.0° |
|
TV Distortion 1 inch cmos |
-2.06% y=8mm |
|
TV Distortion 2/3 inch cmos |
-0.98% y=5.5mm |
|
Focusing Range MOD (Minimum Object Distance) |
1.0m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
56.31mm |
|
Mount type |
C mount |
|
Filter Thread |
M39xP0.5 |
|

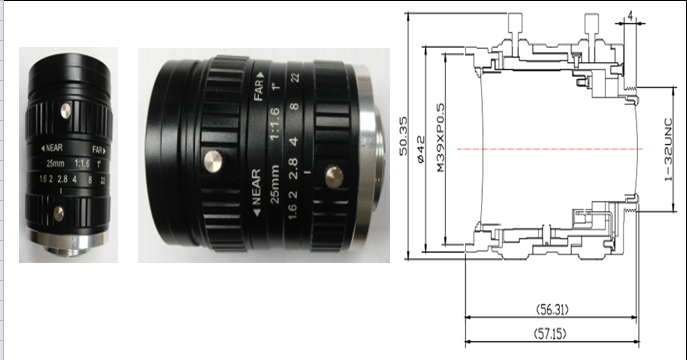

External Dimensions(mm): |
∅42*57mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application of of 25mm Industrial Lens
Application of machine vision lens, Factory Automation FA Lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors, biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
