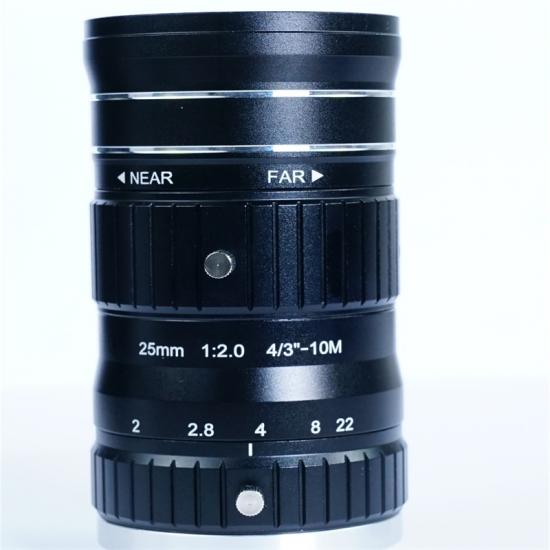

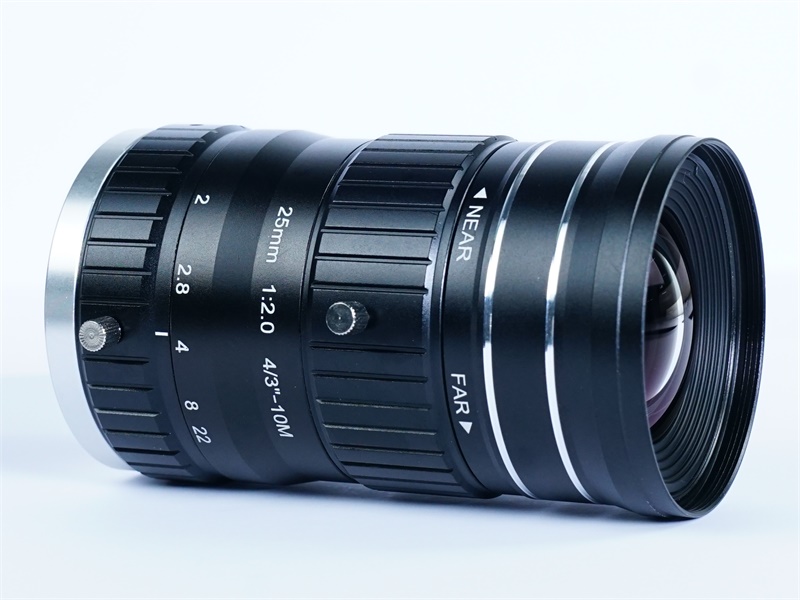

25mm 4/3''10MP Machine Vision Camera Lenses

Product Name: 25mm ITS Camera Lens, 10MP 4/3’’ Machine Vision Camera Lenses

Product advantage:

1,Use high refractive index and low dispersion precious glass, high resolution imaging optics

2,All glass + metal structure design, good high and low temperature resistance

3, Applied For 4/3" 4K/10megapixel Machine Vision camera and Industry Camera

4, Widely used in Industrial Quality control cameras, Machine vision cameras, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics Industrial Surveillance and Security etc

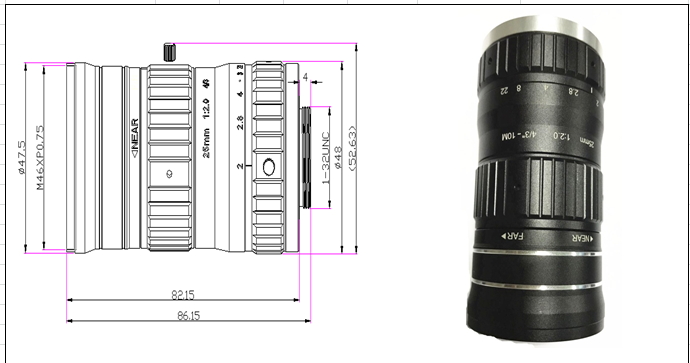

Product technical Specification of 25mm 4/3’’ Lens ITS 10MP

Product Application of 4/3’’ format 10MP Machine Vision Lens

Industrial lenses are widely used in industrial machine vision and image processing systems such as industrial identification, industrial inspection, industrial measurement, high-precision measurement, inspection, identification, industrial monitoring, instrumentation, microscopic imaging, machine vision, 3D scanning, biometrics, etc. It is widely used in semiconductor machinery parts, scientific research, image processing, electronics, automotive medical packaging, military manufacturing and other industries

Specific applications are as follows: Chip, wafer surface detection, one-dimensional code, two-dimensional code recognition; object surface scratches, text and other detection; metal surface, bearing, beverage cans engraved character detection; MARK point positioning; night/day safety equipment; solar panels; Semiconductor; wafer inspection; peripheral monitoring; machine vision; medical applications; biometric technology; aerial surveillance; food sorting. Application areas include surface and continuous logistics inspection, intelligent transportation systems and traffic law enforcement systems, text reading, mail sorting, measurement (2D/3D), medical imaging, biometrics, and aerospace and defense

How to Manufacture Industrial Camera Glass Lens?

1),Glass Lens Manufacturing Process

The technological process of making glass optical lenses is

1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning

-6 Inspection- 7 Film - 8 Coating

2)，Plastic Lens Manufacturing Process

1, Plastic Resin - 2, Injection Molding- 3, Cutting - 4, AR Coating

- 5, Lens Assembly- 6, Projection ( Resolution power test)- 7. QC- 8. Packing

3), Optical Lens Assembly ( After Glass lenses are ready ok)

The production process of lens assembly:

1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse

4),Complete Lenses production and Glass lens assembly process

1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing

- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing

why you can consider work with us?

1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate

2, Mostly Lens have 2 year quality warranty

3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime

include pre-sale, order, samples of course Custom-made Lenses

4, Every Quarter launch a few new Lens

5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop

6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,

Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,

M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc

7, Our sale team have more than 4 years lens sale experience and know them professionaly,

can communicate all problems freely and fastly
