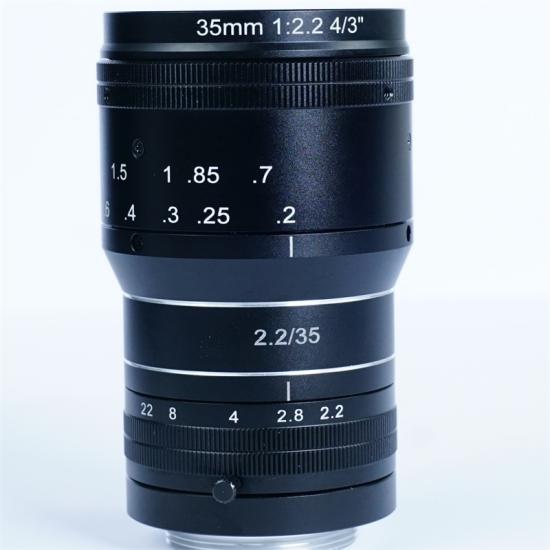

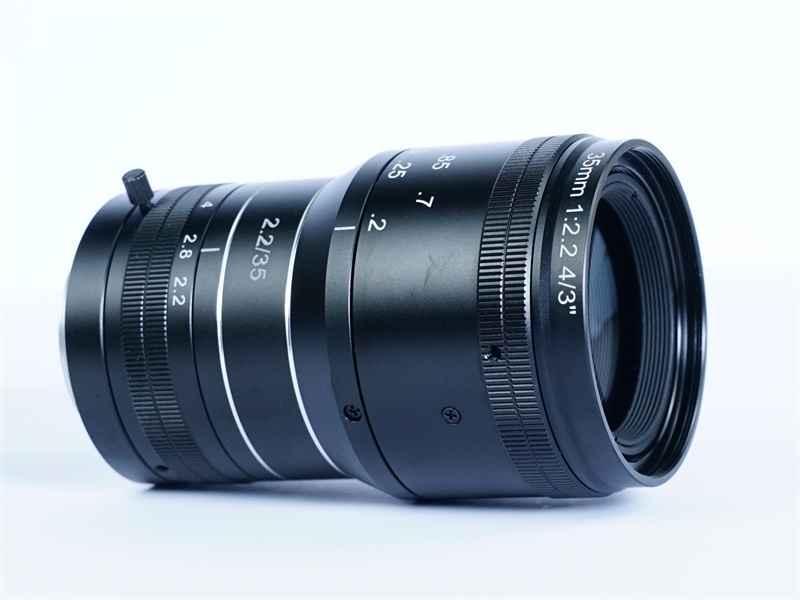

Product Name: 4K/12MP High Resolution 4/3’’ Format 35mm 12MP Industrial C-Mount Lenses
Product advantage:
1,Multi-layer coating, with higher transmittance and effective suppression of stray light
2,All glass + metal structure design, good high and low temperature resistance
3,Applied For 4/3" 4K/10MP/12megapixel Industrial camera, C-mount Machine Vision system
4, 12MP High Resolution C-Mount Lens Widely used in Industrial Quality control cameras, Machine vision cameras, Industry cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics Industrial Surveillance and Security etc
Product technical Specification of 35mm Industrial Camera Lenses C-Mount
|
Product Model |
NWA-43-12MP-35mm |
|
Image Cmos Sensor Format |
4/3 inch |
|
Photo Resolution |
12MP |
|
Focal Length |
35mm |
|
Aperture |
F2.2~22 |
|
FOV(D×H×V) 4/3 inch cmos |
D36.5°/ H30°/ V22.2° |
|
FOV(D×H×V) 1 inch cmos |
D26°/ H20.8°/ V15.7° |
|
TV Distortion 4/3 inch cmos |
-0.56%@y=11.5mm |
|
TV Distortion 1 inch cmos |
-0.43%@y=8mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.2m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
82.97mm |
|
Mount type |
C mount |
|
Filter Thread |
M37xP0.5 |
|

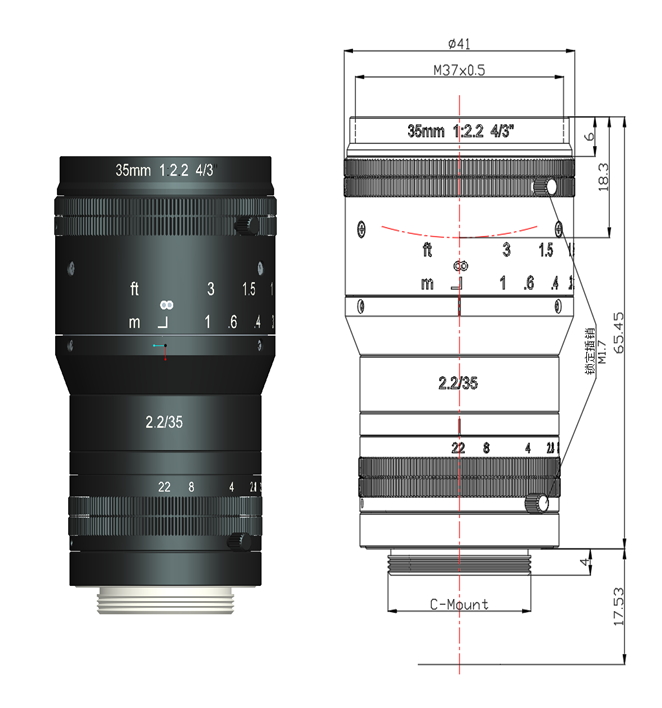

External Dimensions(mm): |
∅41*L69.45mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application of 35mm 12MP Lens
Widely multi-purpose use of industrial lenses
Industrial lenses are widely used in object positioning detection with extremely high reflectivity, such as: scratch detection on metal, glass, film, wafer and other surfaces, chip and silicon wafer damage detection, MARK point positioning, glass cutting machine, glue dispenser , SMT inspection, plate placement machine and other industrial precision alignment, positioning, parts confirmation, size measurement, industrial microscopy and other CCD visual alignment, measuring devices and other fields.
fixed-focus Industrial lenses are mainly used in the case of small changes in the field of view, similar to industrial assembly lines, fixed object scanning, traffic bayonet, etc. are widely used. Industrial lens can monitor and eliminate NG products on the production line; label digital high-speed contrast detection; detect the shape defects and dimensions of electronic components in the high-speed assembly line, detect the circuit board circuit and socket position, detect the amount of injection liquid, and print the batch number on the drug packaging , Production date and shelf life text inspection; food filling line online inspection, etc.
1. Mechanical parts measurement
2. Measurement of plastic parts
3. Measurement of glass and medicinal containers
4. Electronic component measurement
5. Particle measurement, measurement of high-precision color printing, semiconductor photomask measurement, filter control, blood analysis and cell number calculation
6. Visual positioning of mechanical equipment, semiconductor inspection, wafer, wafer inspection, dispensing positioning, liquid crystal display inspection, Camera Lenses for Machine Vision
Custom Made Industrial Camera Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
