3rd Third Brake Light Camera Backup For Mercedes Benz Sprinter

CMOS CVBS The 3rd Third Brake Light Camera For Benz Sprinter Van

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    Mercedes Benz Sprinter Backup Cameras
  • H.S.Code:

  • MTF Resolution:

    CMOS 480TVL

  • Product Detail

Product name:  The 3rd Third brake light Camera For Mercedes Benz Sprinter Van Vehicle, MB Crafter parking reversing backup camera IATF16949

Mercedes Sprinter Brake Light Backup Rear View Camera for Benz Sprinter/VW Crafter Van,Car 3rd Wide Angle Waterproof Night Vision Microphone Built-in Adjustable Lens Roof Mount Reverse Cam

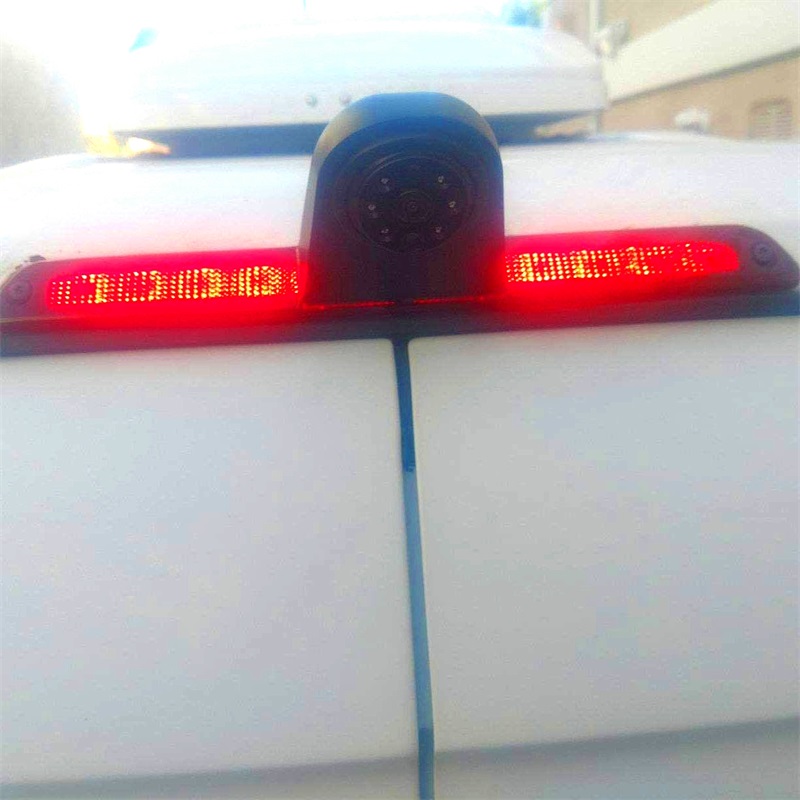

Third Brake Light Camera

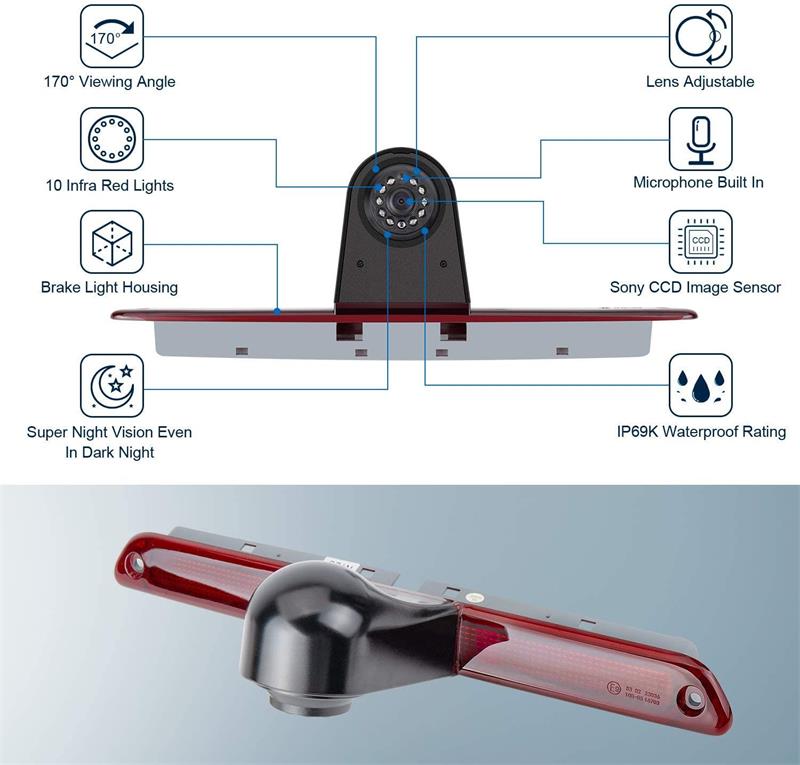

Product Feature of Brake Light Reversing Camera

1, Replacement for original brake light cover: this vehicle backup cameras special designed for transporter Mercedes Sprinter 2007-2018/VW Crafter Truck Vans 2007-2016. It comes without third brake light built-in,can replace your original brake light cover.

2, Excellent waterproof design: completely waterproof with an IP69K rating. This is actually the highest IP rating there is and means the cab cam camera will work fine in all weather conditions.

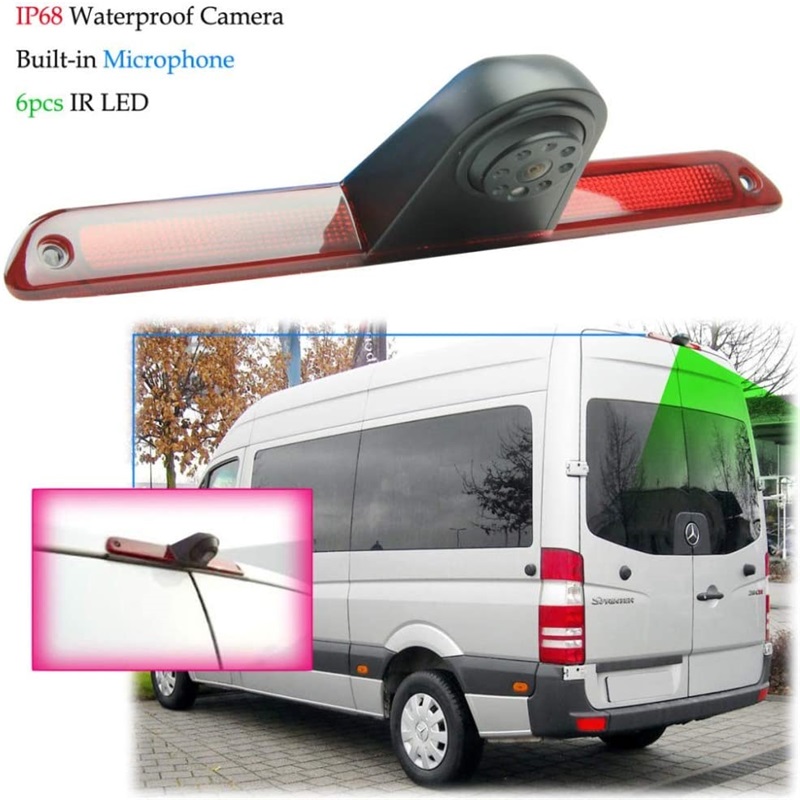

3. This is a vehicle backup camera comes with replacement brake light cover, it can mount on the roof of your Mercedes Benz Sprinter/VW Crafter Vans to replace your original brake light cover. This brake light backup camera comes with CCD 480 TVL 1/3 inch CCD image sensor, 6 layer glasses lens with an ultra wide 120°viewing angle, it can give you a vivid rearview image make it without blind spot. Built-in Microphone audio function, you can hear the voice behind your vehicle for security and communication. 10 pcs IR light give you a super excellent night vision performance in dark night, IP68K weatherproof rate not only can work well in the heavy storm but also the low temperature snowy weather

4. Good Quality Night Vision: with 10 infra-red lights, the Vans brake light rear view camera will be able to see up to 40ft even in complete darkness! This night vision will be even without any ambient light at all.

5. Install without HOLES,  Brakelight camera is a completely sealed unit incorporating the brake light and reversing camera so you just unscrew your current high level brake light cluster and screw this one in in its place. Connect the brake light to the wires currently powering it as normal and wire the camera to a reversing light feed to switch it on when you select reverse gear. The camera also incorporates reversing guidelines to help you reverse,Compact designed and easy to be installed

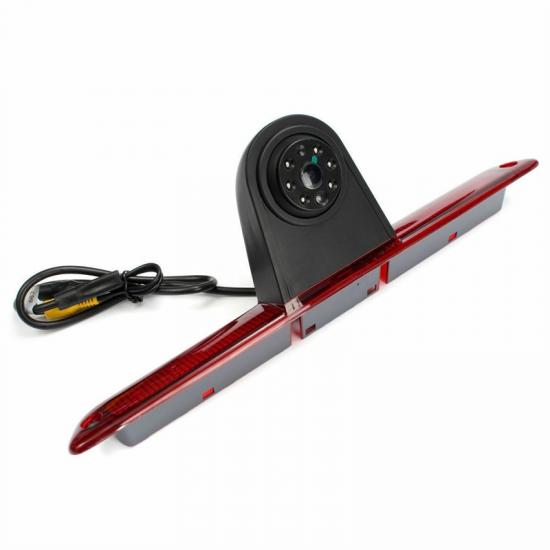

3rd Brake Light Camera

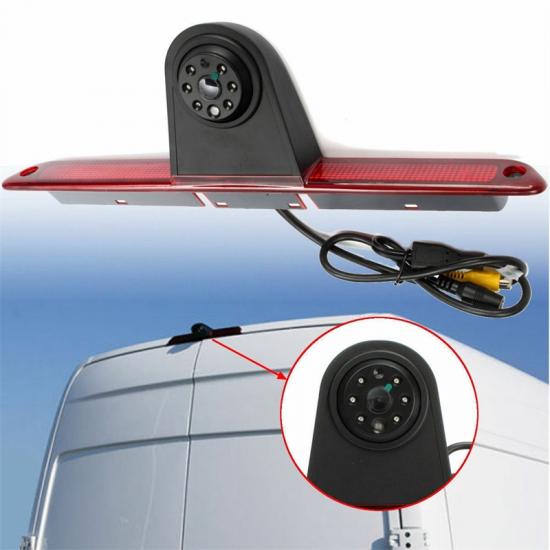

Benz Sprinter Brake Light Camera

Product Specification:

Sprinter Brake Light Backup Camera Compatible for BENZ Sprinter/Crafter Vans LED Light Parking

Sprinter 3rd Brake Stop + RearView Camera for Mercedes 2007 - 2018

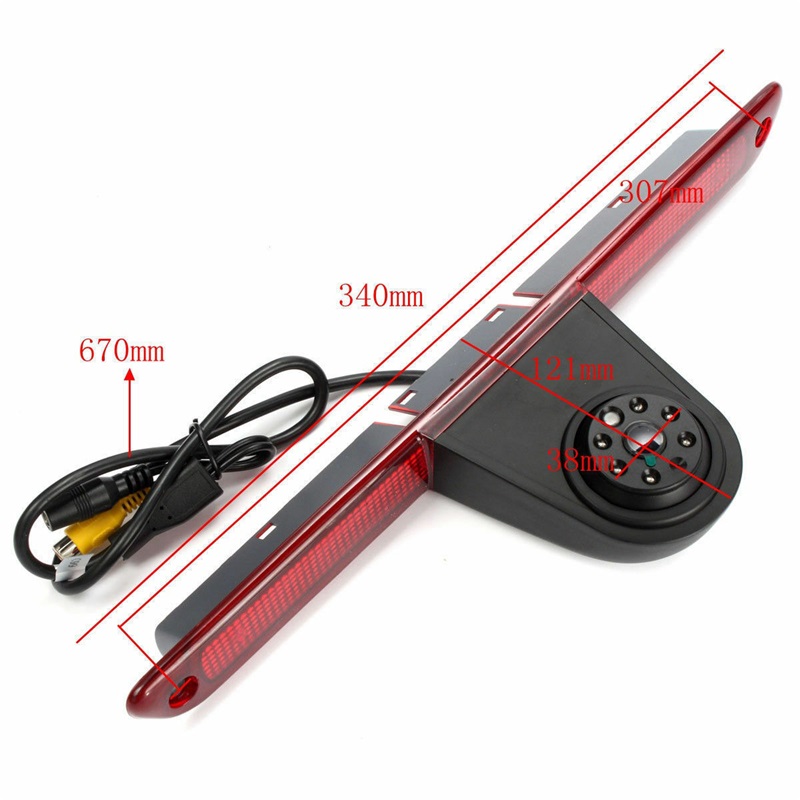

Sprinter Brake Light Camera Specification

Item Name

3rd Third Brake Light Backup Camera For Sprinter

Image sensors:

1/3"  CMOS Sensor

TV System:

NTSC default & PAL available

Minimum illumination:

0.1Lux(LED ON)

White Balance:


Video Color:


Waterproof Class:


Effective Pixels:

628 x 586 Pixels


480TV lines

Interface Video Output:

RCA (CVBS), 1.0Vp-p.75

Electronic Shutter:


S/N ratio:

Better Than 52db

Lens Angle:


Operation Temperature:

31°C~+72°C RH95%

Storage Temperature:

—40°C~+100°C  RH95%

Working Power (DCV):


Current consumption:

90mA Max


DC 12V

Video cable is RCA connector

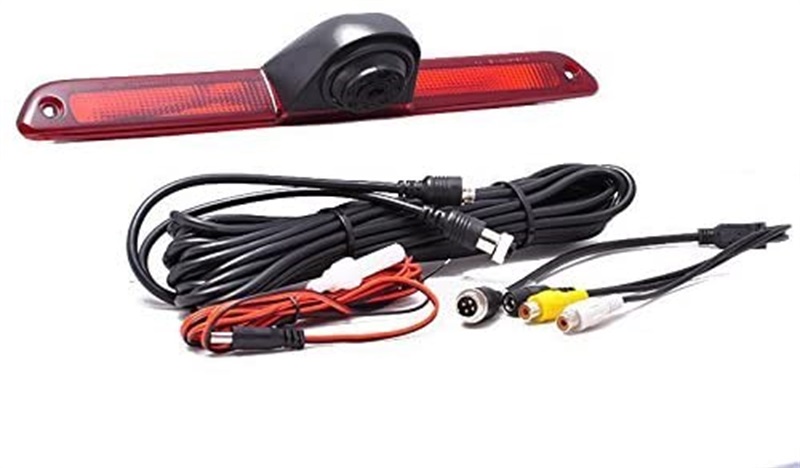

MB Sprinter camera accessories
Product Application:

This 3rd Third Brake light backup camera is apply to these vehicles:

(1)MB Transporter Truck Mercedes benz Sprinter (W906) from 04/2006

(2)Transporter Truck Dodge Sprinter Mercedes benz Sprinter (W906) 2006-2018

(3)Freightliner sprinter /Dodge Sprinter 1500 2500 3500 cargo van 2006-2018

(4)MB Transporter Mercedes Sprinter 324H 524H

(5)VW Crafter Mercedes benz Sprinter (W906) 2006-2018

(6)VW Crafter 136 LWB (2EC1 / 2EC2 / 2EKE1 / 2EKE2 / 2EKZ) 2006-2017

Dodge Bremsleuchte/Bremslicht/CGstenwagen Einparkhilfe/Wohnmobil/Transporter

Sprinter Brake Light Backup Cameras

We have also other the 3rd Third brake light reverse camera for following famous brands car, please contact us to get more

China Brake Light Reversing Camera for car brands
