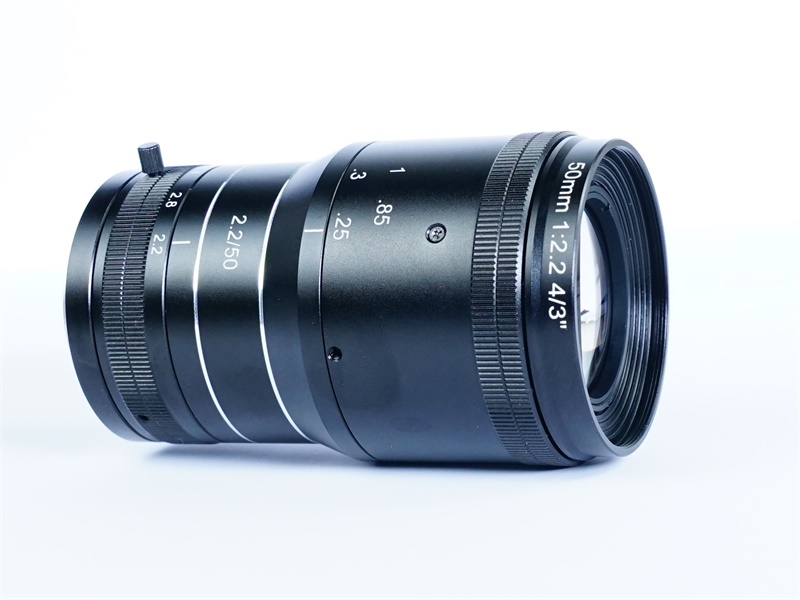

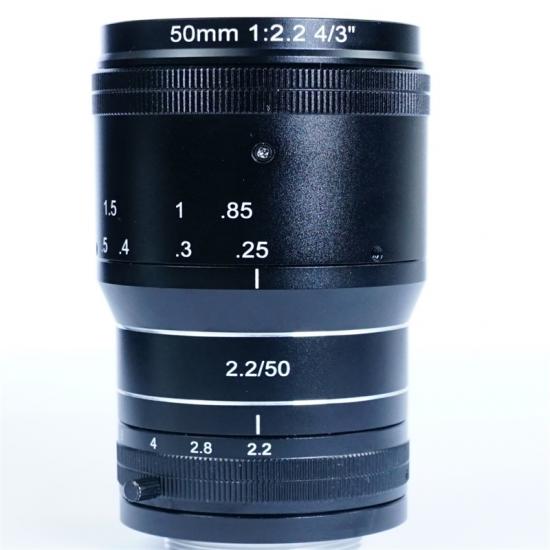

Product Name: Ultra 4K 50mm 4/3’’ Format Industrial Lenses zero distortion
Product advantage:
1，Use high refractive index and low dispersion precious glass, high resolution imaging optics
2, All glass + metal structure design, good high and low temperature resistance
3, Applied For 4/3" 4K/5MP/10MP/12megapixel Industrial camera
4, 4/3’’ Industrial Lenses Widely used in Industrial Quality control cameras, Machine vision Applications, Industry video cameras for inspection and imaging processing, Industry Microscope Camera, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics Industrial Surveillance and Security etc
Product technical Specification of 50mm Industrial Lenses
|
Product Model |
NWA-43-12MP-50mm |
|
Image Cmos Sensor Format |
4/3" |
|
Photo Resolution |
12M |
|
Focal Length |
50mm |
|
Aperture |
F2.2~22 |
|
FOV(D×H×V) 4/3 inch cmos |
D26°/ H20.4°/ V15.7° |
|
FOV(D×H×V) 1 inch Cmos |
D18.2°/ H14.6°/ V11° |
|
TV Distortion 4/3 inch cmos |
-0.15%@y=11.5mm |
|
TV Distortion 1 inch cmos |
-0.05%@y=8mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.25m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
86.11mm |
|
Mount type |
C mount |
|
Filter Thread |
M37xP0.5 |
|

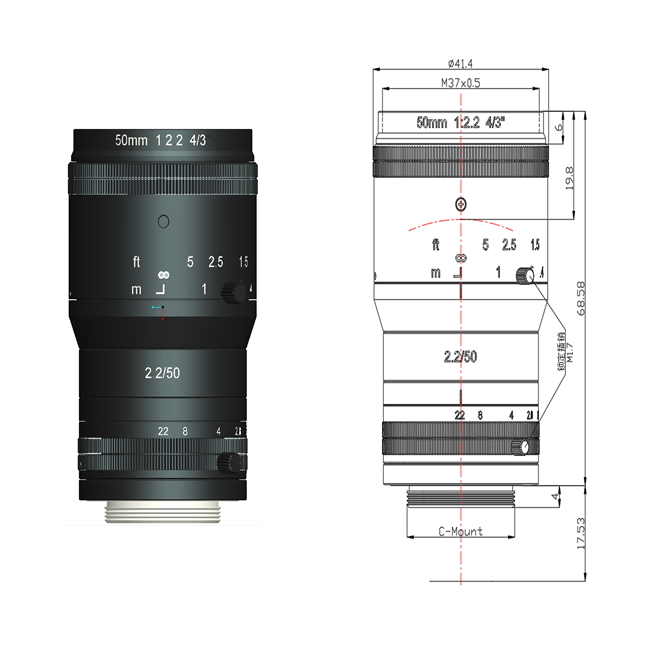

External Dimensions(mm): |
∅41.4*L72.58mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application:
4/3’’ large format 50mm 12MP Lenses for Machine Vision Applications
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors,
biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China,Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera, their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。
welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens, FA Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly,
can communicate all problems freely and fastly
