700TVL Sharp CCD CVBS Rearview Camera For Cars and Bus

700TVL, Analog CVBS Signal, Sharp CCD,  IP67 waterproof, Side/rearview View Camera, plastic case

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Product weight:

  • Shipping port:

  • Lead Time:

    7-10 days
  • H.S.Code:

  • MTF Resolution:


  • Product Detail

Product name:

12V CVBS Car Backup Camera with Waterproof Infrared Night Vision Rotatable Bracket For Trucks RV Bus motorhome

CVBS Car Camera

Product Feature:

1. Using imported Japanese Sharp CCD chips, the image color is high-definition, more lifelike。The video signal is traditional analog Signal CVBS, but its resolution reach high 700TVL

2, Digital night vision function, automatic exposure compensation when the light is insufficient, you can clearly see the road behind car

3. With electronic ruler, the scale ruler is displayed on the display, you can see the approximate distance between the rear object and the rear of the car

4. The video line is connected to the monitor, the power line is connected to the power of the reverse light, the video line number is automatically switched when the reverse gear is engaged, and it is specially designed according to the size of the license plate light or the tail box handle. It has good concealment and is perfectly integrated with the body and is not easy to be exposed

5. The product is waterproof, moisture-proof, anti-fog, shock-proof, anti-voltage shock and high temperature resistance

6. The reversing camera can be connected to vehicle display devices, including vehicle monitors, vehicle DVDs, rearview mirror displays, portable GPS navigation, etc. It is convenient to monitor the surrounding ring mirror in all directions when reversing, with a wider field of view and easier reversing. Green Environmentally friendly products, energy saving, low power consumption

7. Can be used as a front, side or rear view camera with night vision function

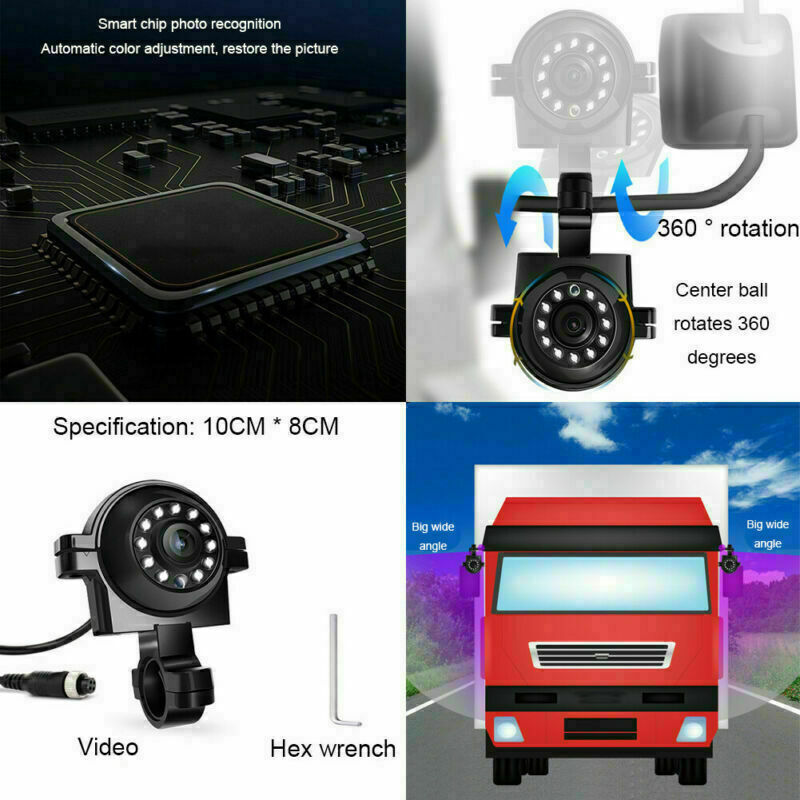

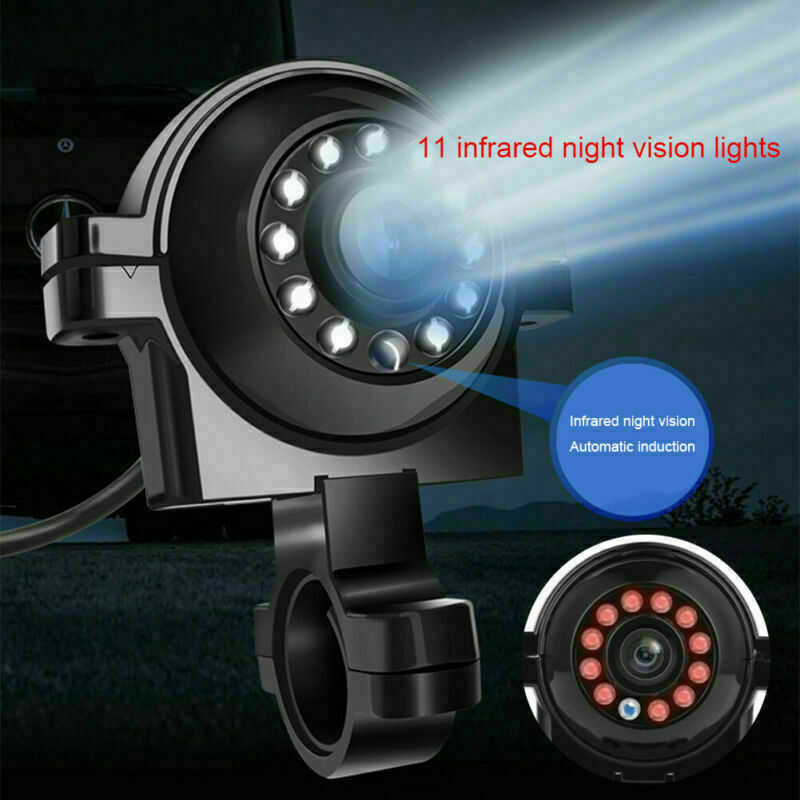

Thanks to the universal pipe clamp attachment, the camera is suitable as a front and side camera (eg on the outside mirror). With activated mirroring it can also be used as a rear view camera . Thanks to the night vision system with 9 infrared LEDs, you can keep an eye on everything important around the vehicle, even in the dark.

Car Backup Camera CVBS

Product Specification of  CVBS Car Camera 700TVL

Item name


Product Name

CVBS Car rearview camera

Image Sensor

1/3'' sharp CCD sensor

TV System

PAL/NTSC (Option)

Light Compensation

Infrared 12pcs IR white lights on

Horizontal Resolution

700 TVL

Lens View Angle


Waterproof Grade


Sync. System


Electronic Shutter


Image Frame Rate


Minimum Illumination

0.001 Lux / F1.2



White Balance


Backlight Compensation


Signal Output

CVBS Analog signal

Video Output

1.0V P-P/75Ω


RCA or 4Pin (Option)      RCA or 4Pin (Option)

Signal to Noise Ratio


Mirror/Normal Image Adjustable


Parking Line

Triple Colors (Option),Adjustable

Power Supply

DC12V or 9~36V(Wide Voltage Optional)

Current Consumption




Operating Temperature

20 ~ 75

Storage Temperature

30 ~ 85

Light qty

11 Light

Net weight


Product Size


Product packaging

Color box,100*95*90mm

cover material

Plastic (Metal custom-made)

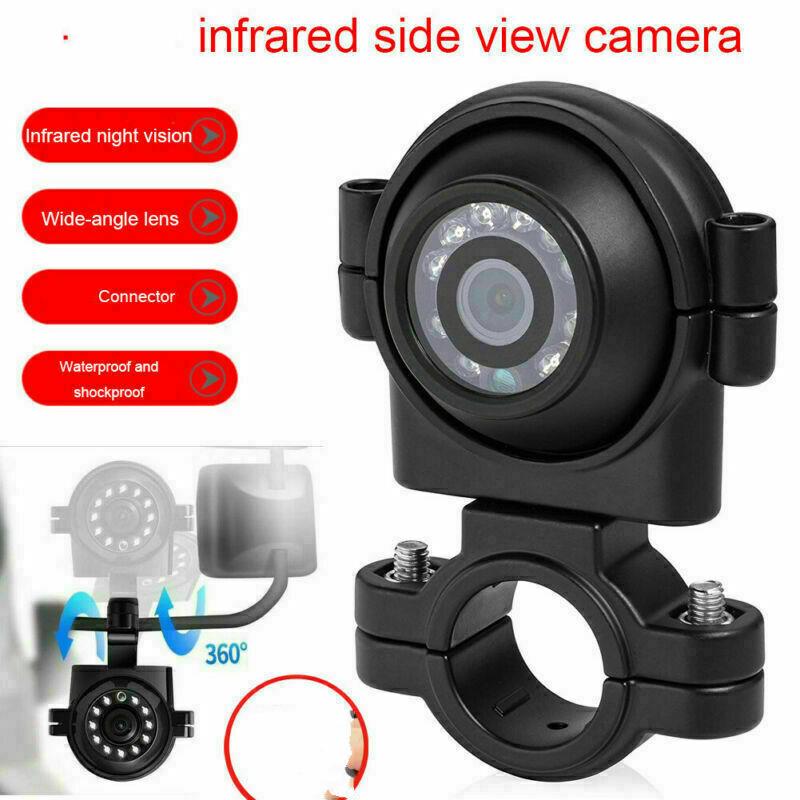

Side View Camera CVBS

Note & Remarks:

This CVBS Car Camera are working Usable with all monitors, which have an RCA video input, note it do not work with newest AHD Monitor. This high-resolution camera is ideally suited for outdoor use as a monitoring system due to the compact and robust design. The video signal is transmitted via a video cinch cable and is therefore compatible with most monitors or navigation systems (a RCA / RCA input must be available or can be adapted).

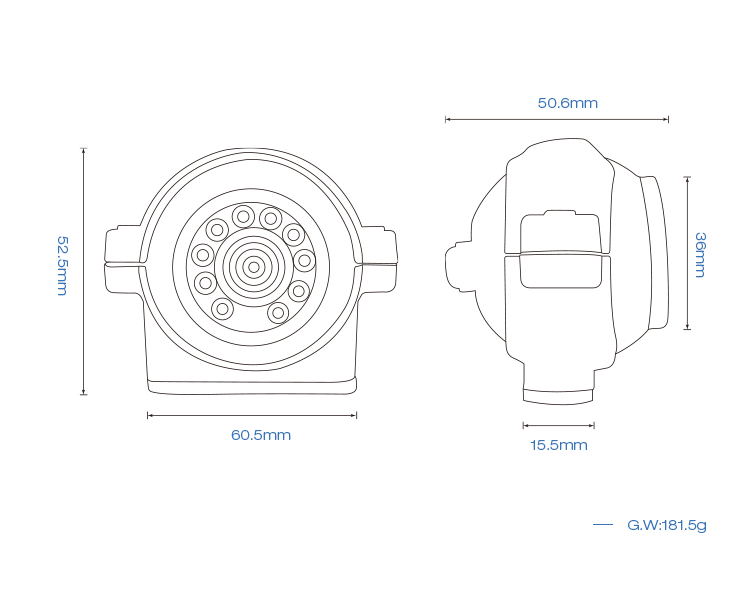

CVBS Side View Camera Diagram

Installation steps of the Backup Camera:

1. First, lead the power cord of the reversing image camera to the car charger, and lead the wire connecting the camera from the rear seat to the rear of the car.

2. Then use a screwdriver to remove the decorative liner of the tail box.

3. Then choose the best position to install the reversing camera and fix it, usually at the position of the license plate light.

4. Finally, directly connect the cable of the camera to the positive terminal of the tail light. Of course, we have to restore all the disassembled parts.

Product Application

The robust universal CVBS Vehicle camera are used on Bus, Cars, trucks, trailers, transporters, tractors and much more.

CCD CVBS Rearview Camera can work and apply for Farm Tractor,Agricultural Machinery,Heavy Equipment、Maritime Ship、Trucks、Fork-lifts , Security Escort, Airport Vehicles,Electric forklift, Sightseeing Cars, Golf , Airport Baggage Van, Horse Trailer ,Crane, RV, Commercial Truck, Bus, Delivery van Vehicle,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment,HVG、Municipal Vehicle,Tube Train, Tube Transporter, Metro, Subway, Park Train, Bullet Train,Passenger Bus, School Bus, City Bus, Travel bus, Coach bus, Tourist bus, Traffic patrol cars

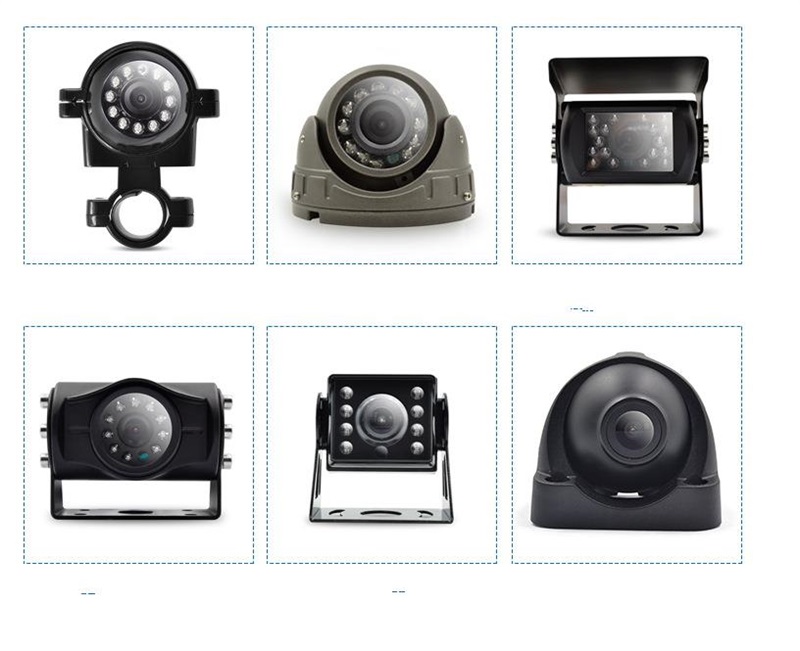

Our other Car rearview Camera with CVBS or AHD video singal for your selection

china backup cameras for trucks
