4 Channels 9inch Truck AHD Vehicle Moniotr With DVR Recording

HD Resolution, 4 channels video output, with DVR video recording Function,  AHD720P, 9-36V

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    4 channels AHD 720P Video output with DVR recording
  • H.S.Code:


  • Product Detail

Product Name:  4 Way 9inch Truck DVR Monitor For All Semi Truck and Pickup Trucks

Product Specification

Item Name: 4 channels AHD DVR Monitor For Semi Truck and Commercial Vehicles

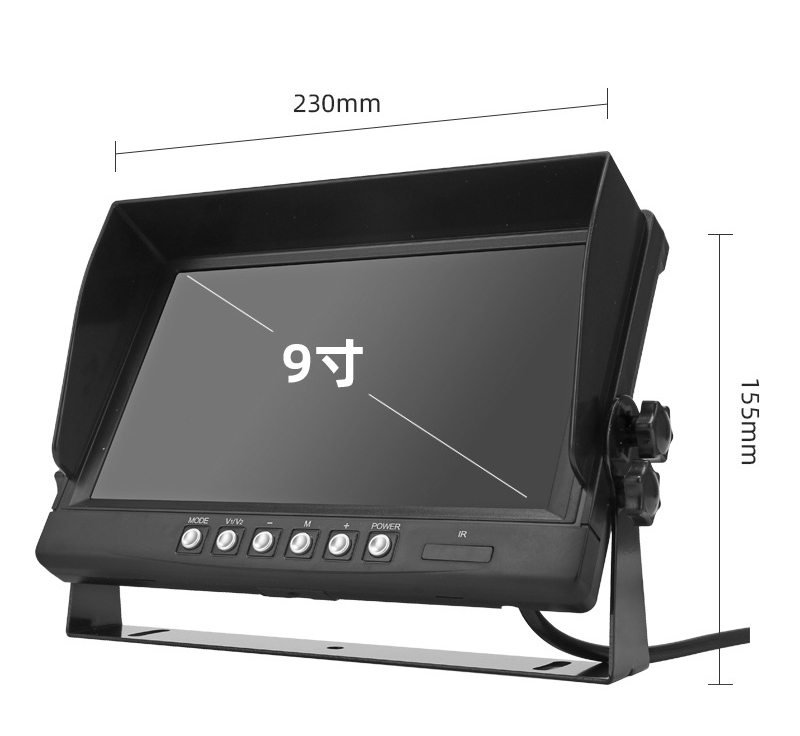

Size: 230*155mm

Resolution: 1024*600

Display ratio:  16:9, 4:3

Image format: 720P/1080P optional

Contrast  350:1

Video Type: PAL / NTSC

Video Input: 4channels Video input ( Front/Rear/left and Right video from their cameras)

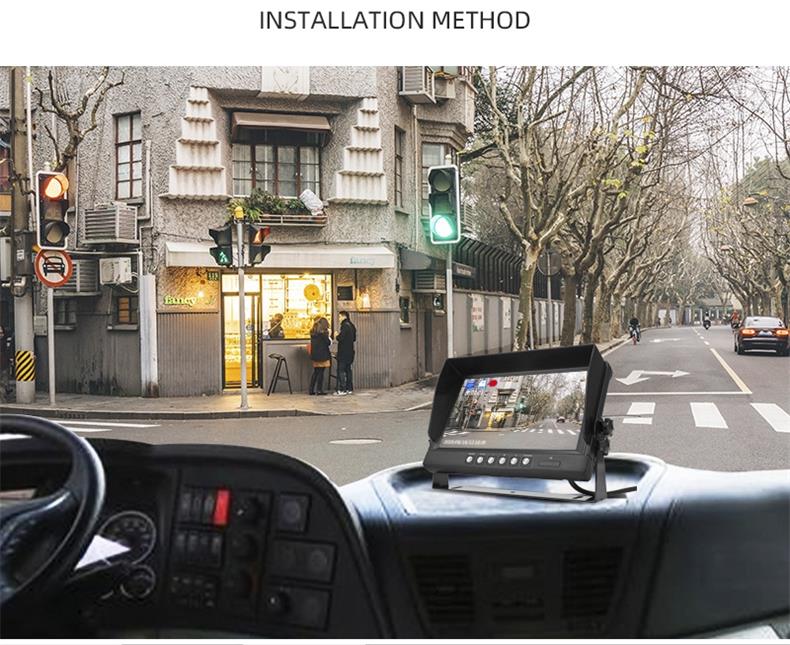

Installment mode: Bracket

4CH Vehicle Camera Monitor

4 Channels Truck Monitor

Voltage: 9-36V

Power: about 7W

Brightness: 300CD/M2

Language: English/Chinese

Control: Remote Controller

Unique Function: 4 channels video Vehicle DVR recording function and support MAX 256G

video local storage inside DVR of course video playback

LCD display: 9 inch TFT LCD screen 1024X 600

Car key signal: 9V open, 2V below close

Video format: H.264 compressed AVI format

Audio stream: 8KB/S

Power supply voltage range: 9V-36V

Video streaming standard: ISO 14496-10

Video input: CH 1-CH 4 interface, can support AHD or CVBS signal

Data storage: SD card storage, can support 32GB, 64GB, 128GB, 256GB. It can also support 1TB-2TB SD cards.

Machine working temperature: The machine can work stably for a long time in an environment of -40 to 80 degrees

Working environment temperature: working for a long time, the surface temperature of the machine does not exceed 50 degrees

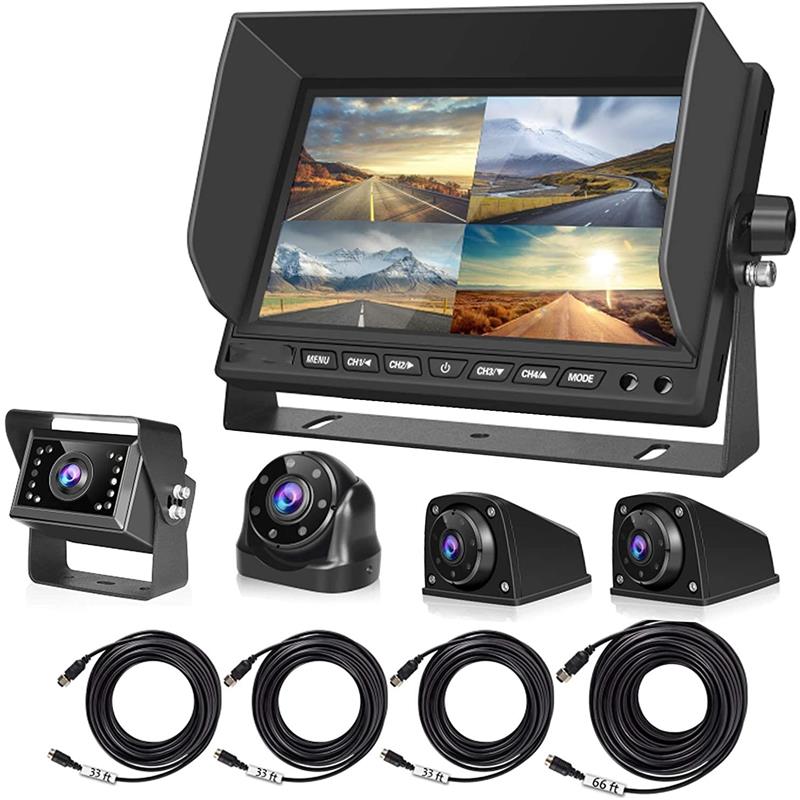

This 4 Channels Truck Monitor with DVR recording Function can work and connect with 4pcs AHD Truck Cameras then built up one complete Semi Truck Camera Systems similar

as following, then they can record everything during driving to insure more safe for truck driver

9inch AHD Vehicle DVR Monitor

Semi Truck Camera Systems

Product Application

This 4 channels Truck Monitor can Work and apply For Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper

9inch Truck DVR Monitor

This 4CH Vehicle Camera Monitor work For Heavy Equipment,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck,Bulldozer, Vibratory Soil Compactor,Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck

9 inch DVR Monitor
