Product name: 3D 4CH AHD720p/1080P 360 Degree Birds View Camera System for Bus/Truck/Pickup Trucks and other Commercial Vehicles
Product Features:

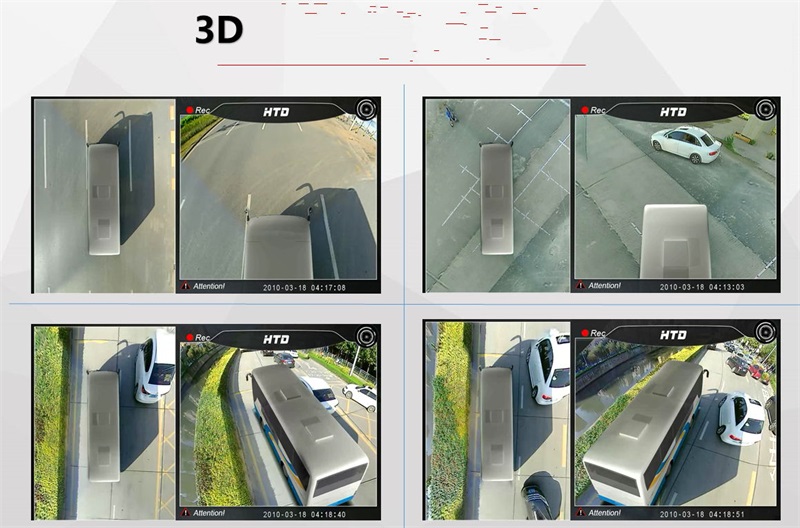

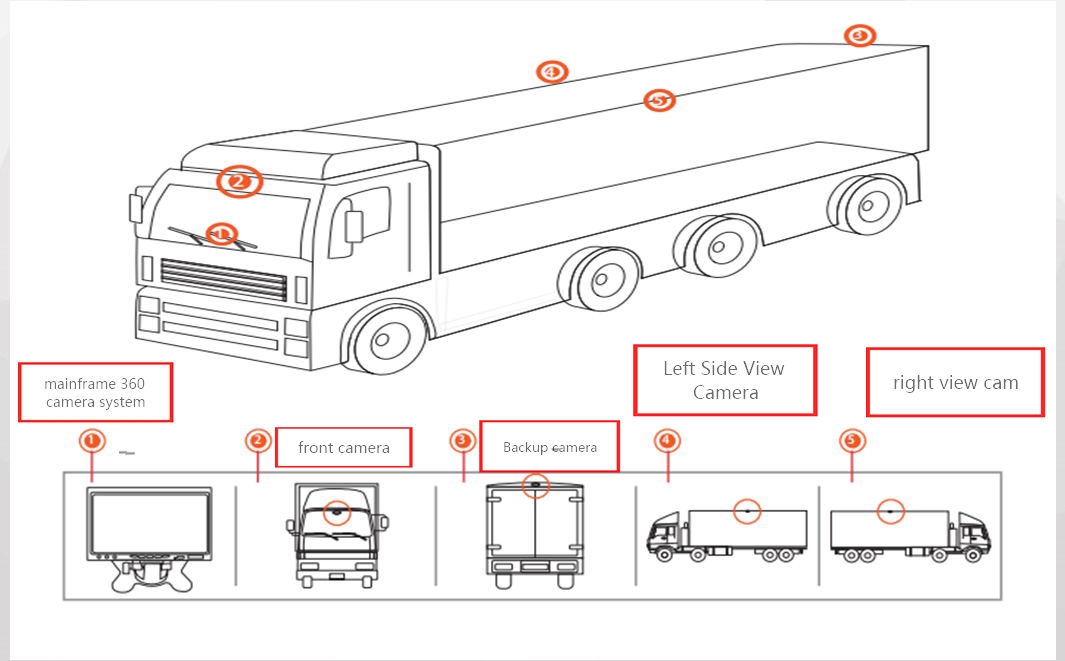

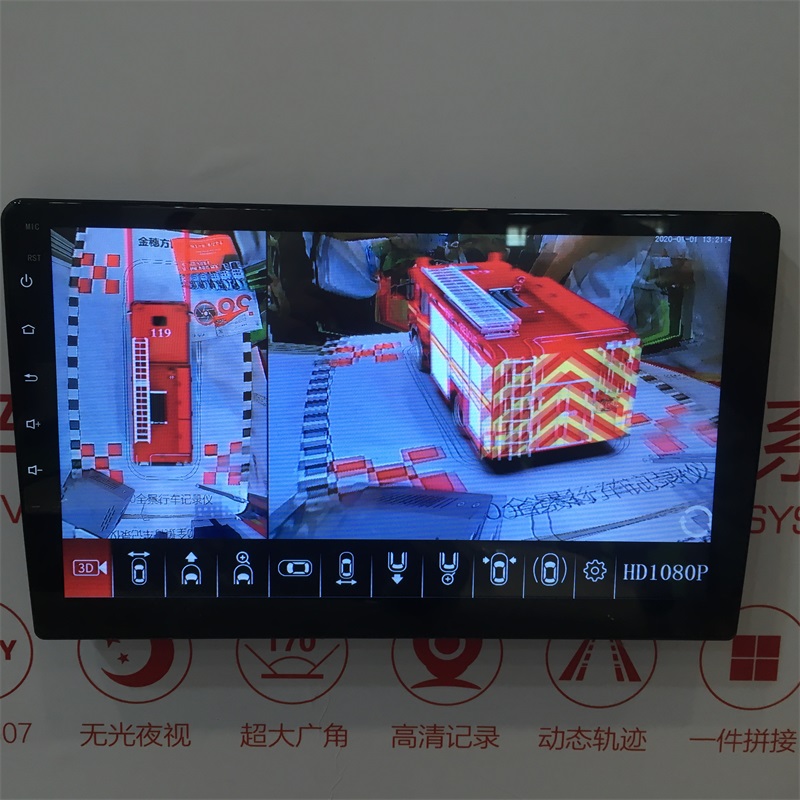

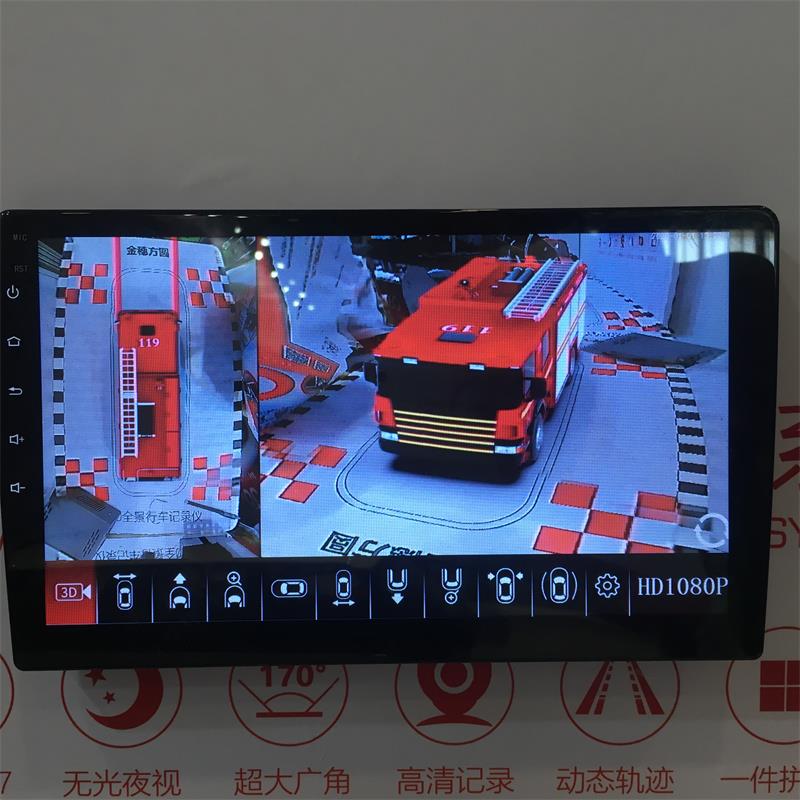

The 360 Surround View Camera System For Truck Vehicles uses 4 ultra-wide-angle fisheye lenses installed on the front, rear, left, and right of the car to collect images around the vehicle. After advanced algorithm synthesis processing, it forms a 360-degree panoramic bird’s eye view of the car’s surroundings. The 3D field of view picture on the right is transmitted to the DVD display screen in real time through AV signal/AHD signal/VGA signal.
The image formation is instant and continuous, and is transmitted to the display screen in real time, presenting an instant panoramic image to the driver in the car. Through the three-dimensional bird's-eye view of the driving assistance system, the driver can intuitively see the position of the vehicle and the obstacles around the vehicle while sitting in the car, and calmly control the vehicle into position or pass through complex roads, effectively reducing scratches, collisions, The occurrence of traffic accidents such as sinking.
Features of 3D 360 Birds Eye View System For Vehicle

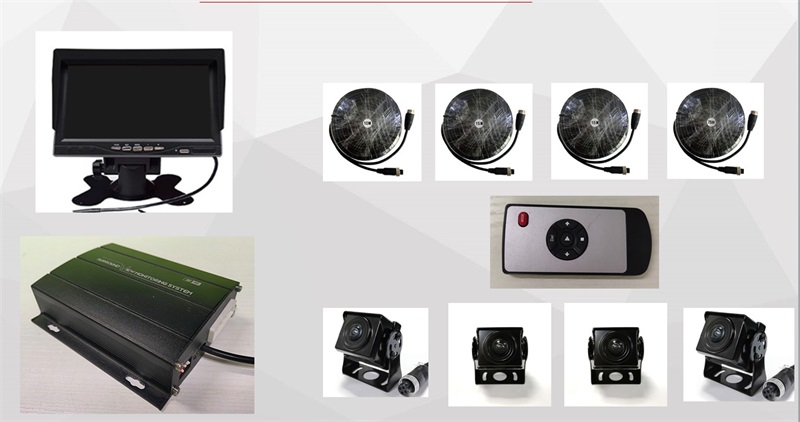

1. Four 220° ultra-wide-angle fisheye lenses, with a clear view of the blind areas around the body
2. Give dual-core ARM and FPGA intelligent hardware to achieve efficient, high-precision seamless integration
3. With 4 real-time brightness design engine, excellent brightness automatic balance function
4.3D de-interlacing technology and 3D static drying technology, support TF card or USB recording function
5. Low-cost calibration, intelligent 2D, 3D mode self-switching
6.360-degree intelligent reversing assistance, 10--20 meters stereoscopic viewing angle
7. Four channels of high-definition 720 video, real-time escort for you
Product Specifications:
|
Item Name |
360 Degree Surround View Monitoring System |
|
Video Interface |
BMW Mini connector |
|
Input / Output Impedance |
75Ω |
|
Amplitude Typical |
1Vpp, 1.2Vpp Maximum |
|
Bandwidth |
27M |
|
Sampling Frequency |
74.25MHZ |
|
Resolution |
1280X720@30fps, 1920*1080P optional |
|
Signal standard |
AHD1.3(Nextchip) |
|
SNR |
70dB |
|
High beam |
Optional |
|
Left/Right Turning Blinker |
Yes |
|
Reversing Lamp |
Yes |
|
BM250E |
Bosch |
|
Algorithm |
H.264 Baseline@L3.1 |
|
Resolution |
1080p@25fps |
|
Bitrates |
5Mbps,3Gbyte/Hour |
|
Recording Media |
USB Disk(High Priority)/TF |
|
TF CARD |
32G SDIO3.0/SDIO2.0 |
|
USB Disk |
Max 128G USB2.0 |
|
4-CH DVR + SVM mode |
350mA |
|
4-CH DVR mode |
600mA |
|
Sleep Mode |
<10mA |
|
Dimension |

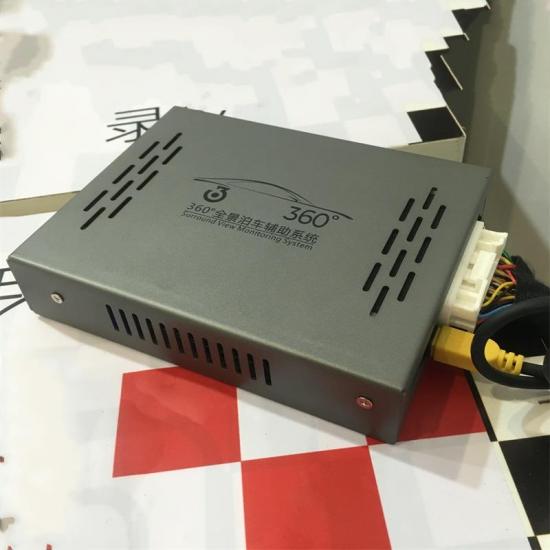

123*81*25mm(Host Metal box) |
|
Waterproof rating |
IP68 |
|
Normal Working |
-30ºC~+85ºC |
|
Storage |
-40ºC~+105ºC |
|
Relative Humidity |
0~95% |
|
Working Voltage |
9.5V~36V |
Product Application of Vehicle 360 Bird View Panorama System
1, 4 channels 360 Degree Surround View Security System work For Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper
2, Vehicle Panorama Camera System apply for Heavy Equipment,Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck,Bulldozer, Vibratory Soil Compactor,Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck
3, You can also install this semi truck camera systems on following trucks or heavy duty: Peterbilt，Kenworth， Mack，Weststar International Trucks，Freightliner，Sterling, Navistar, Ford Truck and other heavy Duty, Scania, DAF, MAN, Hino, Benz Truck, Isuzu, Iveco, Renault Trucks,TATRA and Volvo Commercial trucks and Semi-trucks
